EPRO PR6423/010-040-CN Replacement for PR6423 Series

Product Overview

EPRO PR6423/010-040-CN Replacement & Upgrade Solution for PR6423 Series: Seamless Transition from Legacy Vibration Monitoring Systems

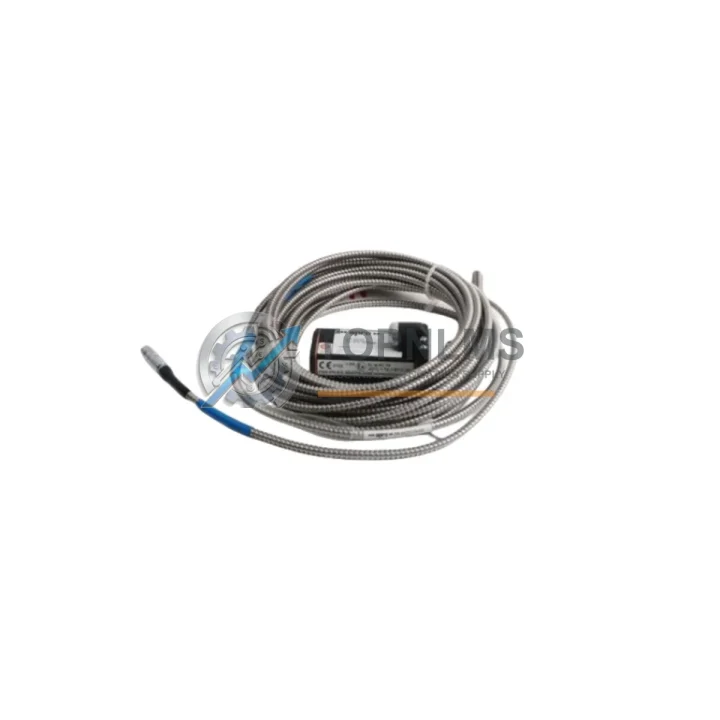

The EPRO PR6423/010-040-CN is an 8mm eddy current proximity probe engineered for continuous shaft vibration and axial position monitoring in rotating machinery. As legacy vibration monitoring systems age and OEM support for discontinued sensor configurations becomes increasingly difficult to secure, plant engineers and reliability teams face mounting pressure to source direct replacements or execute controlled upgrades with minimal disruption to production. This product page is designed to support that migration decision with full technical transparency.

Whether you are replacing a failed PR6423 series probe in a turbine protection loop, upgrading a Bently Nevada 3300 or 7200 series monitoring system, or consolidating spare parts inventory across multiple machine trains, the PR6423/010-040-CN delivers the dimensional, electrical, and signal-output compatibility required for a drop-in retrofit. Each unit ships from our Xiamen warehouse with a 12-month warranty and pre-shipment functional verification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PR6423/010-040-CN installation rarely involves the probe alone. In practice, the migration from a degraded or discontinued vibration monitoring configuration touches several interconnected components across the measurement chain and control cabinet.

The most common companion replacement is the EPRO CON021 driver/oscillator, which conditions the probe signal before it reaches the monitor. If the existing CON021 shows gap voltage instability or has exceeded its recommended service interval, replacing it alongside the probe eliminates the most frequent source of false trips and nuisance alarms. For installations with longer cable runs — common in large turbine halls or compressor stations — the EPRO CON041 extension driver supports cable lengths up to 9 metres without sensitivity loss, making it the preferred choice when the probe boss is remote from the junction box.

On the monitor side, many facilities running legacy EPRO MMS 6000 series vibration monitors find that a probe replacement is the right moment to audit the monitor cards as well. The MMS 6000 accepts PR6423 probes natively, but worn input cards can mask genuine probe performance improvements. Similarly, sites still operating Bently Nevada 3300 XL 8mm proximity transducer systems can use the PR6423/010-040-CN as a functional replacement with appropriate sensitivity scaling confirmed in the monitor configuration.

For axial position monitoring applications — where the PR6423 is used as a thrust position sensor rather than a radial vibration probe — the installation typically includes a dual-probe redundant configuration with a second PR6423 variant (such as PR6423/010-040-CN or PR6423/005-040-CN) mounted on the opposite side of the thrust collar. Replacing both probes simultaneously during a planned outage is strongly recommended to maintain measurement symmetry and avoid differential gap errors that can trigger spurious shutdowns.

The signal wiring from the probe junction box to the monitor rack often passes through signal isolators or galvanic barriers — particularly in hazardous area installations classified Zone 1 or Zone 2. If the existing isolator is an older MTL or Pepperl+Fuchs unit with a bandwidth limitation below 10 kHz, upgrading it in parallel with the probe ensures the full vibration spectrum is preserved through to the monitor. Failure to address isolator bandwidth is a common cause of unexplained high-frequency signal attenuation after a probe replacement.

In DCS-integrated machinery protection architectures, the vibration monitor output feeds into Yokogawa CENTUM VP, Emerson DeltaV, or Honeywell Experion I/O modules via 4–20 mA or hardwired relay contacts. The PR6423/010-040-CN replacement does not alter these downstream signal levels, so no DCS configuration changes are required — a significant advantage for sites where DCS modification requires a formal management-of-change process.

Finally, for facilities undertaking a broader machinery protection upgrade, the PR6423/010-040-CN is frequently deployed alongside EPRO PR9268 velocity sensors for casing vibration measurement and PR6424 series speed probes for overspeed detection — completing a full API 670-compliant protection loop on a single machine train without requiring a monitor platform change.

Retrofit Guidance FAQ

Q: Can I replace the PR6423/010-040-CN without recalibrating the monitor?
A: In most cases, yes. The PR6423 series maintains consistent sensitivity (8 mV/µm) and linear range across production batches. After installation, verify the static gap voltage at the monitor input falls within the specified linear range (typically −10 to −18 VDC at 1.0–1.5 mm gap). If the gap voltage is within range, no monitor recalibration is required. Document the as-found and as-left gap voltages in your maintenance record.

Q: What is the correct installation gap for shaft vibration applications?
A: The recommended nominal gap is 1.0–1.5 mm (40–60 mil), corresponding to a DC bias voltage of approximately −10 to −14 VDC. Set the gap with the shaft stationary using a non-ferrous feeler gauge or by monitoring the driver output voltage. Avoid gaps below 0.25 mm or above 2.25 mm, which fall outside the linear range.

Q: Is the PR6423/010-040-CN compatible with Bently Nevada monitors?
A: The PR6423/010-040-CN is an EPRO-standard probe and is electrically compatible with Bently Nevada 3300 and 7200 series monitors when the monitor is configured for 8 mV/µm sensitivity. Confirm the monitor’s transducer type setting before installation. Some Bently Nevada monitors require a sensitivity adjustment in the configuration software (System 1 or Rack Configuration Tool) when switching from a Bently Nevada OEM probe to an EPRO equivalent.

Q: Can the existing coaxial cable and connector be reused?
A: The integral cable (1.0 m, CN connector) is part of the probe assembly and cannot be separated. The extension cable from the probe to the driver/oscillator can typically be reused if it is undamaged and within the specified impedance range. Inspect the extension cable for kinks, crush damage, and connector corrosion before reuse. Replace the extension cable if insulation resistance is below 100 MΩ.

Q: What communication protocol does this probe use?
A: The PR6423/010-040-CN is a passive analog sensor. It outputs a DC voltage proportional to the gap between the probe tip and the target shaft. There is no digital communication protocol. The signal is processed by the CON021 or CON041 driver/oscillator, which outputs a conditioned analog voltage to the vibration monitor. The monitor then converts this to engineering units (µm or mil peak-to-peak) for display, alarming, and DCS transmission.

Q: How do I confirm the probe is functioning correctly after installation?
A: With the machine stationary, connect a calibrated DC voltmeter to the driver output and verify the gap voltage is within the linear range. Then, with the machine running at normal speed, observe the vibration reading on the monitor and confirm it is consistent with historical baseline values. A sudden increase in broadband vibration or a DC offset shift may indicate a gap error, cable fault, or driver issue rather than a probe defect.

Warranty Assurance

Every EPRO PR6423/010-040-CN unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, sensitivity drift outside the specified tolerance band, connector integrity failures, and cable insulation defects under normal operating conditions.

Pre-shipment testing: Each probe undergoes functional verification prior to dispatch, including static sensitivity check, insulation resistance measurement, and connector continuity test. A test record is available upon request.

Replacement support: In the event of a warranty claim, TOPNLMS will arrange priority replacement shipment from Xiamen stock. Defective units should be returned with a completed failure description form. Replacement units are typically dispatched within 2 business days of claim confirmation.

Shipping: Standard shipment is via DHL Express or FedEx International Priority from Xiamen, China. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. Export documentation, including commercial invoice, packing list, and certificate of origin, is provided with every shipment.

Procurement assurance: TOPNLMS maintains buffer stock of PR6423 series probes to support emergency replacement requirements. Long-term supply agreements and blanket purchase orders are available for facilities with recurring demand. Contact our technical sales team to discuss stocking arrangements tailored to your maintenance schedule.

For technical enquiries, compatibility confirmation, or order placement, contact us at [email protected] or call +86 18359293191.
