EPRO PR6423/010-010-CN CON021 Replacement for PR6423 Series

Product Overview

EPRO PR6423/010-010-CN CON021 Replacement for PR6423 Series: Seamless Transition & Legacy System Compatibility

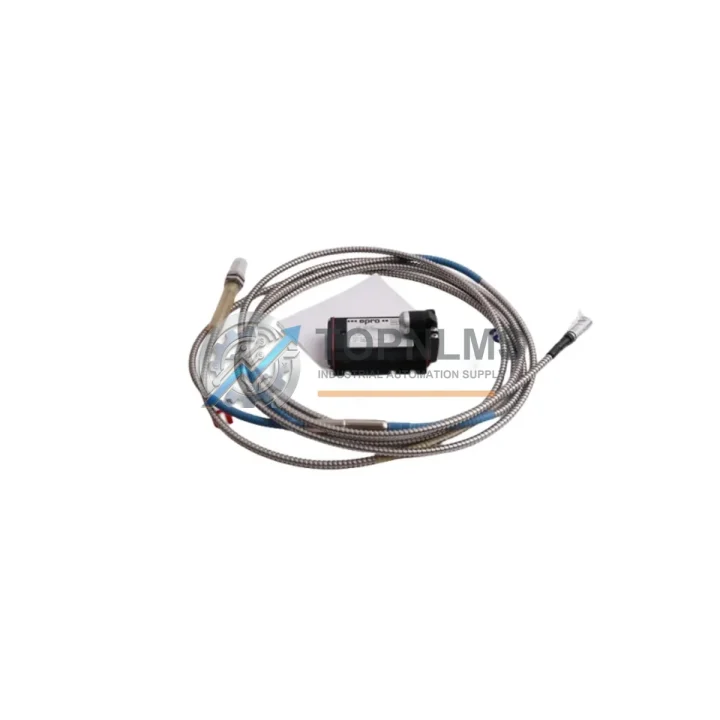

The EPRO PR6423/010-010-CN CON021 is a precision eddy current proximity probe and extension cable assembly engineered for non-contact vibration, position, and displacement measurement in rotating machinery protection systems. As legacy vibration monitoring platforms age and OEM support windows close, plant engineers and reliability teams face increasing pressure to source verified drop-in replacements that preserve signal integrity, wiring compatibility, and system certification without triggering a full-scale control system overhaul.

This listing provides a fully tested, in-stock replacement for the EPRO PR6423 Series eddy current probe system — one of the most widely deployed proximity transducer families in turbine, compressor, pump, and generator protection applications worldwide. Whether you are replacing a failed probe on a running train, building a critical-spare inventory, or executing a planned shutdown retrofit, the PR6423/010-010-CN CON021 assembly ships ready for immediate installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PR6423 probe replacement rarely involves a single component in isolation. In most rotating machinery protection architectures, the eddy current probe assembly interfaces with a chain of interconnected hardware that must be evaluated for compatibility during any upgrade or retrofit project.

When replacing the PR6423/010-010-CN CON021 on a turbine or compressor train, the EPRO CON021 extension cable driver is the direct signal-conditioning counterpart — it sets the oscillator frequency and linearizes the probe output before the signal reaches the monitor rack. If the existing CON021 driver shows signs of drift or connector corrosion, replacing it alongside the probe assembly eliminates a common source of false trips and nuisance alarms.

Downstream, the conditioned signal feeds into vibration monitor modules such as the EPRO MMS6120 or MMS6110 displacement monitor cards, which are rack-mounted in the MMS6000 Series modular monitoring system. These cards accept the standard −24 VDC bias signal from the PR6423 probe without any input scaling change, making the probe swap fully transparent to the monitor configuration. If the MMS6000 rack itself is approaching end-of-life, the EPRO MMS6823 speed and phase reference module and associated MMS6312 relay output module are frequently replaced as a set during the same planned outage window.

For plants running Bently Nevada 3500 Series machinery protection systems, the PR6423/010-010-CN CON021 is a recognized field-equivalent replacement for the 3300 XL 8 mm proximity transducer system. The 3500/42M position monitor and 3500/40M proximitor I/O module accept the PR6423 signal directly, preserving all existing alarm and trip setpoints. No changes to the 3500 rack configuration or System 1 software database are required.

In installations where the probe cable must pass through a hazardous area boundary, a Zener barrier or galvanic isolator — such as the P+F KFD2-STC4-Ex1 or equivalent — is typically installed between the extension cable and the monitor input. The PR6423/010-010-CN CON021 is compatible with standard IS barrier designs used in Zone 1 and Zone 2 classified areas, and no barrier re-selection is needed when performing a like-for-like probe replacement.

Where the existing installation uses a junction box or field terminal assembly to transition from the probe extension cable to the monitor room cable, the CON021 connector mates directly with standard EPRO field junction hardware. If the junction box terminal blocks show oxidation or loose terminations — a common finding during probe changeouts — replacing the terminal block inserts at the same time eliminates a latent fault source without requiring any rewiring of the monitor room cable.

For sites executing a broader migration from legacy EPRO or Bently Nevada hardware to a modern platform such as the Emerson AMS 9420 wireless vibration transmitter or a DCS-integrated condition monitoring solution, the PR6423/010-010-CN CON021 serves as a reliable interim replacement that maintains protection coverage during the phased migration, avoiding the risk of running unprotected machinery while the new system is commissioned.

Retrofit Guidance FAQ

Q: Can I replace the PR6423/010-010-CN CON021 without changing the wiring in the junction box or monitor rack?
A: Yes. The PR6423/010-010-CN CON021 uses the same MIL-spec push-pull connector and identical cable color coding as all previous PR6423 Series assemblies. The extension cable terminates at the CON021 driver using the standard EPRO connector, and the driver output connects to the monitor input via the existing field cable. No rewiring is required at any termination point.

Q: Will the replacement probe require a new gap calibration?
A: The air gap must be set to the OEM-specified value (typically 1.0 mm ± 0.1 mm for 8 mm probes) during installation. If the probe is replacing a failed unit in an existing bracket, the gap can be re-established using the original bracket position as a reference. A calibration curve change is not required because the PR6423/010-010-CN CON021 uses the same sensitivity coefficient (200 mV/mil) as all PR6423 Series probes.

Q: Is the PR6423/010-010-CN CON021 compatible with Bently Nevada 3500 Series monitors?
A: Yes. The PR6423 probe family is a recognized field-equivalent for the Bently Nevada 3300 XL 8 mm proximity transducer system. The output signal characteristics — bias voltage, sensitivity, and frequency response — are within the acceptance range of the 3500/40M and 3500/42M monitor modules. Existing alarm and trip setpoints do not need to be changed.

Q: What communication protocol does the probe system use?
A: The PR6423/010-010-CN CON021 is an analog transducer system. It outputs a DC voltage proportional to the gap distance (−24 VDC bias, 200 mV/mil sensitivity). There is no digital fieldbus or protocol involved at the probe level. The analog signal is digitized within the monitor module (MMS6000, 3500 Series, or equivalent), which then communicates with the DCS or historian via Modbus, OPC-DA/UA, or proprietary protocols depending on the monitor platform.

Q: Can the probe be installed in a physically confined bearing housing without modifying the mounting bracket?
A: The PR6423/010-010-CN CON021 has an M10 × 1 threaded body and an 8 mm active tip diameter, identical to all PR6423 Series probes. It will fit any existing PR6423-compatible mounting bracket without modification. The 1 m probe cable provides sufficient flexibility for routing in confined bearing pedestals.

Q: How quickly can the replacement be shipped?
A: Units are held in stock at our Xiamen warehouse. Orders confirmed before 3:00 PM CST are typically dispatched the same business day. International express delivery (DHL / FedEx) to most destinations is 3–7 business days. Domestic China delivery is 1–3 business days.

Warranty Assurance

Every EPRO PR6423/010-010-CN CON021 unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Our warranty program is designed to meet the procurement assurance requirements of industrial maintenance and reliability teams operating in critical rotating machinery environments.

Pre-shipment testing: Each probe assembly undergoes electrical continuity verification, insulation resistance testing, and connector integrity inspection before dispatch. Units that do not meet EPRO factory specification are quarantined and not shipped.

Replacement support: In the event of a warranty claim, TOPNLMS will dispatch a replacement unit within 2 business days of receiving the defective item and confirming the fault. We do not require the customer to wait for a repair cycle — replacement-first logistics minimize your exposure to extended downtime.

After-sales response: Our technical support team is available via email and phone to assist with installation questions, gap-setting guidance, and compatibility verification. Response time for warranty and technical inquiries is within 4 business hours during China Standard Time business hours.

Procurement assurance: TOPNLMS maintains a standing inventory of PR6423 Series components to support emergency and planned maintenance requirements. Purchase orders, proforma invoices, and customs documentation are available upon request to support your procurement and finance workflows.

For volume pricing, blanket orders, or critical-spare inventory programs, contact our sales team directly.
