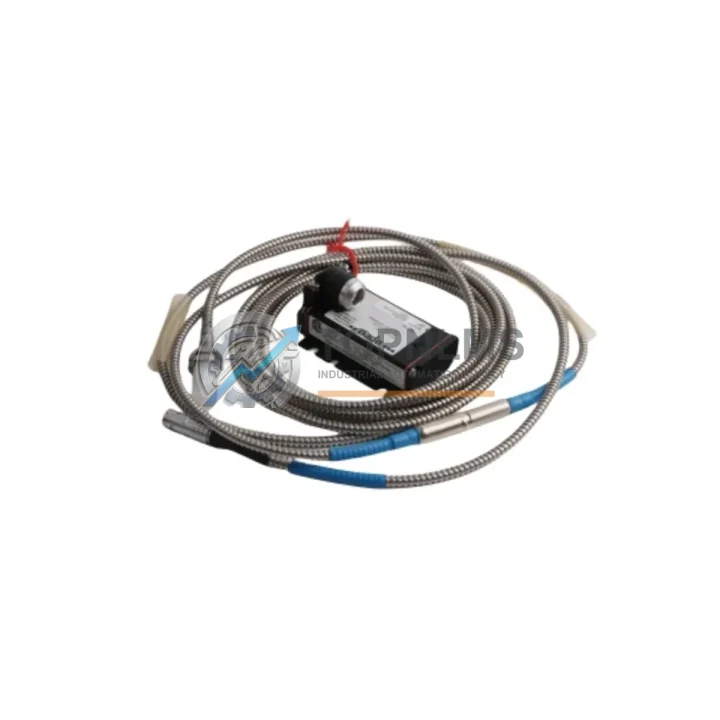

EPRO PR6423/010-000 CON021 Ruggedized Eddy Current Sensor

Product Overview

EPRO PR6423/010-000 CON021 Ruggedized Eddy Current Sensor: Industrial Resilience for Harsh Environments

The EPRO PR6423/010-000 CON021 is a precision eddy current displacement sensor engineered for continuous, non-contact shaft vibration and position monitoring in the most demanding industrial environments. Designed and manufactured in Germany to exacting standards, this sensor delivers sub-micron measurement accuracy while maintaining full operational integrity under conditions of extreme temperature, high humidity, pervasive dust, mechanical shock, and intense electromagnetic interference — conditions that routinely defeat lesser instrumentation.

In rotating machinery protection, measurement integrity is not optional. The PR6423/010-000 CON021 is purpose-built to serve as the primary sensing element in turbine protection systems, compressor monitoring panels, and pump condition-monitoring loops where a missed reading or false trip can result in catastrophic equipment loss or personnel injury. Its ruggedized stainless-steel housing, hermetically sealed sensing tip, and fully shielded coaxial cable assembly ensure that the sensor’s output remains stable and repeatable even when installed adjacent to high-power variable frequency drives, large motor starters, or high-current bus bars that generate significant electromagnetic fields.

Rugged Specifications Table

Comprehensive Protection Solutions

The PR6423/010-000 CON021 sensor is rarely deployed in isolation. In a fully instrumented rotating machinery protection system, it works in concert with a carefully selected suite of complementary components. The sensor’s analog output feeds directly into the EPRO MMS6110 or MMS6120 vibration monitoring modules, which perform real-time signal conditioning, alarm threshold comparison, and relay trip output — all within a single DIN-rail-mounted module that integrates cleanly into a standard control cabinet.

For plants operating on a Bently Nevada architecture, the PR6423/010-000 CON021 is fully interchangeable with the Bently Nevada 3300 XL 8mm proximity probe system, making it an ideal drop-in replacement during scheduled maintenance or emergency spare-part situations. The CON021 signal converter — supplied as a matched pair with this sensor — provides the −24 VDC excitation and performs the impedance matching necessary to drive long cable runs to remote monitoring panels without signal degradation.

In a typical turbine or compressor protection loop, the sensor assembly connects to an EPRO MMS6823 or MMS6840 overspeed detection module, which monitors shaft rotational speed in parallel with radial vibration. Simultaneously, axial position is tracked by a second PR6423-series probe, ensuring that both radial and thrust bearing conditions are continuously evaluated. The combined outputs feed into a Siemens S7-400H or Allen-Bradley ControlLogix safety PLC via hardwired relay contacts or PROFIBUS DP, where the plant DCS — such as a Siemens PCS 7 or Honeywell Experion PKS — aggregates the data for operator display and historian archiving.

Power supply integrity is equally critical. The CON021 converter draws its −24 VDC from a dedicated Phoenix Contact QUINT-PS or Siemens SITOP PSU300S industrial power supply, which provides regulated, low-ripple DC even during mains disturbances. Surge protection on the signal lines — typically an MTL Surge Technologies SD-Series or equivalent DIN-rail SPD — prevents transient overvoltages from damaging the sensor’s sensitive coil circuitry. Terminal connections within the control cabinet are made via Phoenix Contact PTFIX or Weidmüller Klippon terminal blocks, which provide vibration-resistant, tool-free wiring termination suitable for the mechanical shock levels common in heavy industrial installations.

Application in Critical Infrastructure

The EPRO PR6423/010-000 CON021 is a proven performer across the full spectrum of critical industrial infrastructure where unplanned downtime carries severe operational and financial consequences.

Oil & Gas: On offshore platforms and onshore gas compression stations, the sensor monitors the radial shaft vibration of high-speed centrifugal compressors and gas turbine-driven generators. In these environments, the IP67 housing and stainless-steel construction resist the combined assault of salt-laden humid air, hydrocarbon condensate, and the mechanical vibration transmitted through the skid structure. API 670 compliance ensures that the installation satisfies the machinery protection requirements mandated by major operators and engineering contractors.

Power Generation: In coal-fired, gas-fired, and combined-cycle power plants, the PR6423/010-000 CON021 is installed on steam turbine bearing pedestals to provide continuous shaft eccentricity and vibration data to the turbine supervisory instrumentation (TSI) system. The sensor’s wide operating temperature range accommodates the elevated ambient temperatures found in turbine halls, while its EMI immunity prevents interference from the large generators and excitation systems operating nearby.

Mining & Minerals Processing: In grinding mills, crushers, and large slurry pumps, the sensor endures extreme dust concentrations, high-amplitude mechanical shock, and the corrosive effects of process chemicals. Its hermetically sealed tip and robust cable gland assembly prevent ingress of abrasive particles that would otherwise compromise measurement accuracy and shorten service life.

Metallurgy & Steel: Rolling mill drive trains and continuous casting machine drives subject instrumentation to intense electromagnetic fields from large DC drives and induction heating systems. The PR6423/010-000 CON021’s fully shielded coaxial construction and differential signal architecture reject common-mode interference, delivering clean vibration signals even in these electromagnetically hostile environments.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment facilities benefit from continuous vibration monitoring to detect impeller imbalance, bearing wear, and cavitation before they progress to catastrophic failure. The sensor’s corrosion-resistant housing withstands the chlorine-laden atmosphere common in treatment plant pump rooms.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures arising under normal operating conditions as defined in the EPRO PR6423 series datasheet. If a unit fails within the warranty period, contact [email protected] with the order reference and a description of the fault. We will arrange return shipping, perform functional verification, and dispatch a replacement or repaired unit within the agreed lead time. Warranty does not cover damage resulting from incorrect installation, overvoltage events beyond the specified limits, or physical abuse.

Q2: How is each unit tested before shipment?
Every PR6423/010-000 CON021 unit dispatched from our facility undergoes a pre-shipment functional test that verifies static gap output linearity, sensitivity (mV/µm), insulation resistance, and cable continuity. Units are tested as a matched sensor-converter pair to confirm system-level performance. A test report is available upon request for critical applications requiring documented traceability.

Q3: Is the PR6423/010-000 CON021 compatible with existing Bently Nevada 3300 and 3500 series monitoring systems?
Yes. The PR6423/010-000 CON021 is designed to be electrically and mechanically compatible with Bently Nevada 3300 XL 8mm proximity probe systems. The output voltage range, sensitivity, and connector configuration are matched to allow direct substitution in existing installations without recalibration of the monitoring system, provided the gap is re-set to the correct operating point during installation. Always verify compatibility with your specific monitor model and firmware revision before installation in a safety-critical application.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
We maintain dedicated stock of PR6423-series sensors and CON021 converters to support planned maintenance programs, insurance spare inventories, and emergency breakdown situations. For customers with multi-unit installations or long-term service contracts, we offer reserved stock arrangements and priority dispatch agreements. Contact us to discuss your specific volume and lead-time requirements. Our goal is to ensure that a sensor failure never becomes a prolonged production outage due to parts unavailability.
