EPRO PR6423/004-010 Replacement Solution for PR6423

Product Overview

EPRO PR6423/004-010 Replacement Solution for PR6423 Series: Smooth Transition & Legacy System Compatibility

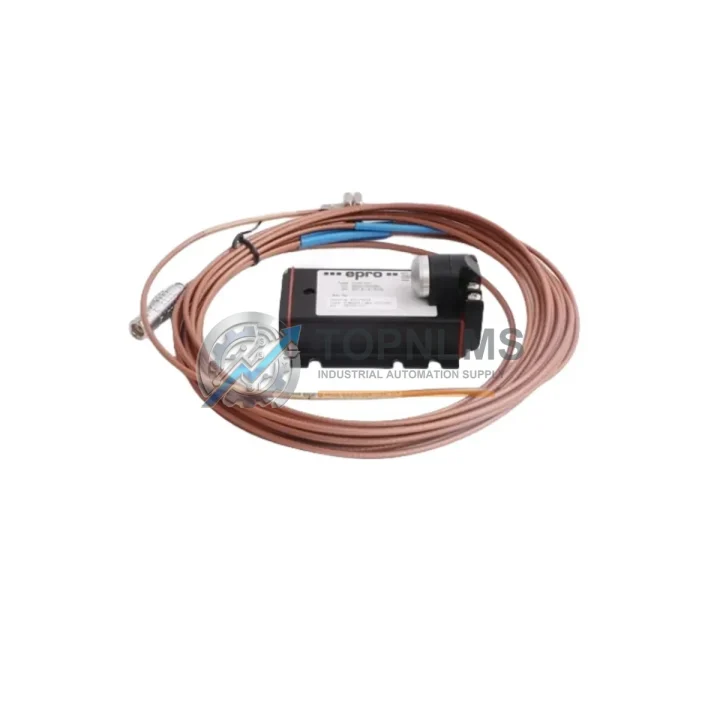

The EPRO PR6423/004-010 is a high-precision eddy current proximity sensor engineered for continuous vibration and position monitoring in rotating machinery applications. As legacy turbomachinery protection systems age and OEM support for older sensor configurations is phased out, plant engineers and reliability teams face increasing pressure to source verified replacement units that maintain full signal compatibility with existing monitoring infrastructure. This product page is designed to support that migration — providing a direct, drop-in replacement for the PR6423/004-010 with no signal chain reconfiguration required.

Whether you are replacing a failed sensor in a gas turbine protection loop, upgrading a worn-out probe in a steam turbine bearing monitor, or consolidating spare parts inventory for a multi-unit power plant, the PR6423/004-010 integrates seamlessly into your existing EPRO PR6423 Series measurement chain. The sensor is designed to work in conjunction with the EPRO CON021 or CON041 signal conditioning modules, and is fully compatible with the EPRO MMS6000 and MMS3000 machinery monitoring systems — meaning your existing rack-mounted monitoring hardware, wiring harnesses, and alarm setpoints remain unchanged during the swap.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PR6423/004-010 replacement rarely involves the sensor alone. In most turbomachinery protection upgrades, the sensor is one component in a tightly integrated measurement chain. During the migration process, engineers commonly evaluate and replace several adjacent components to ensure system-wide reliability.

The EPRO CON021 proximitor / signal conditioner is the most frequently co-replaced item — it powers the probe via the −24 VDC supply line and converts the raw eddy current signal into a calibrated voltage output. If the conditioner has accumulated operating hours comparable to the failed probe, replacing both simultaneously eliminates a second unplanned outage. Similarly, the EPRO PR6424 extension cable (available in 5 m and 9 m versions) should be inspected for connector corrosion or jacket damage; a degraded cable introduces noise that can mimic sensor failure and trigger false alarms in the MMS6120 vibration monitor or MMS6110 displacement monitor cards.

For plants running older MMS3000 Series racks, the migration to PR6423/004-010 is often paired with a broader I/O card refresh — particularly the MMS3120 vibration input module, which may require firmware alignment when paired with newer sensor batches. In MMS6000 Series installations, the MMS6823 keyphasor module and MMS6350 overspeed detection module are frequently reviewed during the same maintenance window, since the PR6423 probe provides the shaft reference signal used by both protection functions.

Control cabinet space is rarely a constraint for this replacement — the PR6423/004-010 uses the same M12 probe body and standard junction box connector as its predecessors, so no bracket modification or cable tray rerouting is needed. However, if the plant is simultaneously upgrading from an older Bently Nevada 3300 Series or 7200 Series proximity system to the EPRO platform, a signal isolator or input scaling module may be required to bridge the sensitivity difference between the two probe families before the new EPRO conditioner is fully commissioned.

Retrofit Guidance FAQ

Q: Can I replace the PR6423/004-010 without recalibrating the monitoring system?
A: Yes. The PR6423/004-010 maintains the same 8 mV/µm sensitivity and −24 VDC bias as the original unit. When paired with the same CON021 or CON041 conditioner, no gap recalibration or alarm setpoint adjustment is required in the MMS6000 or MMS3000 monitor.

Q: Is the wiring connector compatible with my existing junction box?
A: The PR6423/004-010 uses the standard EPRO PR6423 Series armored cable with a factory-terminated connector. It mates directly with the existing junction box without re-termination. Verify the cable suffix (010 = 10 m) matches your installation distance before ordering.

Q: What communication protocol does this sensor use?
A: The PR6423/004-010 is an analog sensor — it outputs a DC voltage proportional to the gap between the probe tip and the target shaft. There is no digital fieldbus or protocol involved at the sensor level. The signal is processed by the CON021/CON041 conditioner and then read by the MMS monitor over a standard analog input channel.

Q: Will this sensor fit in the same physical space as the old probe?
A: Yes. The PR6423/004-010 shares the same M12 × 1 thread, 8 mm tip diameter, and probe body length as all PR6423/004-xxx variants. No bracket modification, housing change, or control cabinet rework is required.

Q: Can this sensor replace a Bently Nevada proximity probe in a cross-brand migration?
A: Cross-brand migration is possible but requires careful sensitivity matching. The EPRO PR6423 Series and Bently Nevada 3300/7200 Series use different sensitivity scales. A signal conditioning adapter or reconfiguration of the monitor input scaling is typically required. Contact our technical team for migration-specific guidance.

Q: How do I verify the sensor is functioning correctly after installation?
A: After installation, perform a static gap check using the conditioner’s DC output voltage. At the nominal gap (typically 1.0–1.5 mm for most turbomachinery applications), the output should read within the linear range specified in the PR6423 calibration sheet. Compare against the previous sensor’s baseline readings in the MMS monitor trend log.

Warranty Assurance

Every EPRO PR6423/004-010 unit shipped from TOPNLMS carries a 12-month warranty covering manufacturing defects, signal output deviation, and connector integrity. Prior to dispatch, each unit undergoes a pre-shipment functional check including output voltage verification, cable continuity test, and connector inspection. Units that do not meet EPRO factory specification are quarantined and not shipped.

If a warranty claim arises within the 12-month coverage period, TOPNLMS provides a replacement unit or full refund depending on the nature of the defect and the urgency of the customer’s operational situation. Our average response time for warranty claims is under 24 hours. Replacement units are dispatched from Xiamen with express international shipping to minimize plant downtime.

For procurement teams requiring documentation, we can provide a test report, packing list, and certificate of conformance upon request. All units are shipped with ESD-protective packaging and clearly labeled with the part number, serial reference, and country of origin (Germany) for customs clearance purposes.

For urgent replacement inquiries, spare parts consolidation, or volume procurement, contact our industrial automation team directly:

📧 [email protected] | 📞 +86 18359293191
