EPRO PR6423/002-130 CON021 Replacement for PR6423 Series

Product Overview

EPRO PR6423/002-130 CON021 Replacement & Upgrade Solution for PR6423 Series

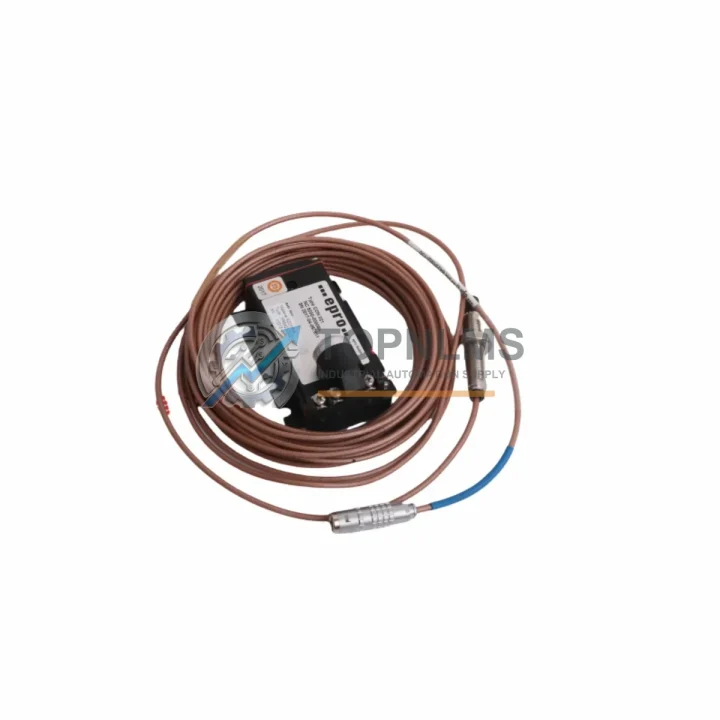

The EPRO PR6423/002-130 CON021 is a high-precision eddy current proximity transducer engineered for continuous shaft vibration and displacement monitoring in rotating machinery. As legacy PR6423 Series sensors reach end-of-life or become increasingly difficult to source, plant engineers and reliability teams are actively seeking verified drop-in replacements that preserve existing wiring, conduit routing, and signal conditioning infrastructure. This listing provides a fully tested, 100% original EPRO PR6423/002-130 CON021 unit — stocked in Xiamen and ready for immediate dispatch to minimize your system downtime.

The PR6423/002-130 CON021 operates as part of the EPRO proximity transducer ecosystem, designed to interface directly with the CON021 signal conditioning module. This pairing ensures the 4–20 mA or voltage output signal remains within the calibrated range expected by your existing DCS or vibration monitoring system — whether you are running a Bently Nevada 3500 Series rack, an EPRO MMS 6000 system, or a third-party vibration monitoring platform that accepts standard EPRO-compatible transducer inputs. The sensor’s 8 mm probe diameter and standard M10 thread allow direct mechanical substitution without modification to existing probe holders or proximity probe brackets.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a worn or discontinued PR6423 Series sensor to the PR6423/002-130 CON021 rarely involves the probe alone. In most plant environments, the transducer works as part of a tightly integrated measurement chain. During the retrofit process, engineers commonly evaluate the condition of the paired CON021 signal conditioner — if the conditioner has been in service for more than five years, replacing it alongside the probe ensures the calibrated sensitivity curve remains accurate and eliminates a common source of drift-related false alarms.

For installations where the existing extension cable between the probe and conditioner has been routed through conduit or cable trays, the PR6423 Series extension cable (typically 5 m or 9 m lengths) can be reused provided the connector pins show no corrosion or mechanical damage. If the cable must be replaced, the standard TNC-to-TNC coaxial extension used across the PR6423 family is interchangeable without signal loss.

Plants running Bently Nevada 3500/42M proximity monitor cards will find that the PR6423/002-130 CON021 output is fully compatible with the 3500 rack’s input voltage range, allowing the existing Bently Nevada 3500/42M channel configuration to remain unchanged. No software re-ranging or transducer type reconfiguration is required in the System 1 software environment.

Where the vibration monitoring system feeds into a broader DCS platform — such as an ABB System 800xA or Emerson DeltaV — the 4–20 mA analog signal from the CON021 conditioner connects directly to standard AI modules without protocol conversion. This makes the PR6423/002-130 CON021 a practical choice for sites that have standardized on fieldbus-agnostic analog I/O infrastructure.

For turbine and compressor applications where multiple measurement points are monitored simultaneously, the PR6423/002-130 CON021 is frequently deployed alongside PR6424 Series velocity transducers and PR9268 Series accelerometers to build a complete vibration signature baseline. Replacing a single PR6423 probe while leaving adjacent sensors in service is straightforward — the CON021 conditioner’s independent channel design means there is no cross-channel interference during partial replacement.

In control cabinet environments where space is constrained, the compact form factor of the PR6423/002-130 CON021 and its associated CON021 conditioner fits within standard 35 mm DIN rail mounting arrangements. If the existing cabinet layout uses a MMS 6000 Series modular monitoring system, the PR6423/002-130 CON021 is a recognized compatible input source for MMS 6110 and MMS 6120 displacement measurement modules, preserving the existing rack wiring and terminal block assignments.

For sites performing a broader control system modernization — migrating from legacy relay-based protection panels to modern safety PLCs such as the Siemens S7-300 F-series or Rockwell GuardLogix — the analog output of the PR6423/002-130 CON021 integrates cleanly into standard safety-rated AI modules, supporting SIL 2 loop integrity when the full measurement chain is validated per IEC 61511.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring when replacing the old PR6423 probe with this unit?
A: Yes. The PR6423/002-130 CON021 uses the same connector type and cable impedance as earlier PR6423 revisions. Existing extension cables and conduit routing can be retained. Inspect connector pins for oxidation before reconnecting.

Q: Do I need to recalibrate the CON021 conditioner after installing this probe?
A: No recalibration is required when replacing a PR6423/002-130 with another PR6423/002-130 CON021 of the same sensitivity specification (7.87 V/mm). The conditioner’s gain and offset settings remain valid. Verify the output voltage at the known gap distance as a functional check after installation.

Q: Is this sensor compatible with Bently Nevada 3500 Series monitors?
A: Yes. The –24 V DC output and 200 mV/mil sensitivity are within the accepted input range of Bently Nevada 3500/42M proximity monitor cards. No channel reconfiguration is required in System 1 or Orbit software.

Q: What is the physical installation clearance required?
A: The probe requires a minimum radial clearance of 25 mm around the probe tip for accurate eddy current field formation. The M10 thread allows fine gap adjustment using the standard locknut-and-bracket method. Recommended gap at installation: 1.0–1.5 mm from target surface.

Q: Can this sensor be used on non-steel target materials?
A: The PR6423/002-130 CON021 is factory-calibrated for AISI 4140 steel targets. Use on other materials (stainless steel, aluminum, titanium) will produce a different sensitivity curve. A field calibration correction factor must be applied if the target material differs from the factory standard.

Q: What communication protocol does this sensor use?
A: The PR6423/002-130 CON021 is an analog sensor — it outputs a DC voltage proportional to gap distance. There is no digital fieldbus protocol (no HART, no Profibus, no Foundation Fieldbus). Integration into digital systems is achieved via the CON021 conditioner’s analog output connected to a standard AI module.

Q: How long does shipping take and what regions do you serve?
A: Units are stocked in Xiamen, China. Standard international express shipping (DHL / FedEx) delivers to most industrial regions in 3–7 business days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

Warranty Assurance

Every EPRO PR6423/002-130 CON021 unit shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination of the probe tip and connector, continuity and insulation resistance testing, and a functional output verification at a calibrated gap distance. Units that do not meet EPRO factory specification tolerances are quarantined and not offered for sale.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund — whichever the customer prefers — without requiring the customer to return the defective unit at their own cost for initial assessment. Our after-sales response target is within 24 hours of a warranty claim submission via email. For urgent plant situations where downtime cost is critical, priority replacement dispatch is available upon request.

Purchasing through TOPNLMS also provides access to pre-sale technical consultation — our team can review your existing installation drawings, conditioner model, and monitoring system type to confirm compatibility before you commit to the order. This service is provided at no additional charge and is particularly valuable for first-time replacements where the original installation documentation may be incomplete.

Stock levels for the PR6423/002-130 CON021 are maintained to support both single-unit emergency replacements and multi-unit planned maintenance orders. Volume pricing is available for orders of 3 units or more. All units are shipped with original EPRO documentation where available, and a TOPNLMS inspection certificate is included with every shipment.
