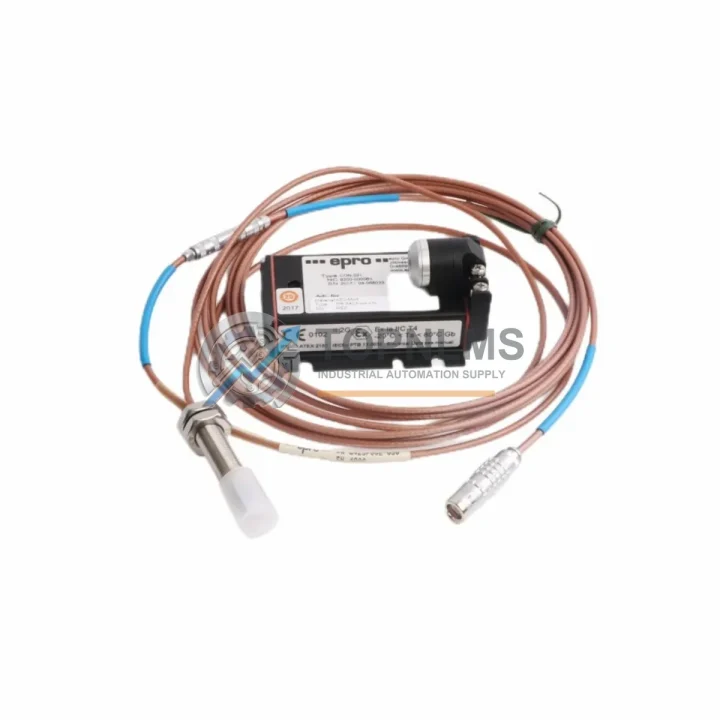

EPRO PR6423/002-030 CON021 Ruggedized Proximity Probe

Product Overview

EPRO PR6423/002-030 CON021 Ruggedized Proximity Probe: Industrial Resilience for Harsh Environments

The EPRO PR6423/002-030 CON021 is a precision eddy current proximity probe engineered for continuous, non-contact displacement and vibration measurement in the most demanding industrial environments. Designed and manufactured in Germany to EPRO’s exacting standards, this 8 mm probe delivers exceptional signal stability across high-temperature, high-humidity, high-vibration, and electromagnetically noisy plant conditions — making it a trusted choice for rotating machinery protection, shaft displacement monitoring, and critical infrastructure safeguarding worldwide.

As part of the proven EPRO PR6423 Series, the PR6423/002-030 CON021 is fully compatible with the EPRO CON021 signal conditioning module, forming a calibrated measurement chain that meets the stringent requirements of API 670 machinery protection systems. Whether deployed in a turbine hall, compressor station, or heavy-duty motor drive cabinet, this probe maintains measurement accuracy within ±1% of full scale even under sustained mechanical shock and continuous electromagnetic interference from adjacent variable frequency drives, power contactors, and high-current bus bars.

Rugged Specifications Table

Comprehensive Protection Solutions

The PR6423/002-030 CON021 does not operate in isolation — it is the sensing front-end of a layered machinery protection architecture. In a typical turbine or compressor protection panel, this probe pairs directly with the EPRO CON021 signal conditioner, which converts the raw oscillator output into a calibrated DC voltage readable by any standard PLC analog input module or DCS controller. The conditioned signal is then routed to a Bently Nevada 3500/42M or equivalent proximity monitor card, where trip and alarm setpoints are configured for shaft radial vibration and position.

Within the same control cabinet, the PR6423 measurement chain integrates seamlessly with EPRO MMS6350 dual-channel vibration monitors and EPRO MMS6823 speed and phase reference modules, enabling a complete API 670-compliant protection system without signal conversion losses. For plants running Siemens S7-300 or S7-400 PLC platforms, the analog output from the CON021 conditioner feeds directly into Siemens SM331 analog input modules, allowing the PLC to execute protective logic — including emergency shutdown sequences — based on real-time displacement data.

Power supply integrity is equally critical. The PR6423/002-030 CON021 system requires a stable −24 VDC supply, typically sourced from a Phoenix Contact QUINT-PS/1AC/24DC/10 or equivalent DIN-rail power supply with active power boost. In hazardous area installations classified as Zone 1 or Zone 2, the probe is used in conjunction with Pepperl+Fuchs KFD2-STC4-Ex1 intrinsic safety barriers or galvanic isolators, ensuring the measurement loop remains within safe energy limits per IEC 60079-11.

For plants employing distributed control architectures, the conditioned displacement signal can be fed into Emerson DeltaV SIS safety instrumented system I/O cards or ABB AC800M controller analog input modules, where it participates in Safety Instrumented Functions (SIFs) rated to SIL 2. Relay output modules — such as the EPRO MMS6312 relay output card — translate the monitor’s trip decision into hardwired shutdown commands to motor control centers, solenoid valves, or turbine trip solenoids, completing the protective loop from sensor to actuator.

Application in Critical Infrastructure

The EPRO PR6423/002-030 CON021 is deployed across the full spectrum of heavy industry and critical infrastructure where rotating machinery failure carries severe safety and financial consequences.

In oil and gas upstream and midstream facilities, this probe monitors the radial shaft position of gas compressors and centrifugal pumps operating in sour gas service. The probe’s IP67-rated body and high-temperature cable withstand hydrocarbon-laden atmospheres, H₂S exposure, and the thermal cycling inherent in outdoor desert or arctic installations. Offshore platform operators rely on the PR6423 series for continuous shaft monitoring on gas injection compressors where unplanned downtime costs exceed USD 500,000 per day.

In coal-fired and combined-cycle power generation, the PR6423/002-030 CON021 is mounted on steam turbine bearing housings to measure journal bearing eccentricity and shaft centerline migration. The probe’s immunity to the intense electromagnetic fields generated by generator excitation systems and high-voltage bus work ensures that vibration alarms are never masked by electrical noise — a critical requirement for plants operating under grid stability obligations.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives subject proximity probes to extreme vibration levels, abrasive dust ingress, and water spray. The PR6423’s ruggedized construction and IP67 sealing allow it to survive these conditions without signal drift, providing mill operators with reliable bearing wear data that informs predictive maintenance schedules and prevents catastrophic bearing failures.

In water and wastewater treatment, high-speed centrifugal blowers and vertical turbine pumps benefit from continuous shaft monitoring using the PR6423 series. The probe’s non-contact measurement principle eliminates wear and eliminates the need for periodic recalibration caused by mechanical contact, reducing maintenance burden in facilities that operate 24/7 with minimal staffing.

In steel and aluminum smelting, induction furnaces, rolling mill drives, and continuous casting machines generate severe electromagnetic interference. The PR6423/002-030 CON021’s shielded coaxial cable and differential signal conditioning architecture reject common-mode noise, maintaining measurement integrity even when installed within meters of high-power induction heating equipment.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects, component failures, and functional deviations from the published EPRO PR6423/002-030 CON021 datasheet specifications under normal operating conditions. If a unit fails within the warranty period, contact [email protected] with your order number and a description of the fault. We will arrange return shipping, perform functional testing, and issue a replacement or full refund within 10 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Every PR6423/002-030 CON021 unit in our inventory undergoes pre-shipment functional verification: oscillator frequency check, output voltage linearity test across the full 0–2 mm range, insulation resistance test on the cable assembly, and visual inspection of the probe tip, connector, and cable jacket. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for critical spare applications.

Q3: Is this probe compatible with existing Bently Nevada 3500 series monitors and EPRO MMS6000 series monitors?
Yes. The PR6423/002-030 CON021, when used with the EPRO CON021 conditioner, produces a standard −24 VDC-powered, voltage-output signal fully compatible with Bently Nevada 3500/42M proximity monitor inputs and EPRO MMS6350 dual-channel monitor inputs. No signal conversion or additional interface hardware is required. Always verify the gap voltage and sensitivity settings in the monitor match the PR6423 calibration data supplied with the unit.

Q4: Can you guarantee long-term supply and cross-reference support for replacement applications?
Yes. TOPNLMS maintains a dedicated inventory of EPRO PR6423 series probes and CON021 conditioners to support both planned maintenance shutdowns and emergency breakdown replacements. We provide cross-reference assistance for legacy installations where original documentation is unavailable, and can advise on compatible replacement options if the exact variant is temporarily out of stock. Contact us at +86 18359293191 or [email protected] for lead time confirmation and bulk pricing.
