EPRO MMS6120 Replacement/Upgrade Solution for MMS Series

Product Overview

EPRO MMS6120 Replacement/Upgrade Solution for MMS Series: Smooth Transition from Legacy Vibration Monitoring Systems

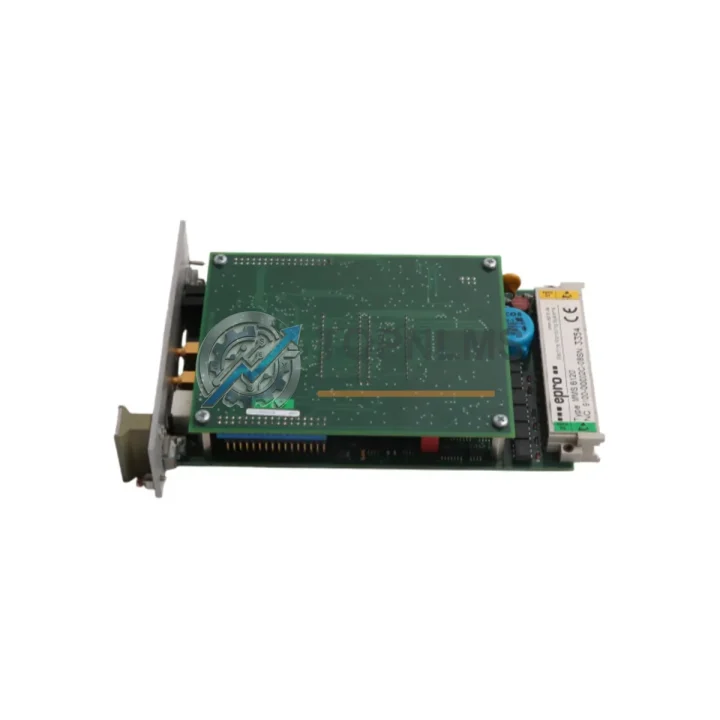

The EPRO MMS6120 is a dual-channel bearing vibration monitor designed for continuous machinery protection within the EPRO MMS Series condition monitoring platform. As legacy vibration monitoring systems age and original equipment manufacturers discontinue support for older modules, plant engineers and reliability teams face increasing pressure to source verified replacement units or execute a controlled upgrade path that preserves existing wiring infrastructure, rack space, and communication architecture.

TOPNLMS maintains ready stock of the MMS6120 to support both direct replacement of failed or end-of-life units and structured migration projects where the MMS Series platform is being extended or partially modernized. Each unit is tested prior to shipment and covered by a 12-month warranty, giving procurement teams and maintenance engineers the confidence to plan scheduled outages rather than react to unplanned failures.

When replacing an existing MMS6120 in a live rack, the module slots directly into the standard EPRO MMS Series backplane without requiring rewiring of the 4–20 mA or voltage-output vibration transducers already installed on the machine train. The dual-channel architecture accepts inputs from proximity probes, velocity sensors, or accelerometers depending on the configured measurement range, and the relay output logic can be mapped to match the original trip and alarm setpoints stored in the associated EPRO MMS6000 rack controller. This means commissioning time after a swap is typically limited to setpoint verification and a functional test rather than a full reconfiguration cycle.

For sites running a broader EPRO MMS Series installation, the MMS6120 operates alongside complementary modules such as the MMS6110 shaft displacement monitor, MMS6210 speed and phase monitor, and MMS6820 temperature monitor, all sharing the same rack bus and communicating status to the plant DCS or safety system via the MMS6900 communication gateway. Replacing a single failed channel monitor does not require reconfiguration of adjacent modules, which significantly reduces the risk of introducing errors during a maintenance window.

In modernization projects where the control room is migrating from a standalone EPRO rack to an integrated platform — for example, connecting MMS Series outputs to a Rockwell Automation ControlLogix or Siemens S7-400 PLC via Modbus RTU or Profibus DP — the MMS6120 continues to serve as the field-level measurement layer while the communication gateway handles protocol translation. This hybrid architecture is common in phased upgrade programs where replacing all field wiring and transducers simultaneously is not economically viable. The MMS6120’s analog output signals remain compatible with most DCS analog input cards, including those from Emerson DeltaV and Honeywell Experion systems, allowing the measurement data to be ingested into the new control layer without signal conditioning hardware.

For installations where the original EPRO rack is being decommissioned entirely and replaced with a modern condition monitoring system, the MMS6120 can serve as an interim solution during the transition period, maintaining machine protection coverage while the new system is installed, configured, and validated in parallel. During this phase, procurement of a verified replacement unit from TOPNLMS ensures that the existing protection layer remains operational and that the plant does not enter an unprotected state during the cutover window.

Physical installation dimensions conform to the standard MMS Series module form factor, requiring no modification to the existing control cabinet or rack enclosure. Power consumption is within the MMS6000 rack power budget, and no additional MMS6950 power supply capacity is required for a like-for-like replacement. For sites adding a new MMS6120 channel to an existing rack as part of an expansion — for example, adding bearing vibration monitoring to a previously unmonitored pump or compressor — the rack power budget and available slot count should be verified against the existing MMS6000 rack configuration before ordering.

TOPNLMS ships from Xiamen with standard lead times of 3–7 business days for in-stock units, with expedited options available for urgent plant requirements. All units are inspected and function-tested before dispatch. Export documentation, including commercial invoices and packing lists suitable for customs clearance, is provided as standard.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete MMS Series replacement or expansion project typically involves more than a single module. When sourcing the MMS6120, consider the following components that are commonly required in the same maintenance window or upgrade scope:

The MMS6000 rack serves as the backplane for all MMS Series modules and must be verified for available slots before adding new monitoring channels. The MMS6950 power supply module provides regulated DC power to the rack and should be inspected for age and load capacity when adding modules to an existing installation. The MMS6900 communication gateway handles Modbus RTU or Profibus DP communication between the MMS rack and the plant DCS or PLC, and firmware compatibility should be confirmed when replacing modules in a rack running an older gateway version.

For shaft displacement monitoring on the same machine train, the MMS6110 is the standard companion module to the MMS6120, covering radial shaft vibration via eddy-current proximity probes. Speed and phase reference signals are handled by the MMS6210, which provides the tachometer input required for vector-based vibration analysis. Temperature monitoring of bearing housings or winding temperatures is covered by the MMS6820, which shares the same rack bus and alarm relay architecture as the MMS6120.

For sites integrating MMS Series outputs into a modern PLC environment, a Modbus RTU to Ethernet gateway or a dedicated Profibus DP coupler may be required to bridge the MMS6900 output to the plant network. Signal isolators or barriers may also be needed where intrinsic safety requirements apply to the transducer wiring between the field and the MMS rack.

Retrofit Guidance FAQ

Q: Do I need to rewire the transducer cables when replacing an MMS6120?
A: No. The MMS6120 uses the same terminal block pinout as the original module. Existing proximity probe, velocity sensor, or accelerometer cables connect directly without modification.

Q: Will my existing alarm and trip setpoints be retained after replacement?
A: Setpoints are stored in the module itself. After installing the replacement MMS6120, setpoints must be re-entered via the EPRO configuration software or front-panel interface. Document existing setpoints before removing the failed module.

Q: Is the MMS6120 compatible with Modbus RTU communication via the MMS6900 gateway?
A: Yes. The MMS6120 communicates over the MMS rack bus, and the MMS6900 gateway translates this to Modbus RTU or Profibus DP for the plant DCS or PLC. No changes to the gateway configuration are required for a like-for-like module replacement.

Q: Can the MMS6120 fit in a rack that previously held a single-channel module?
A: The MMS6120 occupies a standard single-slot position in the MMS6000 rack. If replacing a single-channel predecessor, the physical slot size is compatible. Verify that the rack firmware supports dual-channel operation on that slot position.

Q: What is the lead time for urgent replacement orders?
A: In-stock units ship within 1–2 business days from Xiamen. Expedited international freight options are available. Contact [email protected] or +86 18359293191 for urgent requirements.

Warranty Assurance

Every EPRO MMS6120 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional testing to verify channel operation, relay output response, and analog output accuracy. Units that do not meet specification are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch or repair support with a target response time of 2 business days from claim receipt. Warranty coverage includes manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact.

For procurement teams requiring documentation, TOPNLMS provides test reports, commercial invoices, and packing lists as standard with each shipment. Certificate of conformance documentation is available on request. All units are shipped with appropriate ESD protection and packaging to ensure safe transit.

For volume orders, blanket purchase agreements, and consignment stock arrangements, contact the TOPNLMS sales team directly to discuss terms.
