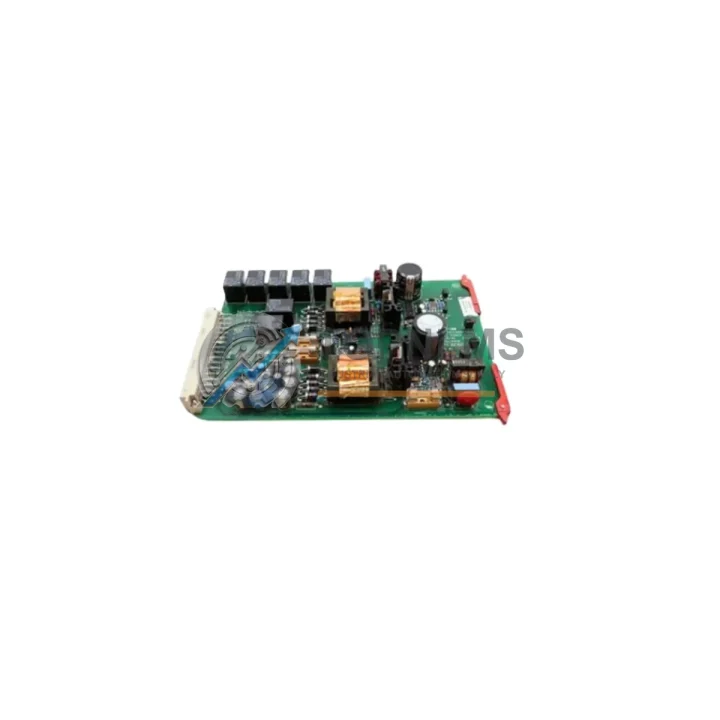

ENTEK EY-6691 SETX2 Replacement for EY Series: Smooth Migration & Legacy System Compatibility

The ENTEK EY-6691 SETX2 Supply Relay Card is a verified drop-in replacement for the ENTEK EY Series machinery protection and vibration monitoring platform. As EY Series systems approach end-of-life or face discontinued spare parts availability, plant engineers and reliability teams require a replacement module that preserves existing wiring infrastructure, rack geometry, and system logic — without forcing a full platform overhaul or extended production shutdown.

This EY-6691 SETX2 unit is sourced from authorized distribution channels and bench-tested prior to shipment. It slots into the same card cage positions used by earlier EY Series relay output assemblies, maintaining the same terminal block pinout and relay contact ratings. For facilities running ENTEK EY Series racks alongside complementary modules such as the EY-6601 Tachometer Card, EY-6611 Proximitor Interface Card, or EY-6621 Seismic Interface Card, the EY-6691 SETX2 integrates without requiring re-termination of field wiring or reprogramming of relay trip setpoints stored in the system’s configuration memory.

Migration from a failed or obsolete supply relay card to the EY-6691 SETX2 is straightforward. The module uses the same edge connector and backplane bus architecture common across the EY Series platform. Physical installation is limited to powering down the rack, extracting the failed card, and inserting the replacement — a process typically completed in under 15 minutes by a qualified instrumentation technician. No firmware flashing or driver installation is required on the host system.

For facilities transitioning from older ENTEK IRD or Bently Nevada 3300 Series machinery protection racks to the EY platform, the EY-6691 SETX2 can serve as part of a phased migration strategy. Signal isolators and terminal adapter modules bridge legacy field wiring to the EY Series backplane, preserving existing cable runs while modernizing the protection logic. In such retrofit projects, an EY-6641 Communication Interface Card is often added to enable Modbus RTU or serial protocol connectivity to a supervisory SCADA or DCS host, allowing the EY rack to report relay status and alarm data upstream without replacing the plant’s existing control network infrastructure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful EY Series relay card migration rarely involves a single module in isolation. In most plant environments, the EY-6691 SETX2 operates alongside a broader suite of EY Series components that collectively form the machinery protection system. During a planned maintenance window or emergency replacement, it is common to simultaneously inspect or replace adjacent modules to prevent cascading failures and minimize total downtime.

For systems where the EY-6691 SETX2 drives relay outputs triggered by vibration or process alarms, the upstream signal chain typically includes an EY-6611 Proximitor Interface Card or EY-6621 Seismic Interface Card feeding conditioned signals into the rack’s internal bus. If those interface cards are also aging, replacing them concurrently with the EY-6691 SETX2 eliminates the risk of a second unplanned outage within weeks of the first repair.

Power integrity is equally critical. The EY Series rack relies on a dedicated power supply module — often an EY-6001 Power Supply Card or equivalent PSU card — to deliver regulated voltage to all installed cards. Before commissioning the replacement EY-6691 SETX2, verifying that the rack power supply output is within specification prevents premature relay card failure. Similarly, the EY-6631 OK Monitor Card, if present in the rack, should be checked to confirm that system OK relay logic will correctly reflect the restored relay card status after the swap.

For sites requiring HMI visibility of relay states, a compatible operator panel or SCADA terminal connected via the EY-6641 Communication Interface Card provides real-time relay status monitoring, reducing the need for physical inspection during normal operations. Where Modbus RTU integration to a DCS host is required, the communication interface card handles protocol translation without any modification to the EY-6691 SETX2 relay card itself.

In broader retrofit scenarios — for example, migrating from a Bently Nevada 3300 Series or legacy ENTEK IRD rack — signal isolators and terminal adapter modules can bridge existing field wiring to the EY Series backplane. This approach preserves cable runs and sensor installations while modernizing the protection and relay output architecture, significantly reducing the capital cost and installation time of a full system replacement.

Retrofit Guidance FAQ

Q: Do I need to re-terminate field wiring when replacing my existing relay card with the EY-6691 SETX2?
A: No. The EY-6691 SETX2 uses the same terminal block pinout as the original EY Series supply relay card. Field wiring connections remain unchanged.

Q: Will my existing relay trip setpoints be preserved after the card swap?
A: Relay trip setpoints in the EY Series are typically stored in the system’s configuration memory or host software, not on the relay card itself. Replacing the EY-6691 SETX2 does not erase setpoint data. Verify setpoints via your configuration tool after installation as a standard commissioning step.

Q: Is the EY-6691 SETX2 compatible with both older and current EY Series rack revisions?
A: Yes. The EY-6691 SETX2 is designed for the EY Series card cage and is compatible across standard EY rack revisions. If you are unsure about your specific rack revision, contact TOPNLMS with your rack serial number for confirmation before ordering.

Q: What communication protocols does the EY-6691 SETX2 support?
A: As a relay output card, the EY-6691 SETX2 operates on the EY Series internal backplane bus. External protocol connectivity (Modbus RTU, Ethernet/IP, etc.) is handled by a separate communication interface card in the rack, not by the relay card itself.

Q: How much physical space does the EY-6691 SETX2 require in the rack?
A: The EY-6691 SETX2 occupies the same single-slot form factor as the original EY Series relay card. No additional rack space or mounting hardware is required.

Q: Can this card be used as a direct replacement for a failed unit without system reconfiguration?
A: Yes. The EY-6691 SETX2 is a drop-in replacement. Power down the rack, remove the failed card, insert the EY-6691 SETX2, and restore power. Perform a functional relay output test before returning the system to service.

Q: What is the lead time and shipping arrangement?
A: Standard orders are processed and dispatched within 1–3 business days from our Xiamen warehouse. Expedited shipping is available for urgent plant maintenance requirements. All units are packaged in anti-static protective materials.

Warranty Assurance

Every ENTEK EY-6691 SETX2 Supply Relay Card shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit undergoes a pre-dispatch functional inspection to verify relay contact continuity, backplane connector integrity, and physical condition. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority handling for customers experiencing active production downtime. Our technical team is available to assist with installation verification, compatibility confirmation, and post-installation commissioning questions.

We maintain stock of EY Series modules to support rapid dispatch. All units are shipped with a test report and certificate of conformance upon request. TOPNLMS is committed to supporting industrial facilities through the full lifecycle of their control system assets — from active production support to end-of-life replacement sourcing and platform migration planning.
