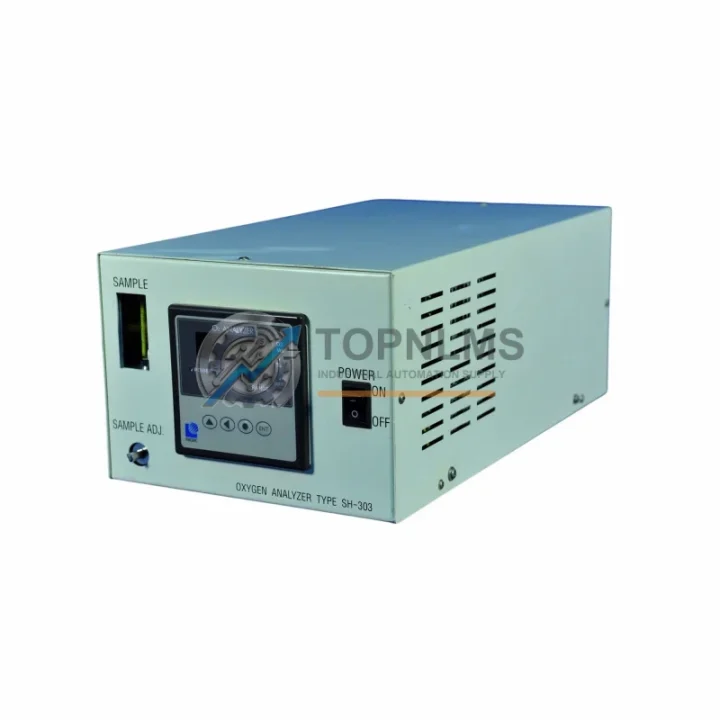

ENERGY SUPPORT KX-501037-A Ruggedized O2 Analyzer Module for Harsh Industrial Environments

The ENERGY SUPPORT KX-501037-A is a precision zirconia oxygen analyzer module from the SH-303 Series, engineered to deliver continuous, accurate O₂ measurement in the most demanding industrial environments. Whether deployed in high-temperature combustion zones, high-humidity process lines, dust-laden mining galleries, or vibration-intensive heavy manufacturing floors, the KX-501037-A maintains measurement integrity where conventional sensors fail. Its zirconia sensing cell is thermally stabilized and mechanically isolated, ensuring reliable signal output even under sustained electromagnetic interference (EMI) from adjacent variable frequency drives (VFDs), motor control centers, and high-current bus bars.

In continuous production environments — including steel reheat furnaces, glass melting tanks, cement kilns, and petrochemical crackers — combustion efficiency depends on real-time O₂ feedback. The KX-501037-A integrates directly into existing SH-303 Series analyzer systems, providing a drop-in replacement that eliminates recalibration downtime and preserves process continuity. Its analog output is fully compatible with mainstream DCS platforms and PLC I/O modules, enabling seamless data acquisition without signal conditioning adapters.

For facilities operating under IEC 61511 functional safety frameworks or ATEX/IECEx hazardous area classifications, the KX-501037-A supports safety instrumented system (SIS) architectures by providing a stable, verifiable O₂ signal to safety logic solvers and emergency shutdown (ESD) controllers. When paired with a redundant SH-303 Series transmitter unit and a dedicated safety relay module, the analyzer contributes to SIL-rated loop integrity for burner management and flue gas monitoring applications.

Rugged Specifications Table

Comprehensive Protection Solutions

The KX-501037-A does not operate in isolation — it is one critical node in a broader industrial measurement and control architecture. In a typical combustion management system, the O₂ signal from the KX-501037-A feeds into a SH-303 Series zirconia transmitter, which conditions and scales the output for downstream consumption by a Yokogawa CENTUM VP DCS or a Siemens S7-300/S7-400 PLC via standard 4–20 mA I/O modules. The DCS or PLC then adjusts fuel-to-air ratios through Yamatake (Azbil) control valves or Fuji Electric variable frequency drives, closing the combustion efficiency loop in real time.

In control cabinet installations, the KX-501037-A signal wiring is typically routed through Phoenix Contact or Weidmüller terminal blocks with surge protection inserts, protecting the analog loop from transient overvoltages caused by nearby high-power switching equipment. A 24 VDC industrial power supply — such as those from the IDEC PS5R Series or Omron S8VS Series — provides stable, low-ripple power to the SH-303 transmitter and its connected sensor module. For applications requiring functional safety compliance, a Pilz PNOZ safety relay or Rockwell Allen-Bradley GuardLogix safety PLC monitors the O₂ loop for out-of-range conditions and triggers burner shutdown sequences automatically.

Communication to the plant historian or SCADA layer is typically handled via Profibus DP or Modbus RTU gateways, with HMS Anybus communication modules bridging the SH-303 system to Ethernet-based supervisory networks. Redundant configurations may incorporate a secondary KX-501037-A sensor element with automatic switchover logic managed by the DCS, ensuring uninterrupted O₂ monitoring during scheduled sensor maintenance or unexpected probe degradation.

Application in Critical Infrastructure

The KX-501037-A is a proven component in some of the world’s most demanding process industries. In steel and metallurgy plants, it monitors flue gas O₂ in blast furnace hot stoves, walking beam reheating furnaces, and ladle preheating stations — environments characterized by temperatures exceeding 1,200°C at the process interface, heavy particulate loading, and continuous 24/7 operation. Accurate O₂ control in these applications directly impacts fuel consumption, scale formation, and product quality.

In oil and gas facilities, including offshore platforms and onshore gas processing terminals, the KX-501037-A supports flare stack monitoring and fired heater combustion control, where regulatory compliance and explosion prevention are non-negotiable. Its robust zirconia cell withstands the corrosive flue gas compositions typical of sulfur-bearing hydrocarbon combustion, maintaining calibration stability over extended service intervals.

For power generation — including coal-fired boilers, biomass combustion units, and waste-to-energy incinerators — the KX-501037-A provides the continuous O₂ feedback required for NOx reduction strategies and compliance with environmental emission limits. In cement and lime kilns, it operates reliably in the presence of high alkali dust concentrations and extreme thermal cycling. Water and wastewater treatment facilities use the SH-303 system for digester gas monitoring, where methane and CO₂ coexist with trace O₂ in a safety-critical measurement environment.

Security & Quality FAQ

Q1: What warranty does the KX-501037-A carry?
All KX-501037-A units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair at no additional cost.

Q2: How is the unit tested before shipment?
Every KX-501037-A undergoes pre-shipment inspection including visual examination, packaging integrity check, and where applicable, functional verification against ENERGY SUPPORT factory test records. Units are shipped in original or equivalent protective packaging to prevent transit damage.

Q3: Is the KX-501037-A compatible with my existing SH-303 system?
Yes. The KX-501037-A is a genuine OEM replacement module designed specifically for the ENERGY SUPPORT SH-303 Series zirconia oxygen analyzer. It is a direct drop-in replacement for the original sensor element, requiring no firmware changes or hardware modifications to the transmitter unit. If you are uncertain about compatibility with a specific SH-303 variant, contact our technical team with your transmitter model number for confirmation.

Q4: Can TOPNLMS support long-term or repeat supply of the KX-501037-A?
Yes. TOPNLMS maintains stock of critical industrial spare parts including the KX-501037-A and other ENERGY SUPPORT SH-303 Series components. We support long-term procurement agreements, scheduled maintenance stock programs, and emergency same-day quotation for urgent plant requirements. Our sourcing network ensures continuity of supply even for discontinued or hard-to-find part numbers.
