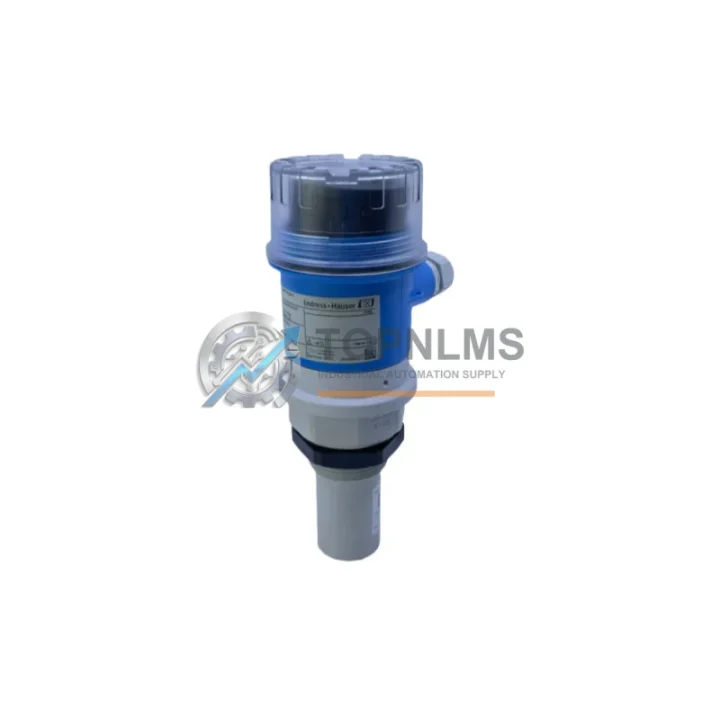

Endress+Hauser FMU30-AAHEAAGGF Ruggedized Radar Level Transmitter for Harsh Industrial Environments

The Endress+Hauser FMU30-AAHEAAGGF is a 6 GHz FMCW (Frequency Modulated Continuous Wave) non-contact radar level transmitter from the renowned Micropilot M series — engineered to deliver uncompromising measurement accuracy and operational resilience in the most demanding process environments. Whether deployed in high-temperature reactors, dust-laden silos, chemically aggressive storage tanks, or vibration-intensive heavy industrial facilities, the FMU30-AAHEAAGGF maintains stable, continuous level measurement without physical contact with the medium, eliminating wear and reducing maintenance overhead across the full service lifecycle.

Designed for integration into modern process control architectures, the FMU30-AAHEAAGGF interfaces seamlessly with distributed control systems (DCS), programmable logic controllers (PLC), and SCADA platforms via its 4–20 mA HART output. In critical infrastructure applications — including oil and gas terminals, chemical processing plants, water and wastewater treatment facilities, power generation stations, and metallurgical operations — this transmitter provides the measurement backbone that keeps automated control loops stable and safe. Its compact antenna design and robust housing make it equally suited for confined vessel installations and open-air bulk storage monitoring.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated process control environment, the FMU30-AAHEAAGGF does not operate in isolation. It is typically deployed alongside a suite of complementary Endress+Hauser and third-party instrumentation to form a complete measurement and protection layer. In liquid storage and chemical dosing applications, the FMU30-AAHEAAGGF works in tandem with the Endress+Hauser Cerabar M PMC51 pressure transmitter to provide redundant level and pressure monitoring, ensuring that overfill protection systems receive corroborating signals from independent measurement principles.

For temperature-compensated density and flow measurement in the same vessel or pipeline, the Endress+Hauser Promass 83F Coriolis flowmeter is a natural companion, sharing the same HART communication infrastructure and configurable via the same FieldCare asset management platform. In control cabinet installations, the FMU30-AAHEAAGGF signal is typically conditioned through a Pepperl+Fuchs KFD2-STC4-Ex1 HART signal conditioner or equivalent intrinsic safety barrier before being fed into a Siemens S7-300 or S7-1500 PLC analog input module — ensuring galvanic isolation and intrinsic safety compliance in Zone 1 hazardous areas.

Where the control architecture is DCS-based, the 4–20 mA HART signal integrates directly into Emerson DeltaV M-Series I/O cards or Honeywell Experion PKS C300 controller analog input channels, enabling full HART pass-through for remote diagnostics and predictive maintenance. In applications requiring SIL 2 functional safety compliance — such as high-level shutdown (HLS) or overfill prevention in accordance with IEC 61511 — the FMU30-AAHEAAGGF can be paired with a dedicated Endress+Hauser RIA15 loop-powered field indicator and a Pilz PNOZ safety relay module to form a certified safety instrumented function (SIF).

Power supply stability is equally critical. Industrial 24 VDC loop power is typically sourced from a Phoenix Contact QUINT-PS/1AC/24DC/10 power supply or equivalent DIN-rail unit, providing regulated, short-circuit-protected power to the transmitter loop. Terminal connections within the control cabinet are made via Weidmüller WDU 2.5 screw terminal blocks, ensuring reliable, vibration-resistant wiring in environments subject to mechanical shock. For remote monitoring and data logging, the HART signal can be accessed via a Endress+Hauser FieldPort SFP20 HART modem connected to a maintenance laptop running DeviceCare, enabling full parameter read/write and diagnostic access without interrupting the live process loop.

Application in Critical Infrastructure

The FMU30-AAHEAAGGF has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas terminals, it monitors crude oil, refined product, and LPG storage tanks where vapour-laden atmospheres, wide temperature swings, and the presence of foam or turbulence would defeat conventional float or guided-wave technologies. Its non-contact measurement principle and ATEX-certified housing make it the preferred choice for Zone 1 classified areas where intrinsic safety is mandatory.

In mining and mineral processing operations, the FMU30-AAHEAAGGF handles slurry sumps, tailings ponds, and ore concentrate storage bins where abrasive, adhesive, or corrosive media would rapidly destroy contact-based sensors. The 6 GHz beam angle provides reliable measurement even in vessels with internal agitators, heating coils, or irregular geometry. In water and wastewater treatment plants, it monitors inlet channels, clarifier tanks, chemical dosing vessels, and sludge digesters — environments characterised by high humidity, H₂S exposure, and continuous 24/7 operation where sensor reliability directly impacts regulatory compliance and public health outcomes.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the FMU30-AAHEAAGGF monitors fuel oil day tanks, demineralised water storage, and cooling tower basins. Its wide operating temperature range and EMC-hardened electronics ensure stable performance in the presence of high-voltage switching transients and strong electromagnetic fields generated by large transformers and motor drives. In metallurgical and steel production environments, it withstands radiant heat, heavy vibration from rolling mills, and airborne metallic dust — conditions that demand the highest level of industrial ruggedisation available in a compact radar transmitter package.
