Endress+Hauser FLOWTEC/319083-0200B Replacement for Promag

Product Overview

Endress+Hauser FLOWTEC/319083-0200B Replacement for Promag: Seamless Transition & Legacy System Compatibility

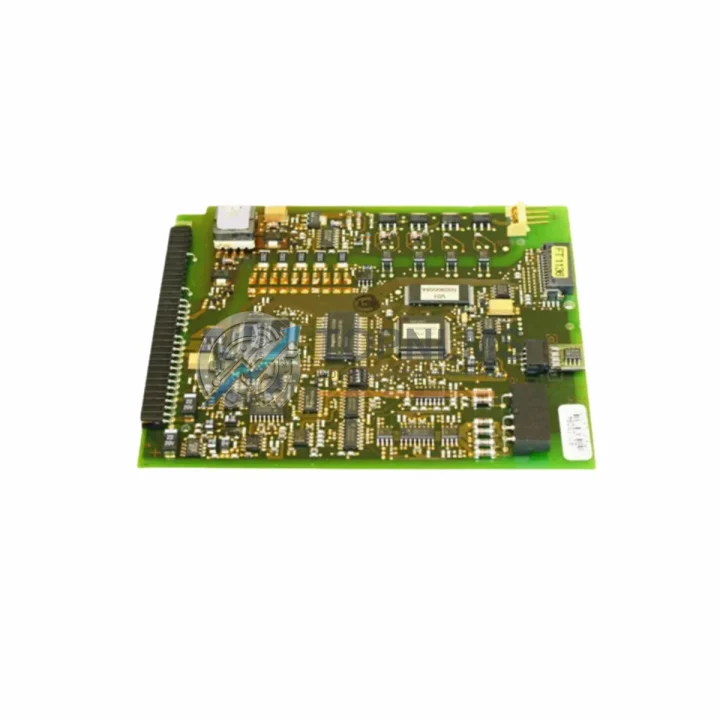

The Endress+Hauser FLOWTEC/319083-0200B is a signal amplifier board designed for the Promag series of electromagnetic flow transmitters. As aging Promag 10, Promag 33, Promag 50, and Promag 53 installations reach end-of-service milestones, plant engineers and procurement teams increasingly require a reliable, drop-in replacement that preserves existing wiring infrastructure, retains HART or PROFIBUS PA communication compatibility, and avoids costly full-transmitter changeouts. This module addresses exactly that need — providing a verified, tested signal amplifier board that restores full transmitter functionality with minimal downtime and no requirement for sensor replacement or pipe modification.

In many brownfield process plants, the Promag electromagnetic flow transmitter remains the backbone of liquid flow measurement across water treatment, chemical dosing, food & beverage CIP lines, and pharmaceutical batch processes. When the signal amplifier board fails — typically manifesting as erratic 4–20 mA output, loss of HART communication, or blank display on the Promag transmitter head — the fastest recovery path is a direct board-level replacement rather than a full transmitter swap. The FLOWTEC/319083-0200B is the correct replacement component for these scenarios, restoring the transmitter to factory-specification performance without disturbing the primary sensor, process connections, or field wiring.

For sites running Endress+Hauser Fieldgate FXA320 or FXA520 remote I/O gateways, the restored HART signal from the replaced board integrates immediately into existing asset management workflows via FieldCare or DeviceCare software. No re-parameterization of the upstream PLC or DCS is required when the replacement board is installed correctly, as the transmitter retains its tag name, measuring range, and damping settings stored in the sensor memory module (if present). This is a critical advantage for facilities operating under IEC 61511 functional safety requirements, where re-validation of the measurement loop after a component swap must be minimized.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Promag signal amplifier board replacement rarely occurs in isolation. In practice, the service visit that brings the FLOWTEC/319083-0200B to site is also the right opportunity to audit and refresh adjacent components that share the same control cabinet or field junction box. The Promag transmitter’s terminal board — which handles the physical connection between the field cable and the amplifier board — should be inspected for corrosion or terminal fatigue; if degraded, the Promag terminal board assembly (part of the Promag 50/53 housing kit) can be replaced simultaneously without additional process shutdown.

For sites where the Promag transmitter communicates via PROFIBUS PA, the PA segment coupler — typically an Endress+Hauser RN221N or a third-party DP/PA coupler — should be verified for correct termination resistance and segment voltage. A faulty segment coupler can cause the newly replaced amplifier board to appear non-communicative on the PROFIBUS network, leading to unnecessary re-work. Similarly, if the installation uses a Promag remote version (sensor and transmitter separated by a connecting cable), the Promag connecting cable set should be tested for continuity and shield integrity before the replacement board is powered up.

In DCS-integrated plants running Emerson DeltaV or Honeywell Experion, the HART signal from the restored Promag transmitter is typically read through a HART multiplexer or a HART-enabled AI card such as the Emerson DeltaV CHARM I/O or the Honeywell HC900 analog input module. Confirming that the HART primary variable mapping in the DCS tag database matches the restored transmitter’s output range prevents false alarms or incorrect flow totalization after the board swap. For Siemens PCS 7 environments, the PROFIBUS PA GSD file for the Promag 50 or Promag 53 should be verified in the hardware configuration to ensure the device profile matches the replacement board’s firmware revision.

Where the plant’s instrument maintenance strategy calls for a complete transmitter modernization rather than a board-level repair, the Endress+Hauser Promag 10W, Promag 400, or Promag 800 series represent the current-generation upgrade path. These newer transmitters retain the same sensor connection interface as legacy Promag models, meaning the existing primary sensor, process flanges, and grounding rings can be reused. The upgrade to a Promag 400 or Promag 800 also introduces Ethernet APL connectivity, enabling integration with NAMUR NE 107 diagnostic frameworks and IIoT asset health monitoring platforms without additional gateway hardware.

For procurement teams managing multi-site spares programs, stocking the FLOWTEC/319083-0200B alongside complementary items such as the Promag sensor coil assembly, the Promag display module (VU331), and the Promag power supply board ensures that any single-point failure in the transmitter can be resolved from on-site inventory without waiting for international shipment. This approach is particularly valuable for remote facilities or offshore platforms where logistics lead times can extend to several weeks.

Retrofit Guidance FAQ

Q: Do I need to re-wire the field cable when replacing the FLOWTEC/319083-0200B board?
No. The replacement board uses the same connector and terminal layout as the original. Existing field wiring — including the coil excitation cable and signal cable from the Promag sensor — connects to the same terminal positions. No re-labeling or re-routing is required.

Q: Will the HART address and device tag be preserved after the board swap?
In Promag models equipped with a sensor memory module (HistoROM), the device tag, measuring range, low-flow cutoff, and damping values are stored in the sensor, not the amplifier board. These parameters are automatically transferred to the replacement board during power-up. For models without HistoROM, parameters must be re-entered manually using a HART communicator (e.g., Endress+Hauser Field Xpert SMT70) or via FieldCare/DeviceCare software.

Q: Is the replacement board compatible with PROFIBUS PA segment topologies?
Yes. The FLOWTEC/319083-0200B supports PROFIBUS PA communication in applicable Promag variants. The device GSD file and device address are retained if the sensor memory module is present. If the PA address was stored only in the original board, the address must be reassigned using a PROFIBUS PA commissioning tool before the device will respond on the segment.

Q: What is the physical installation procedure?
Isolate the transmitter from power. Open the transmitter housing (IP67 or IP68 rated; use appropriate tools to avoid seal damage). Disconnect the board connectors in sequence, noting orientation. Remove the faulty board and install the FLOWTEC/319083-0200B in the same orientation. Reconnect all connectors, verify seating, close the housing, and restore power. Total installation time is typically 30–60 minutes for a trained instrument technician.

Q: Can this board be used in a Promag transmitter installed in a hazardous area (ATEX/IECEx)?
The replacement board must carry the same Ex certification as the original for use in classified hazardous areas. Please confirm the Ex marking on your existing transmitter nameplate and verify that the FLOWTEC/319083-0200B carries the matching ATEX or IECEx approval before installation in Zone 1 or Zone 2 environments. Contact us with your transmitter serial number for certification verification.

Q: How do I verify the replacement board is functioning correctly after installation?
After power-up, confirm that the Promag display shows a valid flow reading and that the 4–20 mA output corresponds to the expected process flow rate. Use a HART communicator or FieldCare to read the device status and confirm no active diagnostics (Category F or C alarms). For PROFIBUS PA installations, verify the device appears online in the DCS or PA master with correct cyclic data exchange.

Warranty Assurance

Every FLOWTEC/319083-0200B signal amplifier board shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-up testing, output signal check, and communication interface validation. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize your plant downtime.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration for customs clearance. All shipments are traceable with courier tracking numbers provided at time of dispatch.

We maintain stock of the FLOWTEC/319083-0200B and related Promag spare components to support urgent breakdown orders. Same-day dispatch is available for orders confirmed before 14:00 CST on business days.
