EMG IDC32-1.1 Replacement Solution for IDC Series

Product Overview

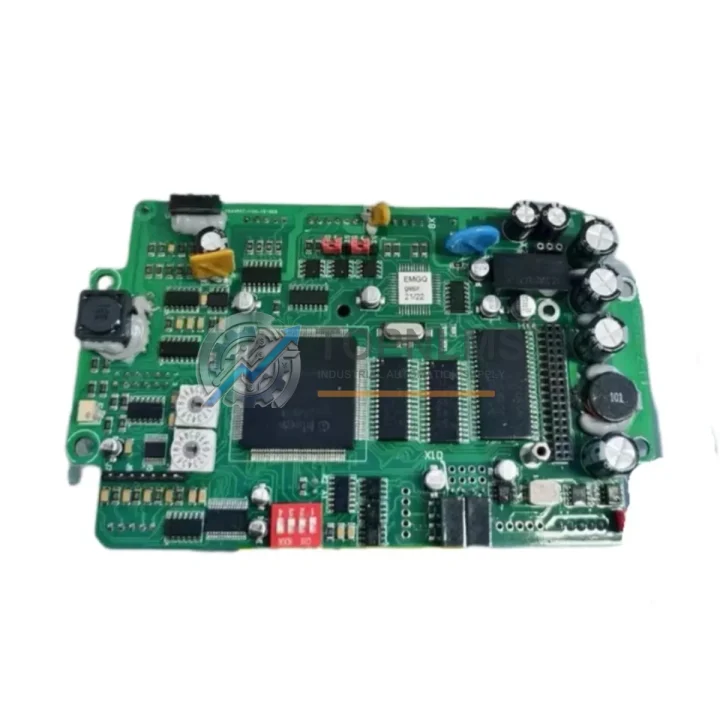

EMG IDC32-1.1 Replacement Solution for IDC Series: Smooth Transition, Zero Compromise

When a legacy drive control board reaches end-of-life or fails unexpectedly on the production floor, every hour of downtime translates directly into lost output and escalating maintenance costs. The EMG IDC32-1.1 is a proven IDC Series drive control board engineered for seamless drop-in replacement in existing EMG drive systems. Whether you are migrating from an older IDC32 variant, upgrading a deteriorating control board in a multi-axis drive cabinet, or sourcing a reliable spare to protect critical infrastructure, the IDC32-1.1 delivers the electrical compatibility, communication integrity, and physical form factor your system demands — without requiring extensive rewiring or software reconfiguration.

TOPNLMS maintains verified stock of the EMG IDC32-1.1, with each unit pre-shipment tested, documented, and backed by a 12-month warranty. Fast international dispatch from Xiamen, China ensures your replacement reaches the site before extended downtime becomes a crisis.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful drive control board replacement rarely involves a single component in isolation. In most IDC Series installations, the IDC32-1.1 operates as part of a tightly integrated drive architecture. During a retrofit or emergency replacement, engineers typically audit the surrounding system to ensure every interface remains stable.

The EMG IDC32-1.1 interfaces directly with the IDC Series power stage module, which governs the IGBT switching and DC bus management. If the power stage has accumulated operating hours comparable to the failed control board, proactive replacement of both units during the same maintenance window eliminates the risk of a secondary failure shortly after restart. Similarly, the gate driver board — positioned between the control board and the power semiconductors — should be inspected for thermal stress or signal degradation before the system is recommissioned.

On the feedback and sensing side, the IDC32-1.1 receives encoder signals and resolver inputs from the motor feedback interface card. Verifying the integrity of the feedback cable harness and the encoder interface module before powering up the replacement board prevents nuisance faults and protects the newly installed hardware. In multi-axis configurations, the IDC Series axis expansion board and the shared DC bus coupler module must also be confirmed operational, as a fault on either can propagate back to the control board and trigger protection shutdowns.

For communication-intensive installations — such as those integrated into a Profibus DP or CANopen network — the IDC Series fieldbus communication module should be checked for firmware compatibility with the IDC32-1.1 revision. In some upgrade scenarios, a firmware update to the communication module is the only additional step required to restore full network transparency. The system HMI or operator panel, often an EMG-compatible touch panel or a third-party SCADA terminal, will resume normal parameter display and fault logging once the control board is correctly initialized.

Where the IDC drive system is housed in a shared control cabinet alongside other automation components — such as a PLC rack, safety relay modules, or a 24 VDC power supply unit — it is advisable to verify that the cabinet’s power distribution remains within specification after the board swap. Inrush current during drive initialization can momentarily stress an aging power supply, and confirming adequate headroom before restart is a standard commissioning step.

Retrofit Guidance FAQ

Q1: Can the IDC32-1.1 be installed without rewiring the existing IDC Series cabinet?
In the vast majority of IDC Series installations, the IDC32-1.1 uses the same connector layout and harness pinout as earlier IDC32 revisions. The existing wiring harness, including the motor feedback cables, power stage interconnects, and fieldbus wiring, can be reused without modification. Engineers should visually inspect connectors for corrosion or mechanical damage before reconnecting, but no rewiring is typically required.

Q2: Will existing drive parameters and motor tuning data transfer to the IDC32-1.1?
Yes. The IDC Series parameter structure is preserved across IDC32 revisions. If a parameter backup was captured from the original board using the IDC commissioning tool or a compatible HMI, those parameters can be uploaded directly to the IDC32-1.1. In cases where no backup exists, the motor nameplate data and original commissioning records provide sufficient information to re-enter parameters manually. TOPNLMS technical support can assist with parameter guidance upon request.

Q3: Is the IDC32-1.1 compatible with Profibus DP and CANopen fieldbus networks?
The IDC32-1.1 supports the same fieldbus communication options as the IDC Series platform. Profibus DP and CANopen connectivity is provided through the IDC Series fieldbus communication module, which remains in place during the board replacement. Node addressing and baud rate settings are retained in the communication module and do not need to be reconfigured unless the module itself is also being replaced.

Q4: What if the physical cabinet space is constrained — will the IDC32-1.1 fit without modification?
The IDC32-1.1 conforms to the standard IDC Series board dimensions and mounting specification. It occupies the same rack slot as the original IDC32 board, requiring no cabinet modification, additional mounting hardware, or thermal management changes. In retrofit projects where the cabinet also houses other components such as a PLC module, I/O terminal blocks, or a 24 VDC rail power supply, the IDC32-1.1 installation does not affect the spatial arrangement of adjacent equipment.

Warranty Assurance

Every EMG IDC32-1.1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a structured pre-shipment inspection that includes visual examination, functional power-on verification, and communication interface testing. Units that do not meet our quality threshold are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a direct replacement or full refund, with priority processing to minimize the impact on your production schedule. Our after-sales response team is reachable via email and phone, and we maintain stock depth specifically to support rapid warranty exchanges without extended lead times.

For procurement teams managing long-term maintenance contracts or multi-site operations, TOPNLMS offers blanket order arrangements and reserved stock agreements for the IDC32-1.1 and related IDC Series components. This ensures supply continuity even as the original EMG production run ages and open-market availability tightens.

We ship internationally from Xiamen, China, with standard lead times of 3–7 business days for stocked units. Express courier options are available for urgent replacement requirements.
