Emerson VE4002S1T1B2 Replacement for DeltaV DCS

Product Overview

Emerson VE4002S1T1B2 Replacement for DeltaV DCS: Smooth Transition & Legacy System Upgrade

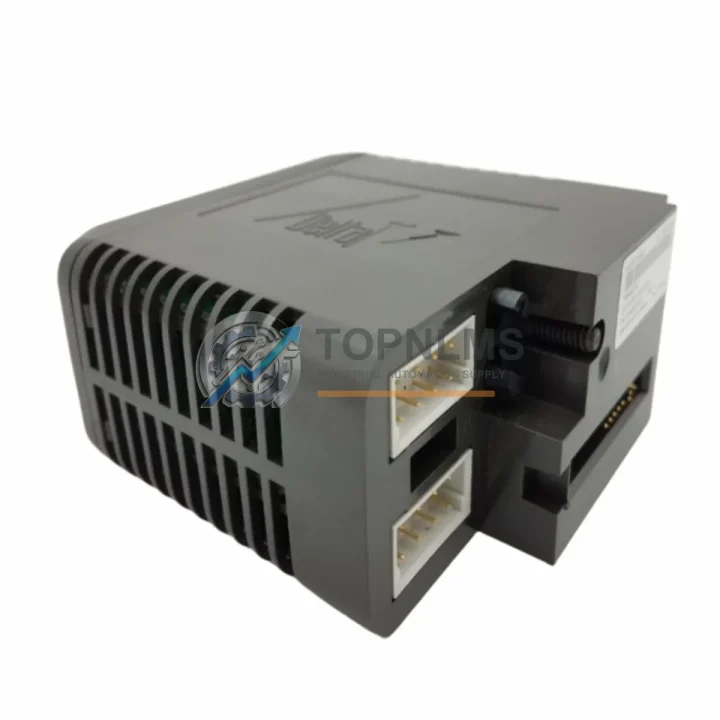

The Emerson VE4002S1T1B2 — cross-referenced as KJ3001X1-BG1 and 12P0557X162 — is an 8-channel 24 VDC sourcing digital output module engineered for the Emerson DeltaV Distributed Control System (DCS) S-series platform. As DeltaV installations age across refining, chemical, power generation, and water treatment facilities, procurement and maintenance teams face a recurring challenge: sourcing verified, functionally equivalent replacements for modules that have reached end-of-life, been discontinued by the OEM, or simply failed under years of continuous plant operation.

TOPNLMS maintains dedicated stock of the VE4002S1T1B2 specifically to support these scenarios. Whether your plant is executing a scheduled turnaround, responding to an unplanned module failure, or conducting a phased modernization of an aging DeltaV node, this unit is available for immediate dispatch from our Xiamen facility. Every module is pre-shipment tested and covered by a 12-month warranty from the date of shipment.

The VE4002S1T1B2 is a direct drop-in replacement for earlier DO module revisions in the same DeltaV S-series family, including the KJ3001X1-BA1 and other superseded part numbers. It seats into the existing DeltaV S-series carrier without mechanical modification, reuses existing 24 VDC field wiring at the marshalling terminal block without re-termination, and is automatically recognized by DeltaV Explorer upon node power-up — eliminating the need for a full control strategy re-download in most replacement scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A DeltaV module replacement rarely occurs in isolation. When a plant team replaces the VE4002S1T1B2, the surrounding node architecture is typically reviewed at the same time to ensure long-term reliability after the swap. The VE4001S1T1B2 8-channel Digital Input Module is the most common co-replacement, as it shares the same S-series carrier and is subject to identical aging and environmental stress cycles. Replacing both the DI and DO modules during the same maintenance window eliminates the need for a second planned outage within a short interval.

For nodes that also handle analog signals, the VE3008S1T1B2 Analog Input Module and the VE3016S1T1B2 16-channel AI Module are frequently evaluated alongside the digital output replacement, particularly in mixed I/O nodes where analog and discrete signals share the same DeltaV controller chassis. Ensuring that all I/O modules in the node are on current, supported revisions reduces the risk of cascading failures during production.

Power integrity is a critical factor in any DeltaV node upgrade. The KJ1501X1-BF2 DeltaV Power Supply Module is commonly inspected or replaced when the DO module is being serviced, since degraded power delivery directly affects output channel performance under load. For sites that are simultaneously upgrading the controller tier, the KJ2003X1-BA1 DeltaV Controller Card provides the processing backbone that governs all I/O modules in the node, and its replacement is often bundled with I/O module upgrades to maximize the value of each planned outage.

Communication infrastructure is equally important during a DeltaV modernization. Sites migrating from conventional 4–20 mA field wiring to digital fieldbus protocols often evaluate the VE4030S1T1B2 Foundation Fieldbus H1 Interface Module as part of the same upgrade scope. For installations that retain legacy Profibus DP segments, the KJ4002X1-BA1 Profibus Interface Module ensures the upgraded node maintains backward compatibility with existing field device networks without requiring a full instrument replacement program. Where HART-enabled field devices are present, the VE4022S1T1B2 HART Digital Output Module offers the same physical footprint as the VE4002S1T1B2 with added HART pass-through capability — a natural upgrade path for sites planning future asset management integration.

For control rooms undergoing a broader HMI refresh alongside the DCS hardware upgrade, the Emerson DeltaV Operate Workstation running DeltaV v13 or v14 software provides the operator interface layer that completes the modernization. Ensuring that the newly installed VE4002S1T1B2 and its companion I/O modules are fully visible and controllable from an updated SCADA/DCS console is the final step in a comprehensive DeltaV node upgrade program.

Retrofit Guidance FAQ

Q: Can I replace the VE4002S1T1B2 without modifying existing field wiring?
A: Yes. The VE4002S1T1B2 uses the same marshalling terminal block pinout as earlier DeltaV DO module revisions. Existing 24 VDC field cables connect directly to the terminal block without re-termination. No wiring diagram changes are required.

Q: Will DeltaV Explorer recognize the new module automatically after installation?
A: In most cases, yes. When the module is seated in the same slot and the node is powered up, DeltaV Explorer detects the module and restores channel assignments from the existing control strategy. A commission download is not required unless the slot assignment has changed or the node configuration has been modified.

Q: Which DeltaV software versions are compatible with this module?
A: The VE4002S1T1B2 has been verified compatible with DeltaV S-series platforms running v11 through v14+. If your site runs an earlier version, contact our technical team with your DeltaV version and node configuration for a pre-shipment compatibility assessment.

Q: How much physical space does the module require in the control cabinet?
A: The module occupies a single standard DeltaV S-series I/O slot. No additional DIN rail space, cable duct modification, or cabinet re-layout is required. The replacement is a direct mechanical swap with no installation space impact.

Q: Can this module replace a discontinued or end-of-life Emerson part number?
A: Yes. The VE4002S1T1B2 is the current active revision and serves as the direct replacement for earlier discontinued DO module variants in the same family, including the KJ3001X1-BA1. TOPNLMS maintains stock specifically to support sites that can no longer source these modules through standard OEM or authorized distribution channels.

Q: What is the lead time and how is the module tested before shipment?
A: In-stock units ship within 1–3 business days from Xiamen. Each module undergoes a pre-shipment functional test covering output channel continuity, backplane connector integrity, and LED status verification. A test report is available upon request for quality documentation purposes.

Q: Is this module suitable for use in safety-instrumented systems (SIS)?
A: The VE4002S1T1B2 is a standard DeltaV DO module and is not rated for SIL-classified safety loops. For SIS applications, consult your DeltaV system integrator regarding the appropriate SIS-certified module variants within the DeltaV SX or CIOC architecture.

Warranty Assurance

Every VE4002S1T1B2 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) scenarios. If a module fails within the warranty period, TOPNLMS will arrange a replacement dispatch or full refund based on the customer’s preference — with no requirement to return the defective unit in advance for time-critical plant situations where production continuity is the priority.

Pre-shipment testing is conducted on 100% of units. Each module is inspected for physical damage, backplane connector pin integrity, and basic functional verification before packaging. Modules are shipped in anti-static packaging with foam protection to prevent transit damage. Tracking information is provided for all shipments, and express courier options including DHL, FedEx, and UPS are available for urgent plant requirements.

Our after-sales response time is within 24 hours on business days. For plant emergencies, priority support is available via WhatsApp and email. TOPNLMS maintains a dedicated stock buffer of high-demand DeltaV modules specifically to support unplanned outage scenarios, reducing your exposure to extended lead times from OEM or authorized distribution channels.

For volume procurement, long-term supply agreements, and consignment stock arrangements, contact our industrial sales team directly to discuss terms tailored to your maintenance and MRO procurement program.
