Emerson TREXLHPNAWS1S Original Industrial Spare Trex Compatible

Product Overview

Emerson TREXLHPNAWS1S Original Industrial Spare Trex Compatible: System Stability Through Reliable Field Communication

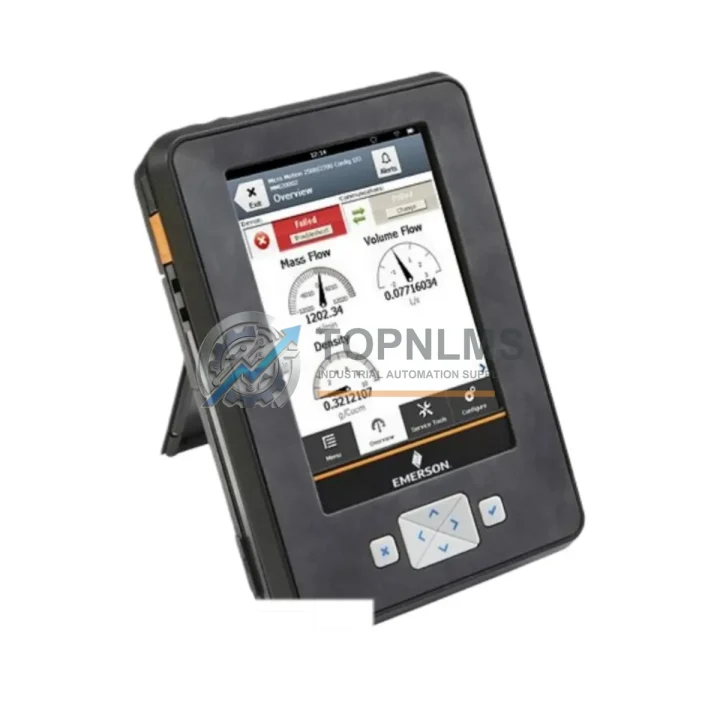

In process automation environments, field communicators are the backbone of instrument maintenance and loop integrity. The Emerson TREXLHPNAWS1S — the AMS Trex Device Communicator Plus with Wireless HART and FOUNDATION Fieldbus (FF) capability — is a mission-critical handheld tool used by instrumentation technicians across oil & gas, chemical, power generation, water treatment, and advanced manufacturing facilities worldwide. Keeping a verified original spare unit in your maintenance inventory is not optional; it is a fundamental pillar of uptime assurance and preventive maintenance strategy.

At TOPNLMS, every TREXLHPNAWS1S unit is sourced from authorized supply channels, individually tested for communication protocol integrity, battery performance, and firmware functionality before dispatch. Each unit ships with a 12-month warranty, full documentation, and is ready for immediate field deployment.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your Instrumentation Loop

When a field communicator fails or is unavailable during a scheduled turnaround, the downstream impact is immediate: calibration tasks stall, loop checks cannot be completed, and instrument configuration changes are blocked. Facilities that maintain a spare TREXLHPNAWS1S in their maintenance crib eliminate this single point of failure entirely.

During routine instrumentation rounds, technicians using the Trex communicator will interact with a broad ecosystem of field devices. A comprehensive preventive maintenance program should account for the health of the entire loop — not just the communicator. When inspecting or replacing the TREXLHPNAWS1S, it is best practice to simultaneously verify the condition of associated components:

The Emerson 3051 Series pressure transmitters are among the most common HART devices configured via the Trex communicator. Their trim values, range settings, and diagnostic alerts should be reviewed during every communicator-assisted inspection cycle. Similarly, Emerson 644 temperature transmitters connected to thermocouple or RTD inputs frequently require re-ranging or sensor type updates — tasks that depend entirely on a functional HART communicator.

In FOUNDATION Fieldbus segments, the Emerson DeltaV FF I/O cards and FF linking devices (such as the Pepperl+Fuchs or MTL segment couplers) define the physical layer of the communication bus. If the TREXLHPNAWS1S is being used to diagnose FF segment issues, the segment coupler, terminator resistors, and cable shielding integrity should all be inspected concurrently. A degraded FF segment power conditioner is a frequent root cause of intermittent device communication failures that are often misattributed to the communicator itself.

For WirelessHART deployments, the Emerson 1420 WirelessHART Gateway serves as the network manager and data aggregation point. Technicians using the TREXLHPNAWS1S to commission or troubleshoot wireless field devices should verify gateway firmware version compatibility and network join status. Alongside the gateway, Emerson 648 WirelessHART temperature transmitters and Rosemount 3308 guided wave radar level transmitters are common wireless endpoints that benefit from periodic communicator-assisted diagnostics.

In control panel environments, the HART multiplexer modules (such as the Emerson HART Tri-Loop or equivalent MUX cards) enable simultaneous HART communication across multiple loops from a central DCS interface. When the field communicator is used for loop-level diagnostics, the MUX card’s channel mapping and polling configuration should be cross-checked to ensure no address conflicts exist. Additionally, signal isolators and HART-transparent barriers — including Zener barriers and galvanic isolators from brands such as MTL or P+F — must be verified for HART signal pass-through compliance, as degraded barriers are a leading cause of communicator connectivity failures in hazardous area installations.

Finally, during any control cabinet inspection involving the Trex communicator, it is advisable to check the condition of instrument loop power supplies (typically 24 VDC), terminal blocks and marshalling panels, and any HART-enabled control valve positioners (such as the Emerson Fisher FIELDVUE DVC6200) that may require firmware updates or diagnostic resets. A holistic approach to loop maintenance — communicator, transmitters, barriers, power supplies, and positioners — dramatically reduces unplanned downtime and extends the operational life of aging instrumentation systems.

Strategic Replacement Solutions

The TREXLHPNAWS1S is the direct successor to the widely deployed Emerson 375 and 475 Field Communicators. Facilities still operating legacy 375/475 units face increasing risk: spare parts availability is declining, battery replacement options are narrowing, and newer HART Device Description (DD) files are no longer being backported to legacy platforms. Migrating to the TREXLHPNAWS1S provides full backward compatibility with all existing HART and FF device DDs while adding WirelessHART capability, a modern touchscreen interface, and significantly improved battery life.

For maintenance managers overseeing multi-site operations, standardizing on the TREXLHPNAWS1S across all facilities simplifies technician training, spare parts pooling, and DD library management. A single communicator model that handles both wired HART, WirelessHART, and FOUNDATION Fieldbus eliminates the need to maintain separate tool inventories for different loop types — reducing procurement complexity and total cost of ownership.

Procurement teams should consider holding a minimum of one spare unit per maintenance zone or per 200 HART/FF field devices, whichever is lower. Given typical lead times for original Emerson instrumentation equipment, maintaining a pre-tested, warranty-covered spare from TOPNLMS ensures that a communicator failure never becomes a production stoppage event.

Support FAQ

Q1: Is the TREXLHPNAWS1S compatible with my existing HART 5, 6, and 7 devices?
Yes. The AMS Trex Device Communicator Plus supports HART protocol revisions 5, 6, and 7, as well as FOUNDATION Fieldbus H1. It is backward compatible with all DD-registered HART devices and can be updated with the latest DD library via the AMS Device Manager software suite.

Q2: What does the 12-month warranty from TOPNLMS cover?
Every TREXLHPNAWS1S unit sold by TOPNLMS is covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing including protocol communication verification, display integrity check, and battery capacity assessment. Warranty claims are handled directly through TOPNLMS with rapid replacement dispatch.

Q3: How do I verify compatibility before deploying this unit in a hazardous area?
The TREXLHPNAWS1S carries Intrinsic Safety (IS) certification for use in Zone 1/2 and Division 1/2 hazardous locations. Before deployment, verify that the area classification matches the unit’s certification documentation. TOPNLMS provides full certification documentation with each shipment. If your facility requires specific regional certifications (ATEX, IECEx, FM, CSA), please contact our technical team prior to ordering.

Q4: What is the recommended spare parts stocking strategy for field communicators?
Industry best practice recommends maintaining at least one spare field communicator per maintenance team or per plant area. For facilities with more than 500 HART/FF instruments, a ratio of one spare per 200 devices is advisable. Pre-tested, warranty-covered units from TOPNLMS can be held in bonded inventory and deployed immediately upon failure, minimizing mean time to repair (MTTR) and protecting production continuity.
