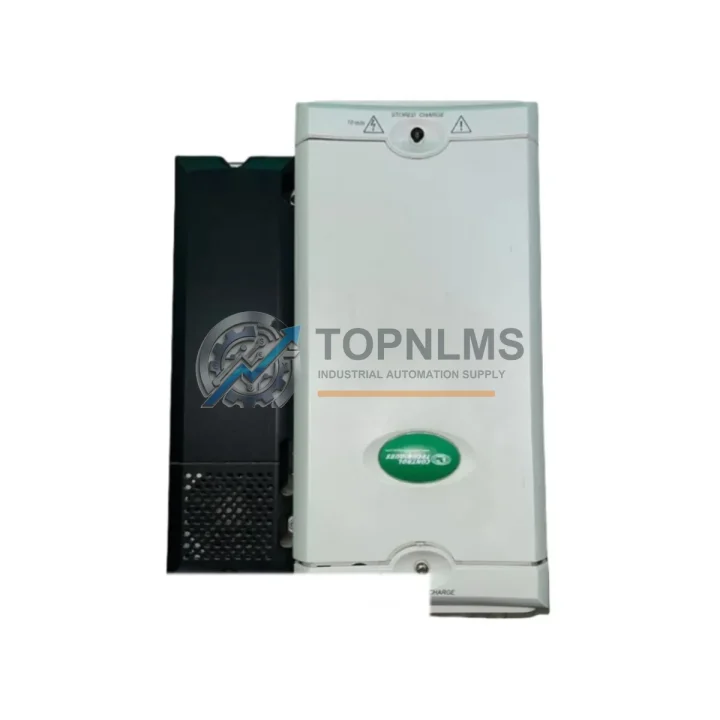

Emerson SPMC1402 Ruggedized Universal I/O Module

Product Overview

Emerson SPMC1402 Ruggedized Universal I/O Module: Industrial Resilience for Harsh Environments

The Emerson SPMC1402 is a high-density, 16-channel Universal I/O Module engineered for the DeltaV Distributed Control System (DCS) platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, vibration-intensive heavy manufacturing floors, and zones with severe electromagnetic interference — the SPMC1402 delivers the signal integrity and uptime that mission-critical operations demand.

As a multi-signal card capable of accepting a wide range of analog and discrete input/output signal types, the SPMC1402 eliminates the need for dedicated single-function I/O cards, dramatically simplifying cabinet wiring, reducing spare-parts inventory, and accelerating commissioning timelines. Its universal channel architecture allows field engineers to reconfigure signal assignments in software without rewiring, making it an exceptionally flexible asset for both greenfield installations and brownfield upgrades.

Rugged Specifications Table

Comprehensive Protection Solutions

The SPMC1402 does not operate in isolation — it is the signal-acquisition backbone of a broader DeltaV control architecture. In a typical heavy-industry control cabinet, the SPMC1402 is installed on a DeltaV I/O Subsystem Carrier alongside the Emerson DeltaV MD Plus Controller or DeltaV M5Plus Controller, which handles real-time process logic and communicates upstream to the operator workstation via the DeltaV network. Power to the I/O subsystem is supplied through a DeltaV Power Supply (PS2), which incorporates redundant power paths to ensure uninterrupted operation even during a single-supply failure.

Field signals arriving at the SPMC1402 are typically marshalled through DeltaV CHARM (Characterization Module) assemblies or traditional terminal blocks, where each channel is individually fused and surge-protected. In safety-instrumented system (SIS) applications, the SPMC1402 may be paired with Emerson DeltaV SIS Logic Solvers and SIS I/O Modules to form a complete IEC 61511-compliant safety loop — covering sensors, final elements, and the logic solver in a unified DeltaV environment.

For process plants running HART-enabled field instruments, the SPMC1402’s analog channels support HART pass-through, enabling asset management via AMS Device Manager without additional multiplexers. Communication between the DeltaV system and third-party PLCs or SCADA platforms is handled by Emerson DeltaV OPC Server or Modbus/PROFIBUS interface modules, ensuring seamless data exchange across heterogeneous control architectures. In facilities where the DeltaV system must coexist with legacy Siemens S7 PLCs, Allen-Bradley ControlLogix controllers, or Yokogawa CENTUM VP DCS nodes, the SPMC1402’s standardized signal handling simplifies integration at the marshalling level.

Surge and transient protection for field wiring connected to the SPMC1402 is typically provided by Phoenix Contact TRABTECH or Weidmüller VSSC series surge protection devices mounted on DIN rail within the same cabinet, guarding against lightning-induced transients and switching surges common in outdoor substations and pipeline pump stations.

Application in Critical Infrastructure

In upstream oil and gas wellhead automation, the SPMC1402 monitors pressure transmitters, temperature sensors, and valve position feedback across multiple wellheads simultaneously. Its ability to handle mixed signal types on a single card reduces the footprint of remote terminal unit (RTU) enclosures deployed in desert heat or arctic cold, where cabinet space and power budgets are tightly constrained.

At natural gas compressor stations and LNG liquefaction terminals, the SPMC1402 is integrated into DeltaV-based emergency shutdown (ESD) systems, where it continuously monitors vibration, temperature, and flow signals from rotating machinery. Its deterministic scan cycle and hardware-level diagnostics allow the DeltaV SIS to detect sensor failures and initiate safe-state actions within the required safety integrity level response time.

In coal-fired and combined-cycle power plants, the SPMC1402 handles boiler drum level, steam pressure, and turbine exhaust temperature signals — environments characterized by high ambient temperatures, steam ingress, and intense electromagnetic noise from large motor drives and transformer banks. The module’s robust EMC design and conformal-coated PCB (where applicable) ensure signal accuracy is maintained without drift over extended operating cycles.

For municipal water treatment and wastewater facilities, the SPMC1402 provides reliable I/O for chlorination dosing control, pump station automation, and effluent quality monitoring. Its low maintenance requirements and long mean time between failures (MTBF) are critical in unmanned remote pump stations where on-site service visits are infrequent and costly.

In metallurgical and steel-making plants, where electric arc furnaces and induction heating systems generate extreme electromagnetic interference, the SPMC1402’s shielded backplane connection and differential signal inputs maintain measurement integrity for thermocouple and RTD inputs monitoring molten metal temperatures and cooling water flow rates.

Security & Quality FAQ

Q1: What warranty coverage is provided with the SPMC1402?
Every SPMC1402 unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and firmware-related issues. Warranty claims are processed with priority turnaround to minimize your plant downtime. Replacement units are dispatched from our Xiamen warehouse upon confirmation of the defect.

Q2: How is each unit tested before shipment?
All SPMC1402 modules undergo a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, power-on functional test verifying all 16 channels respond correctly, communication bus handshake verification with a DeltaV controller emulator, and final firmware version check. Units that do not pass all stages are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the SPMC1402 compatible with my existing DeltaV system version?
The SPMC1402 is compatible with DeltaV system versions v11.x through v15.x and is supported on both S-Series and M-Series controller platforms. It is also compatible with the DeltaV CHARM I/O architecture when used with the appropriate carrier hardware. If you are running an older DeltaV version or a non-standard configuration, our technical team will verify compatibility before order confirmation — simply provide your DeltaV system version and controller model.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains a dedicated inventory buffer of high-demand DeltaV I/O modules including the SPMC1402 to support both planned maintenance schedules and emergency breakdown replacements. We offer expedited shipping to most industrial regions globally, with same-day dispatch available for in-stock units ordered before 3:00 PM CST. For customers with critical infrastructure dependencies, we recommend establishing a blanket purchase order or consignment stock arrangement to guarantee availability during planned turnarounds and unplanned outages.
