EMERSON PR9376/010-011 Replacement for Bently Nevada

Product Overview

EMERSON PR9376/010-011 Replacement for Bently Nevada — Seamless Migration to Proven Proximity Sensing

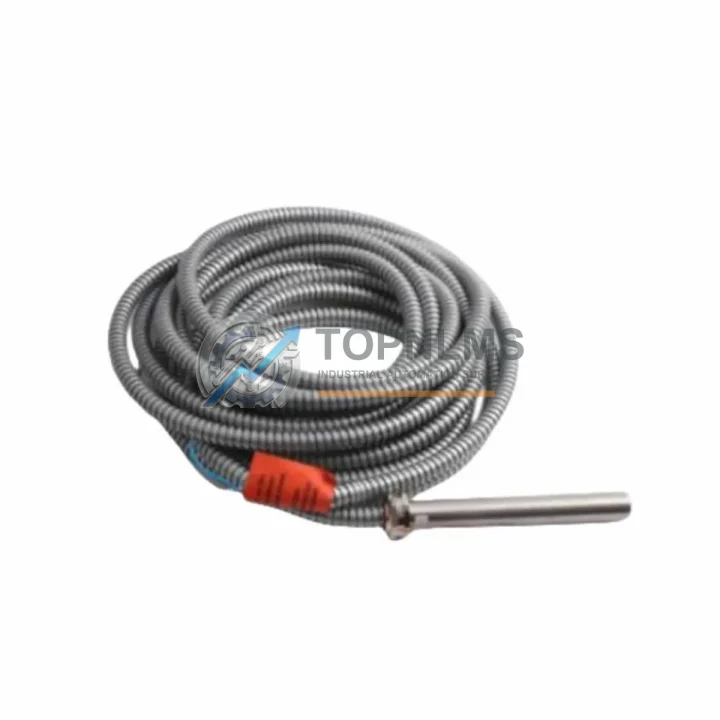

The EMERSON PR9376/010-011 is a high-precision eddy current proximity sensor engineered for continuous, non-contact displacement and vibration measurement in rotating machinery protection systems. As part of the Bently Nevada PR9376 series, this sensor is purpose-built for integration into machinery monitoring architectures where signal integrity, installation repeatability, and long-term reliability are non-negotiable. Whether you are replacing an end-of-life unit on a running production line or executing a planned upgrade from an older Bently Nevada proximity probe assembly, the PR9376/010-011 delivers a validated, drop-in migration path with minimal engineering overhead.

Industrial facilities operating legacy Bently Nevada 3300 series or 7200 series proximity systems frequently encounter the challenge of sourcing compatible replacement sensors as original assemblies age out of manufacturer support. The PR9376/010-011 addresses this directly: its standardized 5 mm sensing range, 8 mm threaded body, and industry-standard output voltage characteristics (-24 VDC supply, -18 VDC nominal output at gap) align with the signal conditioning expectations of Bently Nevada 3300 XL 8mm proximity transducer systems and compatible Proximitor® signal conditioners. Field engineers can retain existing conditioner modules, extension cables, and terminal blocks without rewiring, dramatically reducing commissioning time and the risk of introducing errors during a live plant migration.

When migrating from older proximity probe assemblies, the wiring interface is a primary concern. The PR9376/010-011 uses a standard coaxial connector and is compatible with Bently Nevada extension cables such as the 330130 series, allowing existing cable runs to remain in place. The Proximitor® driver electronics — whether housed in a dedicated 3300 XL Proximitor module or integrated into a 3500/42M Proximitor/Seismic Monitor rack card — continue to function without reconfiguration. This means your existing 3500 series rack infrastructure, including the 3500/20 rack interface module and 3500/22M transient data interface, remains fully operational during and after the sensor swap.

For facilities running DCS-integrated machinery protection, the PR9376/010-011 fits naturally into architectures where the 3500 rack communicates via Modbus RTU or Ethernet to a distributed control system. No changes to the communication protocol layer, tag mapping, or historian configuration are required when performing a like-for-like sensor replacement. This is particularly valuable in continuous process industries — oil refining, petrochemical, LNG compression, and power generation — where any unplanned modification to the control loop carries significant operational risk.

In rotating equipment applications such as centrifugal compressors, steam turbines, boiler feed pumps, and large induction motors, the PR9376/010-011 monitors shaft radial position and relative vibration. It works in concert with velocity sensors, accelerometers, and keyphasor probes to provide the full vibration signature required by API 670-compliant protection systems. When paired with a Bently Nevada 3500/40M proximitor monitor or a 3500/45 position monitor, the sensor’s output feeds directly into trip and alarm logic without any signal scaling adjustment, provided the replacement is performed at the same gap distance as the original installation.

Physical installation is equally straightforward. The PR9376/010-011 retains the same 8 mm body diameter and thread pitch as the standard Bently Nevada 8 mm proximity probe family, meaning existing probe holders, armored conduit fittings, and lock nuts can be reused. Technicians familiar with the standard Bently Nevada probe installation procedure — setting the gap voltage to -10.0 VDC ± 0.2 VDC at the nominal air gap — will find the calibration process identical. No special tooling or proprietary calibration equipment is required beyond a standard digital multimeter and the existing gap-setting procedure documented in the plant’s maintenance management system.

TOPNLMS maintains verified stock of the PR9376/010-011 to support both emergency breakdown replacements and planned maintenance shutdowns. Each unit undergoes pre-shipment functional verification, including output linearity check and insulation resistance test, before dispatch. Units are shipped with full traceability documentation to support your plant’s spare parts management and quality audit requirements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful proximity sensor migration rarely involves a single component. When replacing the PR9376/010-011 in a Bently Nevada-based machinery protection system, the surrounding infrastructure must be evaluated to ensure the entire measurement chain remains calibrated and reliable.

The Bently Nevada 330130-080-00-00 extension cable is the standard interconnect between the proximity probe and the Proximitor driver. If the existing cable shows signs of jacket degradation, connector corrosion, or impedance drift — common in high-temperature or chemically aggressive environments — replacing it alongside the sensor eliminates a latent failure point. Similarly, the Bently Nevada 3300 XL 8mm Proximitor signal conditioner should be inspected for output drift; a worn conditioner can mask a correctly functioning new sensor and produce false alarms or missed trips.

For facilities upgrading to a fully digital protection architecture, the Bently Nevada 3500/42M Proximitor/Seismic Monitor rack card provides the signal processing backbone. When combined with the 3500/20 Rack Interface Module and a 3500/22M Transient Data Interface, the system supports full waveform capture and Modbus/Ethernet communication to the plant DCS or historian — a significant capability upgrade over older analog-only rack configurations.

In applications where the proximity sensor monitors shaft position in addition to vibration, the Bently Nevada 3500/45 Position Monitor provides dedicated thrust position monitoring with configurable alert and danger setpoints. Pairing the PR9376/010-011 with this monitor card in a 3500 series rack delivers a complete axial and radial protection solution for critical rotating equipment.

Where signal isolation between the field device and the control system is required — particularly in hazardous area installations or where ground loop interference is a concern — a Pepperl+Fuchs KFD2-VR4-Ex1.26 signal isolator or equivalent Zener barrier can be inserted in the signal path without affecting sensor calibration. The PR9376/010-011’s output impedance is compatible with standard isolation amplifier input specifications.

Finally, for facilities managing a broader machinery health program, the PR9376/010-011 integrates naturally with EMERSON AMS Machinery Manager software when connected through a 3500 rack with network interface, enabling trend analysis, alarm management, and predictive maintenance scheduling from a centralized platform.

Retrofit Guidance FAQ

Q1: Can I replace the PR9376/010-011 without reconfiguring my Bently Nevada 3500 rack?
Yes. The PR9376/010-011 is a direct functional replacement for standard Bently Nevada 8 mm eddy current probes. Provided the replacement is installed at the same gap distance and the existing Proximitor conditioner is within calibration, no rack reconfiguration, setpoint adjustment, or software change is required. The 3500 rack will recognize the sensor output as within normal operating range immediately upon installation.

Q2: Is the PR9376/010-011 compatible with both 3300 XL and 3500 series Proximitor modules?
Yes. The sensor’s electrical characteristics — supply voltage, scale factor, and output range — are compatible with both the 3300 XL Proximitor and the 3500/42M Proximitor/Seismic Monitor. No jumper changes or module reconfiguration are needed when using this sensor as a replacement in either platform.

Q3: Can I reuse existing extension cables and probe holders during replacement?
In most cases, yes. The PR9376/010-011 uses the same M8 × 1.0 mm thread and standard coaxial connector as the Bently Nevada 8 mm probe family. Existing 330130 series extension cables, armored conduit fittings, and probe holders are directly reusable, provided they are in serviceable condition. TOPNLMS recommends inspecting cable connectors and jacket integrity before reuse.

Q4: What documentation is provided to support my plant’s quality and traceability requirements?
Each PR9376/010-011 unit shipped by TOPNLMS is accompanied by pre-shipment test records confirming output linearity and insulation resistance. Units are packaged with original manufacturer labeling and batch traceability information. This documentation supports ISO 9001-compliant spare parts management and is accepted by most plant quality audit frameworks.

Warranty Assurance

Every EMERSON PR9376/010-011 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, output calibration failures, and connector integrity issues identified under normal operating conditions. Units that fail within the warranty period are eligible for priority replacement dispatch, with TOPNLMS bearing the cost of the replacement unit and standard shipping.

Pre-shipment testing is performed on every unit before dispatch. The test protocol includes output voltage verification at nominal gap, scale factor confirmation, and insulation resistance measurement between the coaxial shield and probe body. Test results are recorded and available upon request to support your incoming inspection process.

TOPNLMS maintains ongoing stock of the PR9376/010-011 to support both emergency and planned procurement. Standard lead time for in-stock units is 3–5 business days for international shipment via DHL Express or FedEx International Priority. Expedited same-day dispatch is available for urgent breakdown situations — contact our technical sales team to confirm availability and arrange priority shipping.

For long-term supply agreements, blanket purchase orders, or consignment stock arrangements, TOPNLMS offers flexible procurement structures designed to support plant maintenance programs with predictable spare parts availability and pricing stability.
