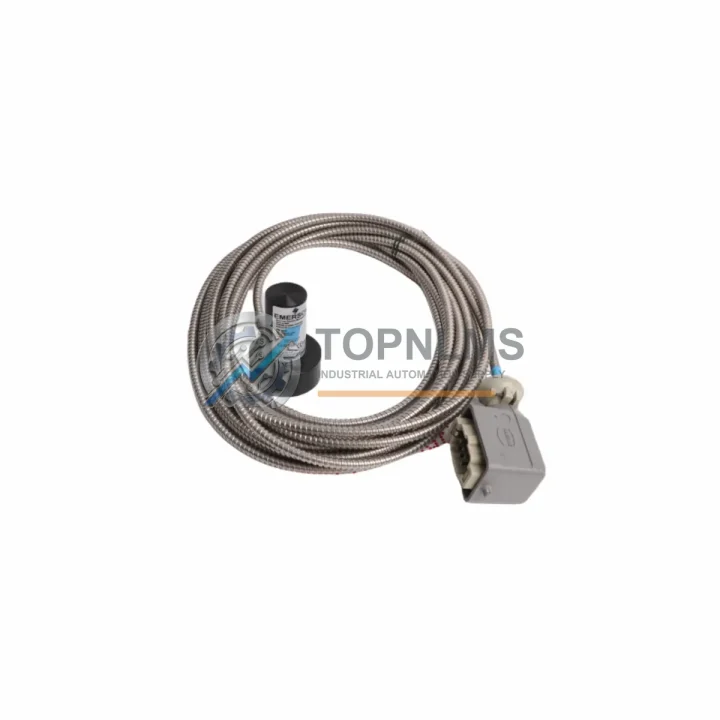

EMERSON PR9268/201-100 Ruggedized Proximity Transducer Module

Product Overview

EMERSON PR9268/201-100 Ruggedized Proximity Transducer Module: Industrial Resilience for Harsh Environments

The EMERSON PR9268/201-100 is a precision eddy-current proximity transducer engineered for continuous, uninterrupted operation in the most demanding industrial environments. As a core sensing component within the Bently Nevada 3500 Series machinery protection and condition monitoring platform, this transducer delivers sub-micron displacement measurement accuracy even under conditions of extreme vibration, elevated temperature, high humidity, airborne particulate contamination, and intense electromagnetic interference (EMI). For plant engineers and procurement specialists sourcing critical spare parts for rotating machinery protection systems, the PR9268/201-100 represents a proven, field-validated solution with a direct replacement pedigree across thousands of global installations.

Designed to IEC and API 670 standards, the PR9268/201-100 operates as part of a three-component measurement chain — transducer, extension cable, and proximitor/oscillator — providing non-contact shaft displacement and vibration signals to the Bently Nevada 3500 rack-mounted monitoring system. Its ruggedized stainless-steel housing, hermetically sealed tip, and oil-resistant cable jacket make it equally suited to turbine bearing pedestals, compressor trains, pump shafts, and gearbox monitoring points where continuous uptime is non-negotiable.

Rugged Specifications Table

Comprehensive Protection Solutions

The PR9268/201-100 does not operate in isolation — it is the sensing front-end of a tightly integrated machinery protection architecture. In a typical turbine or compressor protection loop, this transducer feeds displacement signals into a Bently Nevada 3500/42M Proximitor I/O Module, which conditions and digitizes the signal before passing it to the 3500/20 Rack Interface Module for system-level communication. Alongside the proximity transducer, the 3500/15 Power Supply Module provides stable, isolated DC power to the entire rack, ensuring that voltage fluctuations on the plant bus do not compromise measurement integrity.

For installations requiring velocity-based vibration measurement in parallel with displacement monitoring, the Bently Nevada 330500 Velocity Transducer is commonly deployed on the same bearing housing, with both channels feeding into the 3500 rack simultaneously. In hazardous-area installations — classified Zone 1 or Zone 2 under IEC 60079 — the PR9268/201-100 is paired with Bently Nevada Zener Barrier or Galvanic Isolator modules to maintain intrinsic safety compliance, preventing ignition risk in gas-laden or dust-explosive atmospheres.

At the control system level, the 3500 rack communicates machinery health data to the plant DCS or safety PLC via the 3500/92 Communication Gateway Module, supporting Modbus RTU, Modbus TCP, and OPC protocols. This allows the PR9268/201-100’s vibration and position data to be integrated directly into Emerson DeltaV DCS process control loops or third-party safety instrumented systems (SIS) running on platforms such as the Triconex Tricon Safety Controller. For plants operating Allen-Bradley or Siemens PLCs, the gateway module bridges the machinery protection data into the broader automation network without proprietary lock-in.

Complementary components frequently sourced alongside the PR9268/201-100 include the PR9268/200-100 proximitor/oscillator (the signal conditioning counterpart in the same PR9268 measurement chain), 3500/42 extension cables in 5 m and 9 m configurations, and 3500 Series terminal blocks and field wiring assemblies for clean, code-compliant panel termination. Stocking these components together ensures that a complete transducer chain replacement can be executed during a planned outage window without secondary procurement delays.

Application in Critical Infrastructure

The PR9268/201-100 is deployed across the full spectrum of heavy industrial and critical infrastructure sectors where rotating machinery failure carries severe operational, financial, and safety consequences.

In oil and gas processing — onshore gas compression stations, offshore platform turbine generators, and LNG liquefaction trains — this transducer monitors shaft radial vibration and axial thrust position on high-speed centrifugal compressors and gas turbines operating continuously at elevated temperatures and in hydrocarbon-rich atmospheres. Its IP67 rating and stainless-steel construction resist condensate, H₂S exposure, and salt-laden marine air without signal degradation.

In power generation, the PR9268/201-100 is a standard component on steam turbine-generator sets at coal, gas, and nuclear plants, where API 670-compliant vibration monitoring is a regulatory requirement. Utilities rely on its long-term measurement stability to trend bearing wear, detect rotor imbalance, and trigger protective shutdowns before catastrophic failure occurs.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives operate under extreme shock loading and dust ingress. The ruggedized housing and sealed tip of the PR9268/201-100 maintain measurement accuracy in these environments, providing early warning of bearing deterioration that would otherwise result in unplanned multi-day shutdowns.

In water and wastewater treatment, high-capacity pump stations and blower trains rely on continuous vibration monitoring to meet environmental compliance obligations and prevent service interruptions. The PR9268/201-100’s compatibility with the 3500 platform makes it a direct drop-in replacement for aging transducers without requiring rack reconfiguration or recalibration of the monitoring system.

In metallurgy and steel production, rolling mill drives, blast furnace blowers, and continuous casting equipment operate in environments combining high ambient temperature, heavy vibration, and electromagnetic noise from large motor drives and arc furnaces. The PR9268/201-100’s shielded coaxial construction and high EMI rejection ratio ensure clean signal transmission even in close proximity to variable-frequency drives (VFDs) and high-current bus bars.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects, material failures, and functional non-conformance under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a brief fault description. Replacement units are dispatched from stock to minimize downtime.

Q2: How is each PR9268/201-100 unit tested before shipment?
Every unit undergoes pre-shipment functional inspection including visual examination of the housing, tip, and cable assembly for physical integrity; continuity and insulation resistance testing of the coaxial cable; and verification of the transducer’s static sensitivity and bias voltage output against OEM specification. Units that do not meet specification are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: Is this unit compatible with existing Bently Nevada 3500 racks without reconfiguration?
Yes. The PR9268/201-100 is a direct OEM-equivalent replacement for the standard 8 mm eddy-current transducer used in Bently Nevada 3500 Series systems. It is compatible with 3500/42, 3500/45, and 3500/46 I/O modules and requires no rack reconfiguration, software changes, or recalibration when replacing a like-for-like unit. Confirm the existing proximitor model (PR9268/200-100 or equivalent) to ensure the full measurement chain remains matched.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
TOPNLMS maintains dedicated inventory of Bently Nevada 3500 Series components, including the PR9268/201-100, to support planned maintenance schedules and emergency spare requirements. Blanket purchase orders and scheduled delivery agreements are available for facilities managing multi-unit fleets. Contact our technical sales team to discuss volume pricing, lead time commitments, and consignment stocking arrangements tailored to your maintenance program.
