Emerson PR6423/01R-111 CON031 Upgrade for EPRO Series

Product Overview

Emerson PR6423/01R-111 CON031 Upgrade for EPRO Series: Smooth Transition from Legacy Vibration Monitoring Systems

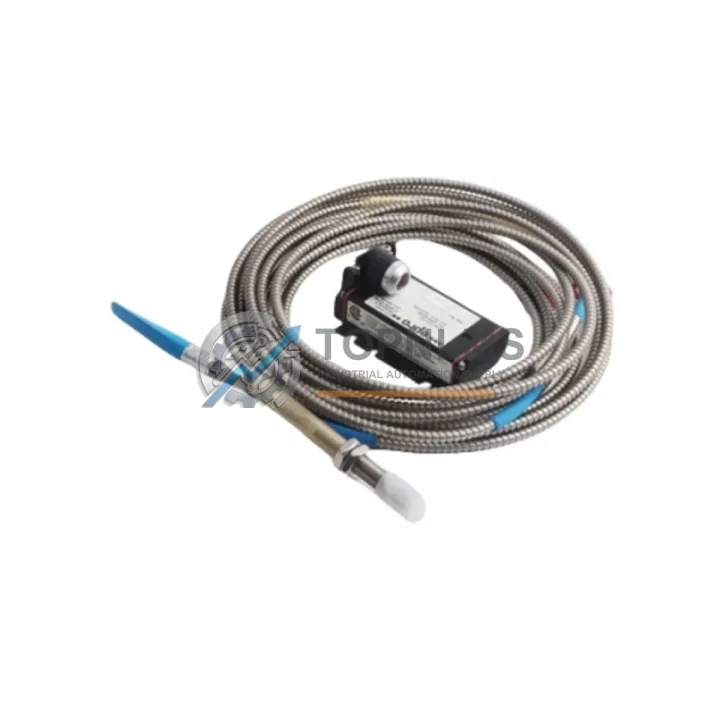

The Emerson EPRO PR6423/01R-111 CON031 is a precision eddy current proximity sensor paired with a dedicated signal conditioner, engineered for continuous shaft vibration, axial displacement, and rotational speed monitoring in critical rotating machinery. As legacy vibration monitoring platforms age out of support cycles — including older Bently Nevada 3300 Series proximitors, early-generation EPRO CON021 and CON041 signal conditioners, and first-generation PR6422 sensor probes — plant engineers and reliability teams are increasingly migrating to the PR6423 platform to maintain measurement accuracy, system compliance, and spare parts availability.

This replacement and upgrade solution is designed to minimize engineering rework. The PR6423/01R-111 probe maintains the standard 8 mm tip diameter and M10 thread form common across the EPRO PR6423 family, allowing direct mechanical substitution in most existing probe holder assemblies without machining or bracket modification. The CON031 signal conditioner outputs a standard –24 VDC gap voltage signal compatible with Emerson Ovation DCS vibration monitoring cards, GE Mark VI turbine control I/O modules, and third-party machinery protection systems that accept industry-standard proximitor output formats.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy vibration monitoring system to the PR6423/01R-111 CON031 typically involves more than a single sensor swap. In most turbine, compressor, and pump protection applications, the PR6423 probe works in conjunction with an EPRO PR9268/200 extension cable to bridge the distance between the probe tip and the CON031 signal conditioner mounted in the control cabinet. Where the original installation used a CON021 conditioner in a DIN-rail enclosure, the CON031 fits the same 35 mm DIN rail without requiring a new mounting bracket.

For plants running Emerson Ovation or DeltaV-based machinery protection, the vibration signal from the CON031 feeds directly into Emerson KJ3201 DeltaV Discrete Input cards or dedicated vibration monitoring I/O modules without signal conditioning adapters. In GE Mark V and Mark VI turbine control environments, the –24 VDC proximitor output is natively accepted by the GE IS200VTURH1B turbine protection I/O module, making cross-platform migration straightforward.

Where multiple measurement points are being upgraded simultaneously — for example, replacing all shaft proximity sensors on a steam turbine train — it is common to also replace the EPRO PR6424 high-temperature probe on the thrust bearing position and the PR6426 speed sensor on the overspeed detection circuit at the same time, consolidating the maintenance window and reducing future downtime risk. The CON031 conditioner is compatible with all standard EPRO PR6423-family probes, so mixed installations during phased upgrades are fully supported.

In control cabinet retrofits where space is constrained, the CON031’s compact DIN-rail footprint allows it to coexist with Phoenix Contact MACX signal isolators or Pepperl+Fuchs KFD2-series signal conditioners already installed for other analog loops, without requiring cabinet expansion. For sites that need to verify sensor calibration after installation, a Bently Nevada 3500/42M proximitor monitor card or equivalent portable calibrator can be used to confirm gap voltage linearity before returning the machine to service.

Retrofit Guidance FAQ

Q: Can the PR6423/01R-111 CON031 replace a CON021 or CON041 conditioner without rewiring?
A: Yes. The CON031 uses the same two-wire –24 VDC supply and the same output signal format as the CON021 and CON041. Terminal assignments are compatible with standard EPRO wiring practices. In most installations, only the conditioner module needs to be swapped; the existing field cable and control system input wiring remain unchanged.

Q: Is the probe mechanically interchangeable with earlier PR6423 revisions?
A: Yes. The M10 × 1.0 thread form and 8 mm tip diameter are consistent across the PR6423 family. The probe can be installed in the existing probe holder using the original locknut. No machining or bracket modification is required in standard installations.

Q: Will the output signal be compatible with my existing vibration monitor or DCS input card?
A: The CON031 outputs a standard –24 VDC gap voltage signal, which is the industry-standard proximitor format accepted by Bently Nevada 3300/3500 series monitors, Emerson Ovation vibration I/O, GE Mark VI turbine protection modules, and most third-party machinery protection systems. No signal conversion is required.

Q: What is the physical installation space requirement for the CON031?
A: The CON031 mounts on a standard 35 mm DIN rail and has a compact housing compatible with typical industrial control cabinet layouts. It can be installed alongside existing DIN-rail components without requiring cabinet expansion in most retrofit scenarios.

Q: How do I verify calibration after replacement?
A: After installation, use a calibrated gap setting tool or a portable proximitor calibrator to verify the –24 VDC output at the nominal gap distance specified for your target material (typically steel). Confirm linearity across the 0–2 mm measurement range before returning the machine to service. The CON031 is factory-calibrated and shipped with a test certificate.

Q: Can this sensor be used in high-temperature environments?
A: The PR6423/01R-111 is rated for standard industrial temperature ranges. For applications with elevated bearing housing temperatures exceeding the standard probe rating, consider the EPRO PR6424 high-temperature variant. Contact our technical team to confirm suitability for your specific application.

Warranty Assurance

Every Emerson EPRO PR6423/01R-111 CON031 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including gap voltage output check, supply current measurement, and physical inspection of the probe tip, cable jacket, and conditioner housing. Units that do not meet specification are not shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Our technical support team responds to warranty claims and application questions within one business day. We maintain stock of PR6423-series sensors and CON031 conditioners to support rapid replacement without extended lead times.

For urgent plant maintenance situations, expedited shipping from our Xiamen warehouse is available to most destinations in Asia, the Middle East, and Europe. All units are shipped with original packaging, a test report, and a packing list suitable for customs clearance and plant maintenance records.

We supply to EPCs, OEMs, plant maintenance teams, and independent service providers. Volume pricing and consignment arrangements are available for long-term procurement partners.
