Emerson PR6423/01K-010 Replacement for Bently Nevada 3300 XL

Product Overview

Emerson PR6423/01K-010 Replacement for Bently Nevada 3300 XL: Seamless Transition from Legacy Proximity Monitoring Systems

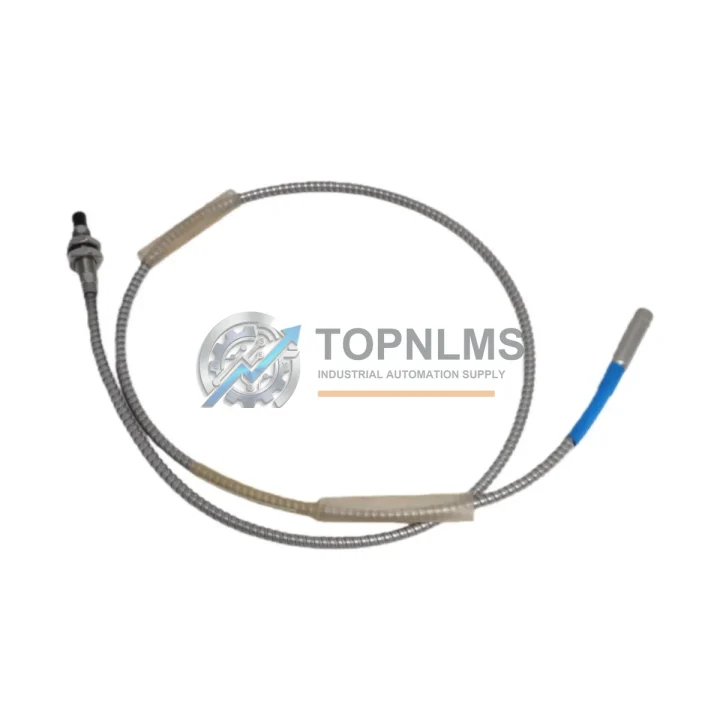

The Emerson PR6423/01K-010 is a high-precision eddy current proximity transducer engineered for the Bently Nevada 3300 XL Series continuous machinery protection system. As aging turbomachinery protection infrastructure reaches end-of-life or faces obsolescence, plant engineers and reliability teams increasingly require a verified, drop-in replacement that preserves existing wiring, signal conditioning architecture, and vibration monitoring logic without forcing a full system overhaul.

This replacement solution is designed specifically for facilities operating legacy Bently Nevada 3300 or 3500 Series monitoring racks where the original PR6423/01K-010 transducer has failed, degraded, or is no longer available through standard OEM channels. Our stock is sourced from authorized supply chains, individually tested prior to shipment, and backed by a 12-month replacement warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a failed or obsolete proximity monitoring loop involves more than replacing the transducer tip alone. In most Bently Nevada 3300 XL installations, the PR6423/01K-010 operates as part of a complete proximity system that includes the 3300 XL 8mm Proximitor® Sensor (signal conditioner), a matched 3300 XL Extension Cable (typically 5 m or 9 m armored), and the 3300/55 Dual Voting Trip Module housed in the monitoring rack. When replacing the transducer, engineers should simultaneously inspect the Proximitor® sensor for drift and verify that the extension cable jacket and connector terminations remain intact — a degraded cable introduces DC bias errors that mimic transducer failure.

For facilities running parallel radial vibration and axial position monitoring on the same shaft, the PR6423/01K-010 replacement is commonly deployed alongside the PR6423/00R-010 (reverse-mount variant) or the PR6424/010-010 for high-temperature applications above 120°C. Where the existing 3300/16-02-01-00-00-00-00 I/O module in the rack has reached its calibration interval, a simultaneous module swap eliminates the need for a second planned outage.

Plants transitioning from older Bently Nevada 7200 Series proximity systems to the 3300 XL platform will find that the PR6423/01K-010 is the preferred entry-point transducer for this migration path. The 7200 Series used a different sensitivity scale factor (100 mV/mil vs. 200 mV/mil), so the 3300 XL Proximitor® Sensor must be reconfigured or replaced — not just the probe — to maintain accurate vibration amplitude readings. Our team can advise on the correct Proximitor® part number for your specific gap and sensitivity requirements.

For control cabinet integration, the transducer signal is typically routed through a 3500/42M Proximitor®/Seismic Monitor or a 3500/25 Enhanced Keyphasor® Module for phase-referenced vibration analysis. If your facility is also upgrading the 3500/22M Transient Data Interface or adding a System 1® Evolution software node for predictive analytics, the PR6423/01K-010 is fully compatible with both legacy and current-generation 3500 rack architectures without firmware changes.

Where signal isolation is required between the proximity loop and a DCS analog input card — common in Yokogawa CENTUM VP or Honeywell Experion PKS integrations — a galvanic signal isolator (4–20 mA loop-powered, DIN-rail mount) can be inserted between the Proximitor® output and the DCS marshalling cabinet without affecting transducer calibration. This approach is also recommended when the monitoring rack and DCS cabinet share different ground references in older plant electrical designs.

Retrofit Guidance FAQ

Q: Can I replace only the PR6423/01K-010 transducer tip without replacing the extension cable or Proximitor® sensor?
A: Yes, in most cases. If the extension cable connector shows no corrosion or mechanical damage and the Proximitor® sensor passes a static calibration check (output voltage within ±0.5 VDC of nominal at the installed gap), the transducer tip can be replaced independently. Always re-gap the new transducer to the manufacturer-specified nominal gap (typically 1.0–1.27 mm / 40–50 mil) after installation and verify the DC output voltage at the Proximitor® before returning the machine to service.

Q: Is rewiring required when replacing the PR6423/01K-010?
A: No. The replacement unit uses the identical M14 × 1.5 thread, coaxial connector, and cable geometry as the original. The existing probe holder, lock nut, and armored extension cable can be reused without modification. Confirm that the extension cable length matches the system design (5 m or 9 m) to maintain the correct system sensitivity.

Q: Will this replacement work with my existing 3300 XL Proximitor® Sensor without reconfiguration?
A: Yes, provided the Proximitor® sensor is already configured for the 8 mm probe system at 200 mV/mil sensitivity. No DIP switch or firmware changes are required. If you are migrating from a 7200 Series system, the Proximitor® must be replaced or reconfigured — contact us for guidance.

Q: How do I verify correct installation before restarting the machine?
A: With the machine at rest, measure the DC voltage at the Proximitor® output terminals. At the nominal gap of 1.0 mm (40 mil), the output should read approximately –10.4 VDC ± 0.5 VDC. Adjust the probe gap using the lock nut until the output falls within this range. Record the as-found and as-left gap values in your maintenance management system before closing the work order.

Q: What communication protocol does the 3300 XL system use for integration with a DCS or SCADA?
A: The 3300 XL Proximitor® Sensor outputs a standard analog DC voltage signal (not a digital fieldbus signal). Integration with a DCS is achieved via the 3500 rack’s analog output cards or via a Modbus RTU / Modbus TCP gateway module installed in the 3500 rack. No changes to the transducer or Proximitor® are required for protocol-level integration.

Q: What is the physical space requirement for installation?
A: The PR6423/01K-010 has a probe body diameter of 14 mm and requires a minimum clearance of 25 mm radially from the shaft centerline to the probe tip face. The existing probe holder and bracket geometry is retained. No additional cabinet space is consumed at the rack level.

Warranty Assurance

Every PR6423/01K-010 replacement unit shipped by TOPNLMS undergoes a pre-shipment functional test that verifies output sensitivity, linearity across the full measurement range, and connector integrity. Units that do not meet Bently Nevada factory specifications are quarantined and not offered for sale.

Our 12-Month Replacement Warranty covers manufacturing defects, sensitivity drift beyond specification, and connector or cable assembly failures under normal operating conditions. In the event of a warranty claim, we ship a replacement unit within 3 business days of claim confirmation — no extended RMA delays. Warranty claims are processed via email at [email protected] with a brief description of the failure mode and installation date.

For procurement teams requiring documentation, we provide a test report, packing list, and commercial invoice with each shipment. Export from Xiamen, China is supported with standard HS code classification for proximity sensors. Lead time for in-stock units is 3–5 business days to most international destinations. For urgent plant shutdowns, contact us directly for expedited air freight options.

We maintain buffer stock of the PR6423/01K-010 and related 3300 XL system components to support unplanned outage scenarios. Bulk procurement pricing is available for MRO stocking programs — contact our sales team for a formal quotation.
