Emerson PR6423/015-030 Replacement for EPRO Series

Product Overview

Emerson PR6423/015-030 Replacement for EPRO Series: Seamless Transition & Legacy System Compatibility

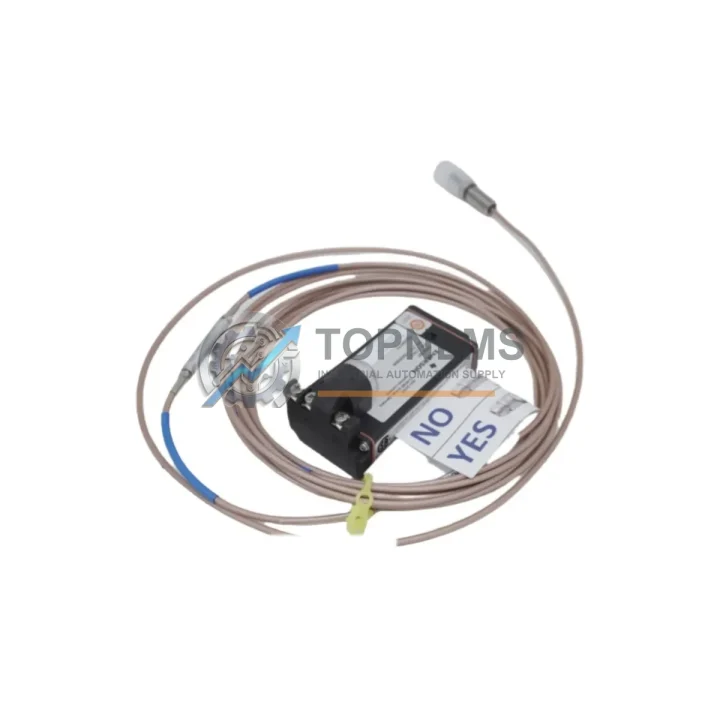

The Emerson PR6423/015-030 is a high-precision eddy current proximity sensor from the industry-proven EPRO Series, widely deployed in turbomachinery protection systems, rotating equipment monitoring, and critical industrial control infrastructure. As legacy EPRO installations age and OEM support windows close, facilities engineers and reliability teams face increasing pressure to source verified replacement units that maintain full backward compatibility with existing wiring harnesses, signal conditioners, extension cables, and vibration monitoring racks — without triggering costly re-engineering or extended plant shutdowns.

This listing provides a direct replacement and upgrade solution for the PR6423/015-030, engineered to slot into existing EPRO-based measurement chains with no modification to field wiring, connector pinouts, or signal conditioning parameters. Whether you are replacing a failed sensor on a gas turbine bearing housing, upgrading a steam turbine shaft displacement loop, or consolidating spare parts inventory ahead of a scheduled outage, the PR6423/015-030 delivers the dimensional accuracy, gap sensitivity, and output linearity your protection system demands.

The PR6423/015-030 operates as a passive eddy current transducer element, designed to work in conjunction with the Emerson EPRO CON021 or CON041 series signal conditioners (proximitors). The sensor’s 8 mm tip diameter and M10 threaded body allow direct installation into existing probe holders and armored extension cable assemblies — including the PR9376 series extension cables — without re-drilling or re-tapping bearing housings. Output sensitivity is factory-calibrated at 8 mV/µm (200 mV/mil) into the standard EPRO signal conditioning chain, ensuring that existing Bently Nevada 3500 series rack cards, or equivalent vibration monitoring systems, receive correctly scaled 4–20 mA or voltage signals without recalibration of trip setpoints.

For facilities migrating from older PR6423/010-030 or PR6423/012-030 variants, the PR6423/015-030 offers an extended 15 mm linear measurement range, improving margin in applications where shaft runout or thermal growth has historically pushed sensors toward the edge of their linear zone. This upgrade path is particularly valuable in high-temperature steam turbine environments where bearing clearances shift over operational cycles. The sensor’s stainless steel housing and high-temperature epoxy potting maintain calibration stability across the full –50 °C to +180 °C operating range, matching or exceeding the thermal envelope of the units it replaces.

During retrofit projects, engineers frequently need to address the full measurement chain simultaneously. The PR6423/015-030 is fully compatible with the Emerson EPRO PR9376/010-110 and PR9376/015-110 armored extension cables, which maintain the coaxial impedance matching required for accurate eddy current measurement over cable runs up to 9 meters. For longer cable runs or installations where the proximitor must be relocated outside the hazardous zone, the PR9376/025-110 extension cable provides additional reach without signal degradation. The CON021 and CON041 proximitor modules, mounted in standard DIN rail enclosures or EPRO rack housings, require no firmware update or parameter change when the PR6423/015-030 is installed as a like-for-like replacement.

In turbomachinery protection architectures built around the Bently Nevada 3500/40M or 3500/42M proximity monitor modules, the PR6423/015-030 integrates directly into the existing channel configuration. No changes to the 3500 rack’s transducer supply voltage (–24 VDC), gap voltage setpoints, or OK limit thresholds are required, provided the replacement sensor is installed at the same gap distance as the original unit. Field commissioning is limited to a gap voltage verification check using a standard digital multimeter, confirming the sensor is operating within the –10 VDC to –18 VDC linear range at the target gap.

For control system modernization projects where the legacy EPRO rack is being retired in favor of a newer Bently Nevada System 1 or Emerson AMS 6500 ATG platform, the PR6423/015-030 remains the preferred sensor element. The System 1 and AMS 6500 platforms accept standard EPRO-compatible transducer inputs, allowing the sensor field wiring and probe installations to be retained while the monitoring rack and software layer are upgraded. This approach minimizes outage duration and eliminates the need to re-qualify sensor mounting positions — a significant advantage in API 670-compliant installations where probe position documentation and calibration records must be maintained.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PR6423/015-030 replacement project rarely involves the sensor alone. In most turbomachinery protection upgrades, the measurement chain from probe tip to monitoring rack must be evaluated as a system. The PR9376/015-110 armored extension cable is the most common companion component, providing the coaxial impedance match between the sensor and the CON021 proximitor over a 1.5-meter run — the standard distance in most bearing housing-to-junction-box installations. Where the proximitor is mounted in a remote enclosure, the PR9376/025-110 extension cable extends the measurement chain to 2.5 meters without affecting output linearity.

The CON021 signal conditioner, housed in a compact DIN rail module, converts the sensor’s raw impedance signal into a calibrated –24 VDC-referenced voltage output compatible with the Bently Nevada 3500 series rack. In installations where the CON041 dual-channel proximitor is already fitted, the PR6423/015-030 connects to either channel without parameter changes. For facilities upgrading to the AMS 6500 ATG platform, the existing CON021 or CON041 modules can be retained in the field junction box, with only the rack-side interface card replaced — preserving the sensor and cable investment entirely.

In control cabinets where space is constrained, the PR6423/015-030’s M10 body and standard EPRO connector profile allow installation in the same probe holder as the original unit, with no modification to cable glands, conduit entries, or terminal block wiring. Where terminal blocks require replacement as part of a broader cabinet refurbishment, Phoenix Contact or Weidmüller DIN rail terminal blocks rated for the –24 VDC signal circuit are fully compatible. Signal isolators, such as those used in installations where the monitoring rack is located in a different electrical zone from the sensor, can be inserted into the measurement chain without affecting sensor calibration, provided the isolator’s input impedance is matched to the EPRO signal conditioning specification.

For facilities managing a broader turbomachinery protection upgrade, the PR6423/015-030 is frequently ordered alongside Keyphasor probes (such as the PR6423/004-030 or PR6423/008-030 variants used for phase reference measurement), radial vibration sensor pairs for X-Y bearing monitoring, and axial displacement sensors for thrust bearing protection. Ordering these components together from a single verified source reduces lead time risk and ensures all sensors in the protection loop are from the same calibration batch — simplifying documentation for API 670 compliance audits.

Retrofit Guidance FAQ

Q: Can I replace my existing PR6423/010-030 with the PR6423/015-030 without changing the extension cable or proximitor?
A: Yes. The PR6423/015-030 uses the same M10 threaded body, EPRO coaxial connector, and –24 VDC supply as the /010-030 variant. The PR9376 series extension cables and CON021/CON041 proximitors are fully compatible. The only field action required is a gap voltage check after installation to confirm the sensor is operating within its linear range at the target gap distance.

Q: Will the Bently Nevada 3500 rack need reconfiguration after sensor replacement?
A: No reconfiguration is required if the replacement sensor is installed at the same gap distance as the original. The 3500/40M and 3500/42M proximity monitor cards use gap voltage OK limits (typically –10 VDC to –18 VDC) that are independent of the specific PR6423 variant. Verify gap voltage with a multimeter after installation and confirm the OK LED is illuminated before returning the machine to service.

Q: What is the communication protocol for the PR6423/015-030?
A: The PR6423/015-030 is a passive eddy current transducer — it does not use a digital communication protocol. The signal conditioning is performed by the CON021 or CON041 proximitor, which outputs a standard analog voltage signal (–24 VDC referenced) to the monitoring rack. Integration with digital platforms such as Emerson System 1 or AMS 6500 ATG is handled at the rack or gateway level, not at the sensor.

Q: Can the sensor be installed in a hazardous area (ATEX/IECEx zone)?
A: The PR6423/015-030 is an intrinsically safe sensor element when used with an approved EPRO proximitor and associated apparatus in accordance with the system’s ATEX/IECEx certification documentation. Verify the specific entity parameters (Ui, Ii, Pi, Ci, Li) against your installation’s hazardous area classification before installation. No modifications to the sensor are permitted in hazardous area installations.

Q: How do I verify the sensor is functioning correctly after installation?
A: After installation, measure the DC voltage at the proximitor output terminal with the target (shaft or test piece) at the nominal gap distance. For a standard EPRO system with –24 VDC supply, the output should be within the –10 VDC to –18 VDC linear range. Compare this reading against the sensor’s calibration curve (supplied with the unit) to confirm sensitivity is within specification. If the 3500 rack’s OK relay is energized and the gap voltage is within the configured OK limits, the sensor is functioning correctly.

Q: What physical space is required for installation?
A: The PR6423/015-030 uses a standard M10 x 1.0 threaded probe body, identical to all PR6423 series variants. No modification to existing probe holders, lock nuts, or armored conduit entries is required. The sensor tip-to-body length is compatible with standard EPRO probe holders used in API 670-compliant installations.

Warranty Assurance

Every PR6423/015-030 unit shipped from TOPNLMS is covered by a 12-month warranty from the date of dispatch. Prior to shipment, each sensor undergoes functional verification including output sensitivity check, insulation resistance test, and connector integrity inspection. Units are individually packaged in anti-static protective packaging with calibration documentation included.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch within 3 business days of fault confirmation, minimizing exposure to extended downtime. Our technical support team is available to assist with installation verification, gap voltage commissioning, and compatibility confirmation for your specific monitoring system configuration.

Stock is maintained in Xiamen, China, with express international shipping available to most industrial regions. Standard lead time for in-stock units is 3–7 business days to major destinations. Expedited shipping options are available for emergency breakdown situations. All units are shipped with full export documentation, including commercial invoice, packing list, and certificate of origin.

For bulk procurement, scheduled delivery agreements, and consignment stock arrangements for maintenance programs, please contact our sales team directly to discuss pricing and logistics options tailored to your facility’s spare parts strategy.
