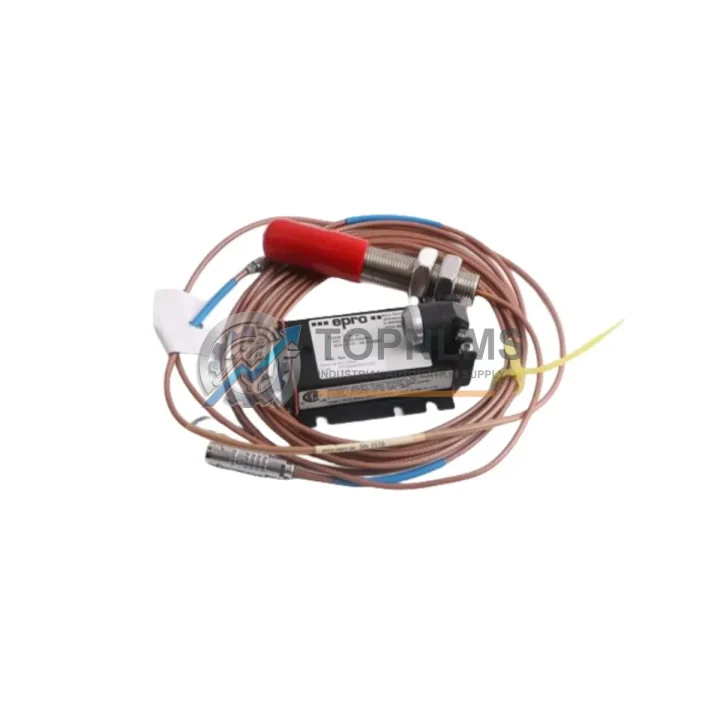

EMERSON PR6423/014-110 CON021 Replacement for Epro Series

Product Overview

EMERSON PR6423/014-110 CON021 Replacement for Epro Series: Smooth Transition from Legacy Vibration Monitoring Systems

When a critical eddy current proximity sensor fails or reaches end-of-life in a turbine protection, compressor monitoring, or rotating machinery application, unplanned downtime is never an option. The EMERSON PR6423/014-110 CON021 is a high-precision eddy current proximity sensor from the Epro Series, engineered for shaft displacement, axial position, and radial vibration measurement in demanding industrial environments. This listing provides a verified replacement or upgrade solution for facilities migrating away from aging Epro hardware, discontinued sensor assemblies, or legacy Bently Nevada-compatible monitoring architectures.

Whether your existing installation uses the PR6423/014-110 CON021 in a single-channel or multi-channel rack configuration, this replacement unit maintains full dimensional, electrical, and signal compatibility with the original Epro Series design. The sensor operates on a standard eddy current principle, generating a voltage output proportional to the gap between the probe tip and the conductive target surface. It is designed for continuous operation in high-temperature, high-vibration, and chemically aggressive environments typical of oil and gas, power generation, and heavy process industries.

For facilities currently running Epro CON021 signal conditioners alongside PR6423 series probes, this replacement integrates directly into the existing conditioner-probe loop without requiring recalibration of the signal chain. The probe cable length, connector type, and sensitivity factor (V/mm) are preserved, ensuring that your existing CON021 signal conditioner continues to deliver accurate gap voltage output to the monitoring system. If the CON021 conditioner itself is also due for replacement, compatible conditioner units are available and can be sourced alongside this probe to complete a full channel replacement.

In turbomachinery protection systems, the PR6423/014-110 CON021 is commonly installed in conjunction with Epro MMS 6350 or MMS 6110 vibration monitoring modules housed in a standard 19-inch rack or DIN-rail enclosure. During a rack-level migration or control system upgrade, it is essential to verify that the new sensor’s sensitivity curve and output range match the input specifications of the monitoring module. This replacement unit meets those requirements, allowing engineers to swap the probe without modifying the monitoring module’s alarm setpoints or trip thresholds.

For plants upgrading from older Bently Nevada 3300 XL or 7200 series proximity systems to Epro-based architectures — or vice versa — the PR6423/014-110 CON021 serves as a reliable bridge component. Its 8 mm probe diameter and standard M10 thread allow installation in existing probe holders and guide bushings without machining modifications. When combined with a compatible Epro extension cable (such as the PR9268 series), the total system length can be adjusted to match the original installation geometry, preserving the calibrated gap distance and sensitivity factor.

In control cabinet environments, the CON021 conditioner is typically powered from a ±24 VDC supply rail shared with other Epro signal conditioners. During a partial system upgrade, it is common to replace individual probe-conditioner pairs while retaining the existing power distribution module and backplane wiring. This replacement sensor is fully compatible with that approach, requiring no changes to the cabinet’s power architecture or terminal block assignments. If the power supply module — such as an Epro PS 6901 or equivalent DIN-rail PSU — is also being replaced as part of a broader modernization project, the new sensor will operate correctly with any regulated ±24 VDC source within the specified tolerance band.

For facilities managing a fleet of rotating machines with mixed sensor generations, maintaining a small buffer stock of PR6423/014-110 CON021 units significantly reduces mean time to repair (MTTR). A single failed proximity sensor in a turbine protection loop can trigger a machine trip, and having a verified replacement on the shelf — pre-tested and ready to install — is a standard best practice in reliability-centered maintenance programs. This unit ships with a test certificate and is inspected prior to dispatch to confirm output linearity, insulation resistance, and connector integrity.

During field installation, the probe tip gap is typically set to the manufacturer’s nominal value (commonly 1.0 mm or 1.5 mm depending on the target material and conditioner model) using a feeler gauge or oscilloscope-based gap voltage measurement. The CON021 conditioner’s output at the nominal gap should read approximately −10 VDC or −12 VDC depending on the configured sensitivity. This replacement unit’s sensitivity factor is consistent with the original specification, so existing gap-setting procedures and commissioning checklists can be followed without modification.

For larger-scale migration projects involving the replacement of an entire vibration monitoring rack — including Epro MMS 6823 keyphasor modules, MMS 6312 axial displacement monitors, or MMS 6220 speed monitors — the PR6423/014-110 CON021 replacement probe is a natural starting point. Replacing sensors first, before upgrading the monitoring modules, allows the plant to validate the new hardware against the existing system baseline before committing to a full rack changeout. This phased approach minimizes risk and allows maintenance teams to build familiarity with the new components during normal operation.

All units are sourced from verified supply channels, stored in controlled conditions, and dispatched with full packaging and documentation. Standard lead time from our Xiamen warehouse is 3–7 business days for international shipments, with express options available for urgent requirements. Each unit is covered by a 12-month warranty from the date of shipment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy Epro proximity system to a fully operational replacement architecture typically involves more than a single sensor swap. In most turbomachinery installations, the PR6423/014-110 CON021 probe works as part of a tightly integrated measurement chain. The CON021 signal conditioner converts the probe’s raw impedance change into a calibrated DC voltage, which is then fed into a monitoring module such as the Epro MMS 6350 dual-channel vibration monitor or the MMS 6312 axial displacement monitor. If either the conditioner or the monitoring module is also due for replacement, sourcing them together with the probe ensures the entire channel is validated as a matched set before installation.

For installations where the probe cable has been damaged or the original integral cable length is insufficient for the new installation geometry, the PR9268 extension cable series provides a compatible solution. These extension cables maintain the system’s calibrated sensitivity factor and are available in standard lengths to bridge the distance between the probe and the conditioner without introducing signal degradation. When replacing the extension cable, it is important to verify that the total system length (probe + extension) remains within the conditioner’s specified operating range.

In rack-based monitoring systems, the Epro MMS series modules are typically housed in a MMS 6000 series rack or equivalent 19-inch enclosure. During a rack-level upgrade, the power supply module — commonly an Epro PS 6901 or a compatible DIN-rail 24 VDC PSU — should be inspected and replaced if it shows signs of aging or voltage drift. A stable, well-regulated power supply is critical for maintaining the accuracy of the eddy current measurement chain, particularly in applications where alarm and trip setpoints are set to tight tolerances.

For plants that also monitor machine speed or phase reference using a keyphasor signal, the Epro MMS 6823 keyphasor module is a common companion component in the same rack. If the keyphasor probe — typically another PR6423 series unit with a different cable length — is also approaching end-of-life, replacing it at the same time as the displacement probe minimizes future maintenance windows. Similarly, if the installation includes an Epro MMS 6220 speed monitor for overspeed protection, verifying the compatibility of the keyphasor signal with the new probe assembly is a standard commissioning step.

For facilities that are migrating from a Bently Nevada 3300 XL system to an Epro-based architecture, the transition typically also involves replacing the 3300 XL 8 mm proximity transducer with an Epro-compatible equivalent and updating the monitoring module’s input configuration. In these cross-platform migrations, having a single-source supplier for both the Epro probe and the legacy Bently Nevada components simplifies procurement and reduces the risk of compatibility mismatches during commissioning.

Retrofit Guidance FAQ

Q: Can I install this replacement probe without recalibrating the CON021 conditioner?
A: Yes. This replacement unit is manufactured to the same sensitivity specification as the original PR6423/014-110 CON021. The conditioner’s output voltage at the nominal gap distance will be within the original calibration tolerance, so no recalibration of the conditioner is required. Standard gap-setting procedures using a feeler gauge or oscilloscope measurement apply.

Q: Is the connector type and wiring pinout identical to the original?
A: Yes. The probe uses the standard Epro Series connector and wiring convention. No modifications to the existing terminal block assignments or conditioner input wiring are required.

Q: Will this probe work with my existing Epro MMS monitoring module without changing alarm setpoints?
A: Yes, provided the gap is set correctly during installation. Because the sensitivity factor is matched to the original specification, the monitoring module’s existing alarm and trip setpoints remain valid. We recommend verifying the gap voltage at commissioning as a standard best practice.

Q: What is the physical installation space requirement?
A: The probe has an 8 mm diameter body with M10 thread, identical to the original. It fits directly into the existing probe holder or guide bushing without any machining or adapter modifications.

Q: Can this probe be used in a Bently Nevada 3300 XL system?
A: The PR6423/014-110 CON021 is an Epro Series component and is designed for use with Epro CON021 conditioners. Cross-platform use with Bently Nevada systems requires careful verification of sensitivity factors and output ranges. Please contact us for application-specific guidance before ordering for a Bently Nevada installation.

Q: What communication protocol does this sensor use?
A: This is an analog sensor. It outputs a DC voltage signal proportional to the probe-to-target gap. There is no digital communication protocol involved. The signal is processed by the CON021 conditioner and fed as an analog voltage to the monitoring module’s input channel.

Q: How do I verify the probe is functioning correctly after installation?
A: Connect the probe to the CON021 conditioner, apply ±24 VDC power, and measure the output voltage at the conditioner’s output terminal. At the nominal gap (typically 1.0–1.5 mm), the output should read within the specified range (approximately −10 to −12 VDC depending on conditioner configuration). Compare against the original commissioning record if available.

Warranty Assurance

Every PR6423/014-110 CON021 replacement unit shipped from TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment inspection that includes visual examination, connector integrity check, insulation resistance measurement, and output linearity verification. A test certificate is included with each shipment.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned item. Our after-sales response time is typically within 24 business hours for warranty inquiries. We maintain buffer stock of common Epro Series components to support rapid replacement dispatch for critical applications.

For procurement teams managing spare parts programs, we can provide batch inspection reports, country-of-origin documentation, and customs HS code declarations upon request. Standard shipping from our Xiamen warehouse is 3–7 business days internationally, with DHL Express and FedEx Priority options available for urgent requirements.

For volume orders, long-term supply agreements, or application-specific technical consultation, please contact our team directly.
