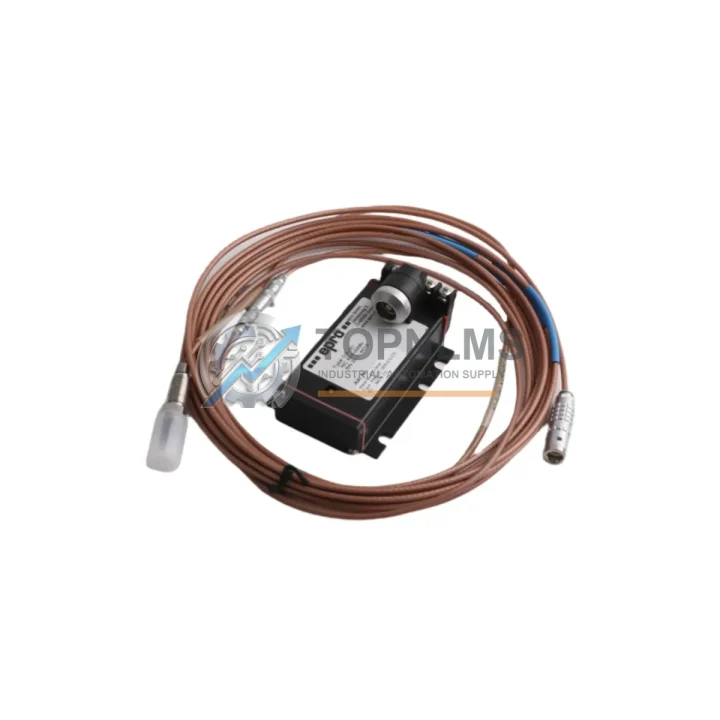

EMERSON PR6423/00R-010-CN Replacement for PR6423 Series

Product Overview

EMERSON PR6423/00R-010-CN Replacement for PR6423 Series: Smooth Transition & Legacy System Compatibility

When your plant’s condition monitoring system relies on the Bently Nevada PR6423 Series eddy current proximity probe, an unplanned failure or end-of-life notice can threaten continuous operation. The EMERSON PR6423/00R-010-CN is a direct-fit replacement and upgrade solution engineered to restore full functionality with minimal intervention — preserving your existing wiring, signal conditioning chain, and vibration monitoring architecture without requiring a full system overhaul.

This probe is designed for non-contact measurement of shaft radial vibration, axial position, and eccentricity in rotating machinery — turbines, compressors, pumps, and generators — where the Bently Nevada 3300 or 3500 Series monitoring systems are already installed. The PR6423/00R-010-CN operates at a nominal gap voltage of −10 VDC and is calibrated for use with the standard Bently Nevada driver/extension cable system, making it a plug-compatible replacement for legacy PR6423 variants across the 5 mm, 8 mm, and 11 mm probe diameter families.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PR6423/00R-010-CN field replacement is rarely a single-component swap. In practice, engineers migrating from an aging Bently Nevada 3300 Series platform to a modernized 3500 Series rack will simultaneously evaluate the condition of the CON021 extension cable and CON041 driver — both of which interface directly with the PR6423 probe tip and must be matched in total cable length to maintain system sensitivity. If the existing extension cable shows insulation degradation or connector corrosion, replacing it alongside the probe eliminates a common source of false vibration alarms.

For plants running a Bently Nevada 3500/42M Proximitor I/O module, the PR6423/00R-010-CN integrates without firmware changes, as the module’s channel configuration already supports the standard −10 VDC output range. Similarly, facilities using the 3500/22M Transient Data Interface for startup and coast-down analysis will find the probe’s dynamic response fully compatible with the module’s sampling requirements.

Where the control cabinet houses a Bently Nevada 3500/15 Power Supply, the −24 VDC rail that feeds the proximity system remains unchanged, so no power derating or supply upgrade is needed during the probe swap. Engineers working on EMERSON DeltaV-integrated machinery protection loops should verify that the 3500/92 Communication Gateway Modbus or OPC-DA tag mapping for the affected channel is preserved after the replacement — a five-minute configuration check that prevents unnecessary alarm suppression during commissioning.

In turbine control cabinets where space is constrained, the PR6423/00R-010-CN’s standard M10 thread and body diameter mean the existing probe holder or proximity probe bracket assembly requires no modification. For applications where the original probe was mounted with a custom standoff, the replacement can be installed using the same gap-setting procedure: set the probe tip to the nominal 1.0 mm gap (approximately −10 VDC output at mid-range) using a calibrated gap tool before tightening the locknut.

Plants transitioning from older EMERSON CSI 6500 machinery health monitors to the 3500 platform will find the PR6423/00R-010-CN a natural fit, as both platforms share the same eddy current probe standard. If your site also operates Keyphasor probes (such as the PR6424 series) for phase reference, those units are unaffected by the PR6423 replacement and continue to provide the once-per-revolution trigger signal to the 3500/25 Keyphasor module without reconfiguration.

Retrofit Guidance FAQ

Q: Do I need to re-calibrate the monitoring system after replacing the probe?
A: In most cases, no full recalibration is required. The PR6423/00R-010-CN is factory-calibrated to the same sensitivity curve (−7.87 V/mm) as the original PR6423 series. You should verify the installed gap voltage at the driver output is within the system’s configured OK limits (typically −10 VDC ± 2 V) and confirm the channel’s alert and danger setpoints remain valid for the new probe’s installed position.

Q: Is the wiring connection identical to the outgoing probe?
A: Yes. The PR6423/00R-010-CN uses the same 3-pin Amphenol coaxial connector as all PR6423 series probes. The extension cable (CON021 or equivalent) connects directly without adapter or pin remapping. Polarity and shield grounding practices remain unchanged.

Q: Can this probe be used with a Bently Nevada 3300 XL monitor?
A: Yes. The 3300 XL 8mm Proximitor system is fully compatible with the PR6423/00R-010-CN. The probe’s output range and sensitivity are within the 3300 XL’s input specification. No jumper or DIP switch changes are required on the monitor card.

Q: What is the maximum total cable length (probe + extension)?
A: The PR6423/00R-010-CN supports a total system cable length of up to 9 meters (probe body + extension cable combined), consistent with the standard Bently Nevada PR6423 system specification. Exceeding this length will shift the system sensitivity and gap voltage calibration.

Q: How do I handle the physical installation in a confined turbine bearing housing?
A: The probe body dimensions are identical to the original PR6423 series. Use the existing probe holder and locknut. Set the gap to the nominal value using a non-ferrous feeler gauge or a calibrated gap-setting tool. Torque the locknut to the manufacturer’s specification (typically 20–25 N·m) to prevent probe migration during operation.

Q: Will replacing the probe affect my DCS or SCADA alarm configuration?
A: No. The probe replacement is transparent to the DCS or SCADA layer. The 3500 monitor continues to output the same 4–20 mA or Modbus register values to the DeltaV or third-party DCS. No tag remapping or alarm limit changes are required unless the new probe’s installed gap differs from the original.

Warranty Assurance

Every PR6423/00R-010-CN unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each probe undergoes output voltage verification, connector integrity inspection, and cable continuity testing to confirm it meets the Bently Nevada PR6423 series specification. Units are shipped in anti-static, padded packaging with a test report included.

If a unit exhibits a defect in materials or workmanship within the warranty period, TOPNLMS will arrange a replacement or full refund — whichever the customer prefers — with no return shipping cost to the buyer. Our technical team is available to support installation questions, gap-setting guidance, and system compatibility verification before and after purchase.

Stock is maintained in Xiamen, China, with standard dispatch within 1–3 business days. Express international shipping (DHL, FedEx, UPS) is available for urgent plant maintenance requirements. For large-quantity orders or blanket purchase agreements, contact our sales team for lead time and pricing commitments.

TOPNLMS supplies industrial automation components to maintenance engineers, MRO procurement teams, and system integrators across Asia, Europe, and the Middle East. All products are sourced through verified supply channels and are accompanied by documentation supporting traceability and incoming inspection.
