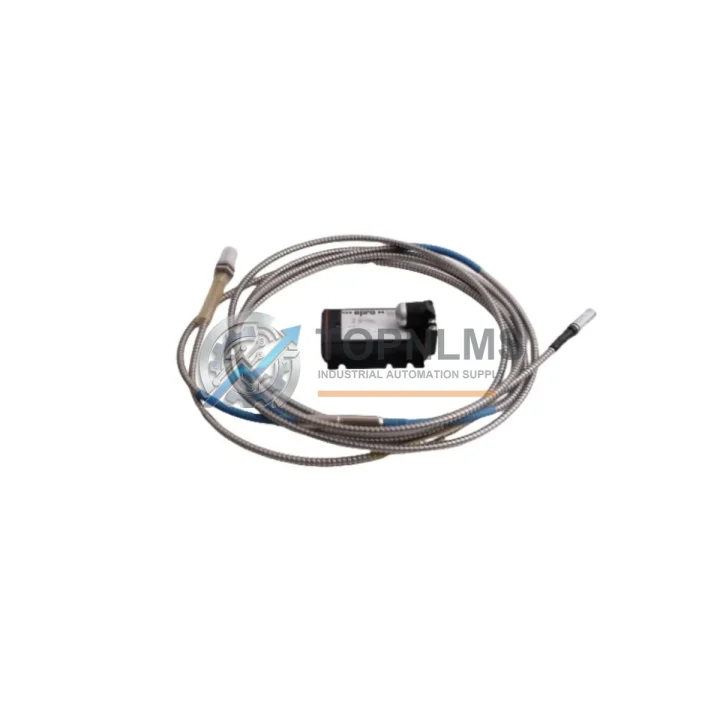

EMERSON PR6423/00E-030 CON021 Replacement Solution

Product Overview

EMERSON PR6423/00E-030 CON021 Replacement Solution: Seamless Transition from Legacy Eddy Current Systems

The EMERSON PR6423/00E-030 paired with the CON021 Proximitor represents one of the most widely deployed non-contact eddy current sensor systems in rotating machinery protection and condition monitoring applications worldwide. As original equipment reaches end-of-life or becomes increasingly difficult to source, plant engineers and reliability teams face the critical challenge of maintaining measurement continuity without disrupting turbine protection loops, compressor monitoring racks, or pump vibration baselines. This replacement solution is engineered to address exactly that challenge — delivering a verified, compatible drop-in upgrade path that preserves your existing wiring infrastructure, signal conditioning architecture, and system calibration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy PR6423/00E-030 + CON021 system rarely involves a single component swap. In practice, plant engineers undertaking a machinery protection upgrade will simultaneously evaluate the condition of adjacent components within the same monitoring rack or control cabinet. The 3300 XL 8mm Proximity Transducer System and the 3300 NSv Proximity Transducer are common co-replacement candidates when the existing probe has accumulated significant runtime hours alongside the PR6423 series.

For sites running a Bently Nevada 3500 Series Machinery Protection System, the CON021 Proximitor feeds directly into 3500/40M or 3500/42M monitor modules. During a rack-level refresh, it is common to simultaneously replace the 3500/20 Rack Interface Module and the 3500/15 Power Supply to eliminate single points of failure in the monitoring chain. If the existing installation uses a TK-RPCN03 or TK-RPCN06 extension cable, verifying cable continuity and connector integrity before commissioning the replacement sensor is strongly recommended.

Sites migrating from older 7200 Series proximity systems to the PR6423 platform will find that the –24 VDC supply architecture and analog voltage output are directly compatible with existing DCS input cards, including Emerson DeltaV SIS analog input modules and Ovation I/O subsystems. No signal scaling changes are required at the historian or safety instrumented system level, which significantly reduces the validation burden during the migration outage window.

Where the control cabinet houses a Keyphasor module (such as the 3500/25 or legacy 7000 Series Keyphasor), the PR6423/00E-030 replacement integrates without modification to the phase reference circuit. This is particularly important for turbine supervisory instrumentation applications where differential expansion, eccentricity, and thrust position channels share the same rack with radial vibration inputs.

For facilities that have already standardized on CSI 2140 Machinery Health Analyzers or AMS Device Manager for route-based data collection, the replacement sensor’s analog output is fully compatible with existing data collection adapters, preserving historical vibration trend data continuity without requiring re-baselining.

Retrofit Guidance FAQ

Q: Will the replacement require any rewiring at the junction box or terminal strip?
A: No. The PR6423/00E-030 replacement uses the same 3-pin connector and –24 VDC supply polarity. Existing field wiring, shielding, and conduit runs are fully reusable. Verify shield grounding at one end only per Bently Nevada installation guidelines.

Q: Do I need to recalibrate the gap after installing the replacement sensor?
A: Yes. A gap check and output voltage verification at the CON021 Proximitor is always recommended after any probe replacement. Target gap is typically 1.0–1.5 mm (40–60 mil) for most shaft applications, yielding approximately –10 to –14 VDC output. Confirm against your original machinery protection setpoint documentation.

Q: Is the replacement compatible with the existing CON021 Proximitor, or does the Proximitor also need replacement?
A: The replacement probe is designed to operate with the existing CON021 Proximitor. If the Proximitor itself shows drift, output noise, or supply current anomalies, we recommend replacing both units simultaneously to avoid a second outage window.

Q: What communication protocol does this sensor system use?
A: The PR6423 + CON021 system outputs a standard analog DC voltage signal (–200 mV/mil sensitivity). It does not use a digital fieldbus protocol. Integration with HART, PROFIBUS, or Modbus systems requires an appropriate signal converter or I/O module at the DCS or safety system level.

Q: How much physical space does the replacement require in the control cabinet?
A: The CON021 Proximitor mounts in a standard DIN rail or panel-mount configuration identical to the original. No additional cabinet space is required. Probe body dimensions are matched to the original PR6423/00E-030 specification.

Warranty Assurance

Every PR6423/00E-030 CON021 replacement unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional output verification, gap sensitivity testing, and supply current measurement to confirm compliance with the original EMERSON specification. Units that do not meet specification thresholds are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of fault confirmation, minimizing the impact on your plant availability. Our technical support team is available to assist with installation verification, gap setting guidance, and output signal troubleshooting throughout the warranty period.

Stock is maintained in Xiamen, China, with established export documentation for DDP and DAP shipments to industrial customers in Southeast Asia, the Middle East, Europe, and the Americas. Lead time for in-stock units is typically 3–7 business days to most destinations.

For volume procurement, long-term supply agreements, and approved vendor qualification documentation, contact our sales team directly.
