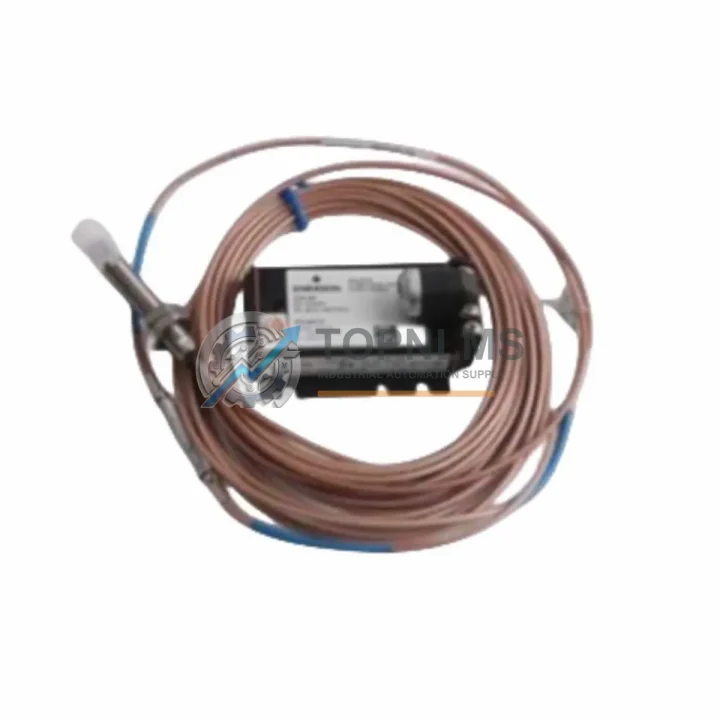

EMERSON PR6423/003-130 Replacement for 3300 Series

Product Overview

EMERSON PR6423/003-130 Replacement for 3300 Series: Seamless Transition & Legacy System Compatibility

Upgrading or replacing a failed EMERSON PR6423/003-130 eddy current proximity probe does not have to mean extended downtime or costly system redesigns. The PR6423/003-130 is a precision non-contact displacement sensor engineered for the EMERSON 3300 Series vibration monitoring platform, and sourcing a verified replacement through TOPNLMS ensures your rotating machinery protection system returns to full operation with minimal disruption to wiring, programming, or physical installation.

The PR6423/003-130 operates on the eddy current principle, generating a high-frequency electromagnetic field that responds to changes in the distance between the probe tip and a conductive target surface — typically a shaft or journal. This makes it the preferred sensor for radial vibration, axial position, and differential expansion measurements in turbines, compressors, pumps, and large rotating equipment. When the original probe degrades, is physically damaged, or reaches end-of-life, a like-for-like replacement preserves the calibration relationship with the paired extension cable and proximitor driver, avoiding the need to reconfigure the 3300 Series monitor cards or reprogram alarm setpoints in the DCS or safety system.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PR6423/003-130 replacement is rarely a single-component swap. In practice, field engineers replacing a worn or damaged probe will also inspect the paired PR6426 extension cable for insulation breakdown or connector corrosion, since a degraded cable introduces gap voltage errors that mimic probe failure. The PR9376 proximitor module — the signal conditioning driver housed in the 3300 Series rack — should be verified for output linearity before the new probe is commissioned; a faulty proximitor will cause the replacement probe to report incorrect gap voltages regardless of probe condition.

For sites running the 3300 XL 8mm proximity system, the entire measurement chain — probe, extension cable, and proximitor — must be calibrated as a matched set. TOPNLMS can supply matched PR6423 probe and PR6426 cable assemblies to simplify this process. Where the existing 3300 Series monitor rack card slots are involved, engineers should confirm that the I/O termination board accepts the replacement probe’s connector pinout without adapter modification.

Plants migrating from older 7200 Series proximity systems to the 3300 platform will find the PR6423/003-130 a natural fit, as the 3300 architecture supports direct rack integration with 3500 Series machinery protection system modules for expanded channel capacity. In turbine protection applications, the PR6423 probe is frequently installed alongside 330180 velocity sensors and 330500 accelerometers to provide a complete vibration and position monitoring suite within a single 3300 rack. For axial thrust measurement, the PR6423/003-130 is often paired with a second probe in a differential configuration, both feeding into a 3300/20 position monitor card.

Control cabinet space is rarely a concern with the PR6423 form factor — the M8 body and 3 m integral cable route cleanly through standard cable glands and conduit, and the probe boss dimensions are identical to the original, eliminating the need for machining or adapter plates during a like-for-like swap.

Retrofit Guidance FAQ

Q: Will the PR6423/003-130 replacement require recalibration of the 3300 monitor?
A: If the replacement probe is from the same PR6423 series and paired with the original PR6426 extension cable and PR9376 proximitor, the system sensitivity (V/mm) remains within specification and recalibration is typically not required. If any element of the measurement chain is changed, a full gap calibration is recommended.

Q: Is the wiring pinout identical to the original?
A: Yes. The 3-pin MIL-spec connector and integral cable color coding are identical to the original PR6423/003-130, allowing direct reconnection to the existing junction box or proximitor input terminals without wiring modification.

Q: Can this probe be used with a 3500 Series monitor?
A: The PR6423 probe is natively compatible with 3300 Series monitors. Use with 3500 Series requires verification of the proximitor driver compatibility; in many installations, the PR9376 proximitor bridges both platforms.

Q: What is the lead time and shipping arrangement?
A: Units are stocked in Xiamen and ship within 1–3 business days via DHL, FedEx, or UPS. Express delivery to most industrial sites in Asia, Europe, and the Americas is available. Emergency same-day dispatch can be arranged for critical plant shutdowns.

Q: What if the replacement probe does not perform as expected?
A: TOPNLMS provides a 12-month warranty covering manufacturing defects and performance deviations. A replacement or full refund is issued after remote diagnostic review. Our technical team can assist with gap voltage verification and system commissioning support.

Warranty Assurance

Every PR6423/003-130 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each probe undergoes output linearity verification and connector integrity inspection. Should any unit fail to meet the PR6423 series performance specification within the warranty period, TOPNLMS will arrange a replacement shipment or issue a full refund — no lengthy RMA process required.

Our procurement guarantee includes: pre-shipment functional testing, original or OEM-equivalent packaging, traceable batch documentation, and post-sale technical support for installation and commissioning queries. For plant maintenance teams managing critical rotating equipment, this means you can order with confidence, knowing that your spare parts inventory is backed by a supplier with direct experience in industrial control system components.

Contact our sales team at [email protected] or call +86 18359293191 to confirm stock availability, request a datasheet, or discuss matched-set probe and cable assemblies for your specific 3300 Series installation.
