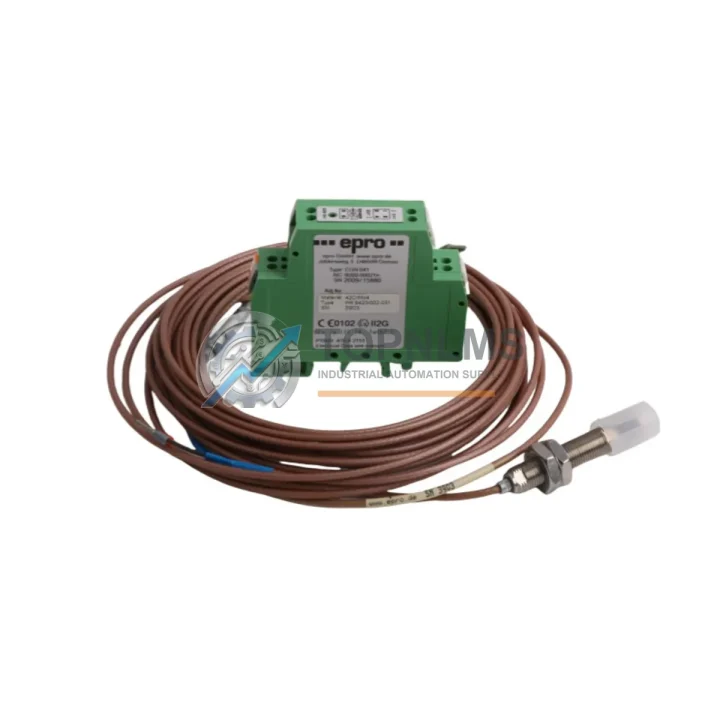

EMERSON PR6423/002-031 CON041 Replacement for Epro Series

Product Overview

EMERSON PR6423/002-031 CON041 Replacement & Upgrade Solution for Epro Series

Upgrading or replacing a legacy turbomachinery vibration monitoring system is one of the most critical decisions in industrial plant maintenance. The EMERSON PR6423/002-031 CON041 — a precision eddy current proximity probe paired with its dedicated signal conditioner — is a cornerstone component in Epro Series continuous vibration monitoring architectures. Whether your existing PR6423 probe has reached end-of-life, suffered cable damage, or your plant is migrating from an older Bently Nevada 3300 Series or 7200 Series installation, this replacement set delivers a smooth, validated transition with minimal engineering rework.

The PR6423/002-031 probe features a 5 mm tip diameter, 8 mm thread body, and a standard 1-meter extension cable, operating within the Epro -24 VDC driver ecosystem. The CON041 signal conditioner accepts the raw probe output and delivers a calibrated -4 VDC/mm linear output signal directly compatible with EMERSON Epro MMS 6000, MMS 3120, and MMS 6110 vibration monitoring modules. This means your existing rack wiring, terminal blocks, and DCS analog input cards — whether running on a Yokogawa CENTUM VP, ABB System 800xA, or Honeywell Experion PKS — can accept the conditioned signal without modification to the I/O mapping or scaling parameters.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy vibration monitoring platform to the EMERSON Epro PR6423/002-031 CON041 rarely involves a single component swap. In practice, plant engineers undertaking a turbomachinery protection system retrofit will typically evaluate the entire signal chain. The PR6423/002-031 probe integrates directly with the CON041 signal conditioner, which in turn feeds into the EMERSON MMS 6000 Series monitoring rack — a modular platform that accepts plug-in cards such as the MMS 6110 radial vibration module and the MMS 6120 axial position module, both of which share the same -24 VDC driver bus and DIN rail footprint as the legacy installation.

For plants running older PR6422 Series probes with CON011 or CON021 conditioners, the upgrade path to PR6423/002-031 CON041 is straightforward: the conditioner housing dimensions and terminal block pinout are preserved, so the existing control cabinet wiring harness and cable glands require no modification. Engineers should also verify the PR6424 extension cable routing if the probe-to-conditioner distance exceeds 1 meter — the PR6424 is the recommended Epro-series extension cable that maintains the system’s calibrated sensitivity of 7.87 V/mm.

In DCS-integrated installations, the CON041 output connects to the analog input terminals of the EMERSON Ovation I/O module or third-party DCS analog input cards. Where signal isolation is required between the vibration monitoring rack and the DCS marshalling cabinet, a PR9376 signal isolator is commonly inserted in-line — this is particularly relevant in older plants where ground loop interference was a known issue with the previous CON021-based installation. The PR9376 preserves the ±10 V output range and adds galvanic isolation without introducing phase shift at frequencies below 10 kHz.

For complete system commissioning, the EMERSON CSI 2140 portable machinery analyzer or the legacy CSI 2130 can be used to verify gap voltage, sensitivity, and frequency response of the installed PR6423/002-031 CON041 set before the system is handed back to operations. Plants that also manage keyphasor signals should note that the PR6423 keyphasor variant (PR6423/010-031) uses the same CON041 conditioner and can be installed in the same rack slot, simplifying spare parts inventory management across the turbine train.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring when replacing a Bently Nevada 3300 XL probe with the PR6423/002-031?
A: In most cases, yes. The PR6423/002-031 uses the same M10 × 1.0 thread, -24 VDC supply, and -4 VDC/mm output convention as the 3300 XL 8mm probe. The CON041 conditioner terminal block layout is compatible with standard Epro and Bently Nevada field wiring practices. Verify the cable shield grounding point at the conditioner end before energizing.

Q: Do I need to reconfigure my DCS analog input scaling after the swap?
A: No scaling change is required if your DCS is already configured for a -4 VDC/mm sensitivity and a nominal gap of -10 VDC at 2.0 mm. The CON041 output is factory-calibrated to match this convention. If your legacy conditioner was a CON011 or CON021 with a different sensitivity trim, a one-time re-calibration of the DCS engineering unit conversion is recommended.

Q: Is the CON041 compatible with the MMS 3120 monitoring module?
A: Yes. The MMS 3120 accepts the standard Epro conditioner output range of 0 to -24 VDC and is fully compatible with the CON041. No firmware update or hardware modification to the MMS 3120 is required.

Q: What is the physical installation clearance required for the PR6423/002-031 in a confined turbine bearing housing?
A: The PR6423/002-031 has an 8 mm tip diameter and requires a minimum radial clearance of 12 mm from the probe tip to the nearest obstruction. The M10 thread allows fine gap adjustment. Ensure the locknut is torqued to 15 N·m after final gap setting to prevent probe migration during operation.

Q: Can this set replace a PR6422/010-031 CON021 without changing the monitoring rack?
A: Yes, with a minor conditioner swap. The PR6423/002-031 CON041 set replaces the PR6422/010-031 CON021 set on a one-for-one basis. The MMS rack slot, DIN rail position, and terminal block connections are preserved. Only the conditioner module itself is exchanged.

Q: What communication protocol does the CON041 output support?
A: The CON041 provides a DC voltage output (0 to -24 VDC proportional to gap) and a buffered output for oscilloscope or spectrum analyzer connection. It does not natively output 4–20 mA or HART; a signal converter such as the PR9376 is required for 4–20 mA DCS integration.

Warranty Assurance

Every EMERSON PR6423/002-031 CON041 set shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each probe and conditioner set undergoes bench testing including gap voltage verification, sensitivity calibration check, and insulation resistance measurement. Units that do not meet EMERSON Epro factory specifications are quarantined and not shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund — your choice. Our average response time for warranty claims is under 48 hours. Replacement units are dispatched from our Xiamen warehouse via DHL Express or FedEx International Priority, with typical transit times of 3–5 business days to most industrial destinations worldwide.

For urgent plant shutdowns or unplanned outages, we maintain a dedicated emergency stock allocation for PR6423 Series components. Contact our technical sales team directly to confirm real-time availability and expedited dispatch options.

All units are shipped with original manufacturer documentation, calibration records, and a TOPNLMS inspection certificate. Customs documentation for HS Code 9031.80 (measuring/checking instruments) is prepared as standard for international shipments.
