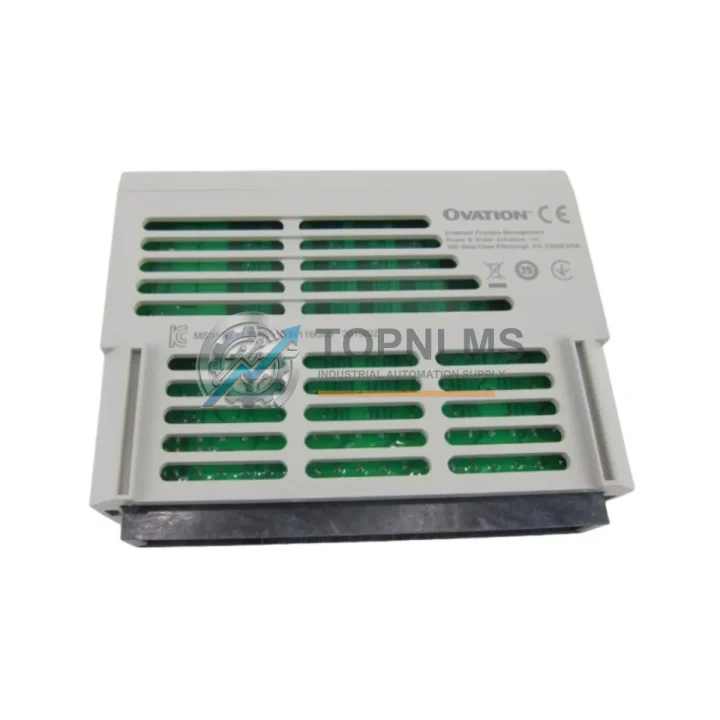

Emerson OVATION 1C31116G05 Ruggedized Digital Input Module

Product Overview

Emerson OVATION 1C31116G05 Ruggedized Digital Input Module: Industrial Resilience for Harsh Environments

The Emerson OVATION 1C31116G05 is a 32-channel digital input module engineered for the Ovation Distributed Control System (DCS) platform — one of the most trusted process automation architectures deployed across power generation, oil & gas, water treatment, and heavy industrial facilities worldwide. Designed to operate continuously in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the 1C31116G05 delivers the signal integrity and system availability that mission-critical operations demand.

In continuous production environments where unplanned downtime translates directly into safety incidents and financial loss, the 1C31116G05 provides the deterministic digital input scanning that Ovation DCS controllers depend on for real-time process monitoring. Its ruggedized PCB construction, conformal coating, and robust backplane connector interface ensure reliable operation even when installed in control cabinets exposed to industrial-grade vibration, corrosive atmospheres, or high-density electrical noise from adjacent variable frequency drives (VFDs), motor starters, and high-current bus bars.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1C31116G05 does not operate in isolation — it is a critical node within a broader Ovation DCS architecture that must function as a cohesive, fault-tolerant system. In a typical Ovation control cabinet, this digital input module works in close coordination with the Emerson OVATION 1C31107G01 digital output module, which drives field actuators and solenoid valves based on the discrete signals captured by the 1C31116G05. Together, these two I/O modules form the backbone of discrete process control loops in boiler management, turbine protection, and emergency shutdown (ESD) sequences.

For analog process variables — temperature, pressure, flow, and level — the 1C31116G05 is typically deployed alongside the Emerson OVATION 1C31122G01 analog input module, ensuring that both continuous and discrete process data are delivered to the Ovation controller with equal reliability. The Ovation controller itself, such as the Emerson OVATION 5X00070G01 controller module, processes all I/O data and executes the control strategy, making the integrity of every upstream I/O module — including the 1C31116G05 — directly consequential to plant safety.

Power supply stability is equally critical. The Emerson OVATION 1X00024H01 power supply module provides the regulated 24 VDC rail that feeds the I/O subsystem, and any instability in this supply will directly affect the signal quality of the 1C31116G05’s input channels. In high-noise environments, the Emerson OVATION 1C31234G01 communication module handles the high-speed data exchange between the I/O chassis and the controller network, ensuring that digital input states captured by the 1C31116G05 are transmitted without latency or data corruption.

For plants requiring functional safety compliance, the 1C31116G05 is often paired with dedicated Emerson OVATION safety I/O modules and SIL-rated relay output modules to form a layered protection architecture. Terminal modules and marshalling panels — including the Emerson OVATION 5X00106G01 termination assembly — provide the field wiring interface, protecting the 1C31116G05’s input circuitry from transient overvoltages and wiring faults originating in the field. Surge protection terminal blocks and EMI filter modules installed at the cabinet entry point further shield the entire I/O subsystem from lightning-induced surges and conducted interference from heavy machinery.

Application in Critical Infrastructure

The Emerson OVATION 1C31116G05 has earned its place in some of the most demanding industrial environments on the planet. In coal-fired and gas-fired power plants, it monitors the discrete status of hundreds of field devices — valve position switches, motor run/stop feedbacks, pressure switch contacts, and flame detector outputs — feeding real-time plant state data to the Ovation DCS for turbine control and boiler protection. A single missed or corrupted digital input in these applications can trigger a spurious trip or, worse, mask a genuine fault condition, making the 1C31116G05’s optical isolation and self-diagnostic capabilities non-negotiable.

In oil and gas processing facilities and LNG terminals, where hazardous area classifications demand the highest standards of electrical integrity, the 1C31116G05 is deployed in pressurized control rooms and Ex-rated enclosures to monitor wellhead safety valves, compressor status, and pipeline isolation valve positions. Its ability to maintain signal integrity in the presence of high-frequency EMI from variable speed compressor drives and high-voltage switchgear makes it the preferred choice for upstream and midstream automation engineers.

Water and wastewater treatment plants rely on the 1C31116G05 to monitor pump run/fail status, level switch contacts, and chemical dosing system feedbacks across geographically distributed pump stations. The module’s wide operating temperature range and humidity tolerance make it equally suitable for outdoor control kiosks in tropical climates and heated control rooms in arctic installations.

In metallurgical and mining operations — where vibration from crushers, conveyors, and ball mills is constant, and airborne conductive dust poses a persistent contamination risk — the conformal-coated PCB of the 1C31116G05 provides a critical barrier against premature failure. Maintenance teams in these facilities consistently cite the module’s long mean time between failures (MTBF) and straightforward hot-swap replacement procedure as key factors in their spare parts standardization decisions.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Emerson OVATION 1C31116G05?
Every 1C31116G05 unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support to assist with installation verification, fault diagnosis, and warranty claim processing. Replacement units are dispatched promptly to minimize plant downtime.

Q2: How is each unit tested before shipment?
All 1C31116G05 modules undergo a multi-stage pre-shipment inspection process that includes visual inspection for physical damage, functional power-on testing, channel continuity verification, and backplane connector integrity checks. Units sourced from OEM-authorized channels are verified against Emerson’s original part numbering and revision documentation. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the 1C31116G05 compatible with all revisions of the Emerson Ovation DCS platform?
The 1C31116G05 is designed for the Emerson Ovation I/O subsystem and is compatible with Ovation DCS versions that support the standard Ovation I/O chassis and backplane architecture. Compatibility with specific Ovation software versions and controller hardware revisions should be confirmed against your plant’s Ovation system documentation. Our technical team can assist with compatibility verification based on your system’s controller model and I/O chassis configuration.

Q4: Can TOPNLMS support long-term supply and emergency replacement requirements?
Yes. TOPNLMS maintains a dedicated inventory of Emerson Ovation I/O modules, including the 1C31116G05, to support both planned maintenance schedules and emergency breakdown replacements. We understand that legacy DCS platforms often face obsolescence challenges, and our procurement network is structured to source genuine modules for plants that require long-term spare parts continuity. Emergency orders with expedited shipping are available — contact our team directly to discuss your specific requirements.
