Emerson KL4201X1-BA1 Original Industrial Spare DeltaV Compatible

Product Overview

Emerson KL4201X1-BA1 Original Industrial Spare DeltaV Compatible: System Stability & Industrial Spare Maintenance Value

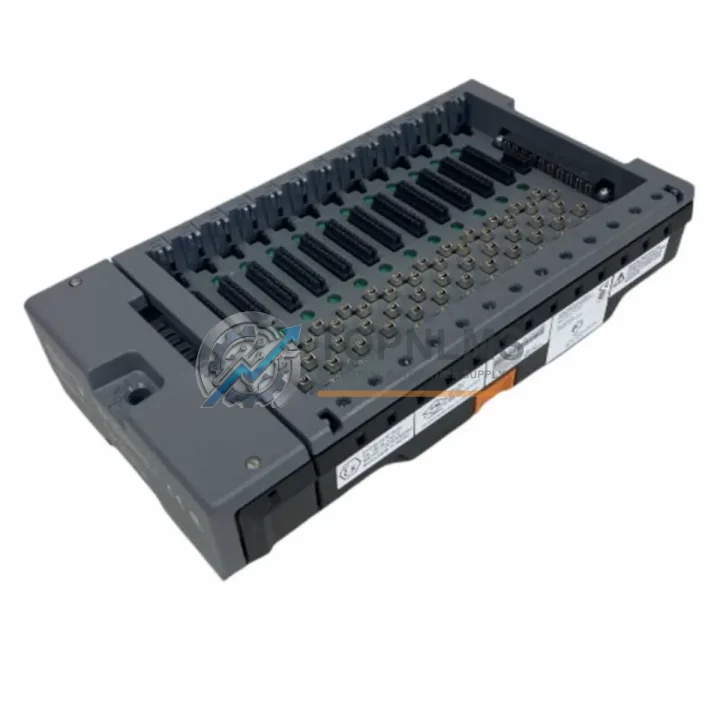

The Emerson KL4201X1-BA1 is an original DeltaV series DCS I/O base plate carrier module engineered for continuous-duty industrial control environments. As a foundational hardware component within the DeltaV distributed control architecture, this base plate provides the mechanical and electrical interface between I/O modules and the DeltaV controller backplane. Maintaining a verified spare of the KL4201X1-BA1 in your critical spares inventory is one of the most cost-effective strategies for reducing unplanned downtime in process-critical facilities including chemical plants, oil & gas terminals, power generation stations, and pharmaceutical manufacturing lines.

When a DCS base plate fails — whether due to connector wear, thermal fatigue, or surge damage — the entire I/O node it supports goes offline. Without a pre-qualified replacement on hand, engineering teams face lead times that can stretch from days to weeks, translating directly into lost production and emergency procurement premiums. The KL4201X1-BA1 eliminates that risk: it ships tested, verified, and ready for immediate installation.

Critical Technical Specs

Preventive Maintenance Strategy

A DCS base plate does not operate in isolation — it is the structural and electrical hub of an entire I/O node. During scheduled shutdowns or predictive maintenance inspections, maintenance engineers should treat the KL4201X1-BA1 replacement as part of a broader node-level audit. Begin by inspecting the DeltaV KL I/O modules seated in the carrier — analog input modules such as the KL3201 and analog output modules such as the KL4001 are subject to the same thermal and vibration stresses as the base plate itself and should be tested for signal drift or connector degradation.

Simultaneously, verify the integrity of the DeltaV controller module (MD or SD series) that governs this I/O node. A degraded base plate connector can introduce intermittent communication faults that are often misdiagnosed as controller or field instrument failures, leading to unnecessary replacement of healthy components. Checking the base plate first eliminates this diagnostic ambiguity.

Power integrity is equally critical. Inspect the DeltaV power supply module (PS series) feeding the cabinet section where the KL4201X1-BA1 is installed. Voltage ripple or transient spikes from an aging power supply are a leading cause of premature base plate and I/O module failure. Pairing a base plate replacement with a power supply health check — and stocking a spare DeltaV PS series power supply — is a best-practice approach adopted by reliability-focused maintenance teams.

Field wiring termination quality directly affects base plate longevity. During the inspection, examine the terminal blocks and marshalling panels connected to the I/O modules on this carrier. Loose terminations, corroded lugs, or undersized conductors create ground loops and signal noise that accelerate wear on the base plate’s internal bus connectors. If your facility uses HART field communicators for loop calibration, this is also the appropriate time to verify that HART-enabled I/O modules on the carrier are responding correctly to handheld device polling.

For facilities running legacy DeltaV configurations, the DeltaV serial interface module (SIM) and DeltaV redundancy modules installed in adjacent carrier slots should be inspected for firmware currency and physical connector condition. Redundancy modules in particular are often overlooked until a primary path failure exposes a degraded secondary path — a scenario that a proactive spare strategy directly mitigates.

Finally, document the inspection findings in your CMMS and cross-reference against the DeltaV system event log for any historical I/O node communication errors correlated with this carrier’s node address. Patterns of intermittent faults are the earliest indicator that a base plate replacement should be scheduled before the next planned outage window.

Strategic Replacement Solutions

The KL4201X1-BA1 is a direct OEM replacement for aging or failed DeltaV I/O base plates across the KL carrier family. Because it maintains full mechanical and electrical compatibility with the existing DeltaV backplane architecture, installation requires no firmware changes, no controller reconfiguration, and no I/O module re-addressing — the replacement is transparent to the running DeltaV application. This plug-and-replace characteristic is critical in facilities where DCS configuration change management procedures impose significant lead times on any modification that requires a Management of Change (MOC) review.

For sites operating legacy DeltaV systems originally commissioned in the early 2000s, the KL4201X1-BA1 provides a cost-effective path to extending system life without migrating to newer DeltaV S-series or CHARM I/O architectures. Maintaining a stock of two to three base plate spares per control room cabinet is a widely adopted strategy in high-availability process industries, where the cost of a single unplanned shutdown far exceeds the carrying cost of a modest spare parts inventory.

All units supplied by TOPNLMS are sourced as original Emerson OEM components, subjected to pre-shipment functional testing, and shipped with full traceability documentation. This ensures that your maintenance team receives a component that meets the same performance specifications as the original factory-installed unit — with no compromise on signal integrity, connector fit, or thermal rating.
