Emerson KL2101X1-BB1 SE6504 Original Industrial Spare DeltaV CHARM Compatible

Product Overview

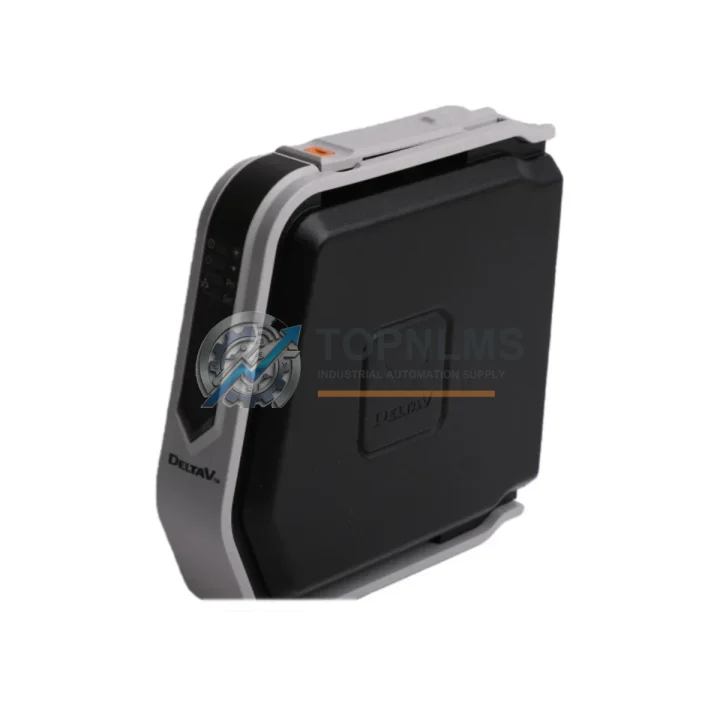

Emerson KL2101X1-BB1 SE6504 Original Industrial Spare DeltaV CHARM Compatible: System Stability and Industrial Spare Maintenance Value

In modern process automation environments, the reliability of every DCS component directly determines plant uptime and production continuity. The Emerson KL2101X1-BB1 SE6504 is an original DeltaV CHARM (Characterization Module) I/O card designed for seamless integration within Emerson DeltaV distributed control systems. As a critical field I/O interface module, it enables flexible, loop-level signal characterization and supports the modular expansion architecture that DeltaV installations depend on for long-term operational stability.

For maintenance engineers and procurement specialists managing aging DCS infrastructure, sourcing a verified original spare like the KL2101X1-BB1 SE6504 is not merely a replacement decision — it is a system stability investment. Whether you are responding to an unplanned shutdown, executing a scheduled turnaround, or building a strategic spare parts inventory, having this module available on-site eliminates the most dangerous variable in DCS maintenance: lead time uncertainty.

At TOPNLMS, every KL2101X1-BB1 SE6504 unit is sourced from verified supply channels, inspected prior to dispatch, and covered by a 12-month warranty. We serve industrial buyers across petrochemical, power generation, pharmaceutical, and discrete manufacturing sectors who require fast, reliable access to original Emerson DeltaV components.

Critical Technical Specs Table

Preventive Maintenance Strategy

The KL2101X1-BB1 SE6504 CHARM module operates within a tightly integrated DeltaV I/O architecture. When this module is flagged for replacement during a control system audit or unplanned fault event, experienced maintenance teams know that a single-component swap rarely tells the full story. A thorough inspection of the surrounding I/O infrastructure is essential to prevent repeat failures and ensure the replaced module performs to specification from day one.

Begin by examining the CHARM I/O Card (CIOC) carrier that hosts this module. Worn or oxidized carrier contacts are a common root cause of intermittent CHARM faults and should be cleaned or replaced as part of the same maintenance window. If the CIOC itself shows signs of firmware obsolescence or communication errors, consider stocking a spare CIOC alongside the KL2101X1-BB1 SE6504 to eliminate single points of failure at the carrier level.

Next, verify the integrity of the DeltaV controller module — typically an MD or MD Plus controller — that manages the CIOC subsystem. Controller firmware version compatibility with the CHARM module should be confirmed before reinsertion. In parallel, inspect the DeltaV power supply modules feeding the I/O cabinet. Degraded power supply output is a leading cause of unexplained CHARM module faults and is frequently overlooked during reactive maintenance.

Field wiring terminations at the CHARM terminal block assemblies and associated marshalling cabinet terminal strips should be torque-checked and inspected for corrosion, particularly in humid or chemically aggressive environments. If the loop includes signal isolators or signal conditioners between field instruments and the CHARM input, these should be tested for drift and replaced on a defined lifecycle schedule rather than reactively.

For loops involving 4–20 mA transmitters — pressure, temperature, flow, or level — confirm that the transmitter itself is within calibration tolerance before commissioning the replacement CHARM module. A miscalibrated transmitter will produce erroneous process values that may be misattributed to the new I/O card. Similarly, if the loop passes through a DeltaV HART interface or HART multiplexer, verify HART communication integrity end-to-end after module replacement.

Where the DeltaV system interfaces with third-party equipment via Modbus RTU or PROFIBUS communication modules, inspect gateway modules and communication cables for signal degradation. Aging fiber optic cables connecting remote I/O enclosures to the main DCS cabinet should be included in the inspection scope, as optical loss can cause intermittent I/O faults that mimic CHARM module failures. Finally, review the status of DeltaV redundant network switches and ensure the control network infrastructure supporting the CIOC subsystem is operating within specification.

A proactive spare parts strategy for a DeltaV CHARM-based system should include buffer stock of the KL2101X1-BB1 SE6504, at least one spare CIOC carrier, a replacement DeltaV power supply module, and a set of terminal block assemblies. This multi-component approach reduces mean time to repair (MTTR) and protects against cascading downtime in critical process loops.

Strategic Replacement Solutions

The Emerson KL2101X1-BB1 SE6504 is a direct original replacement for aging or failed CHARM modules within existing DeltaV CHARMS I/O architectures. Unlike third-party alternatives that may require firmware reconfiguration or introduce compatibility risks, an original Emerson CHARM module installs into the existing CIOC carrier without system reconfiguration, preserving all loop characterization parameters and minimizing commissioning time.

For plants operating legacy DeltaV S-series systems that are no longer covered by Emerson’s active support lifecycle, maintaining a local inventory of original spare CHARM modules is the most cost-effective strategy to extend system life without undertaking a full DCS migration. The KL2101X1-BB1 SE6504 is fully compatible with the existing CIOC infrastructure, meaning no hardware changes to the cabinet, no re-engineering of the marshalling architecture, and no revalidation of the control strategy are required upon replacement.

In turnaround and shutdown planning, procurement teams should treat CHARM modules as consumable-class spares with a defined replacement interval rather than run-to-failure components. The cost of a single unplanned shutdown event in a process plant typically exceeds the value of a full cabinet’s worth of spare CHARM modules by orders of magnitude. Sourcing the KL2101X1-BB1 SE6504 from TOPNLMS provides access to verified original stock with pre-shipment inspection, ESD-safe packaging, and a 12-month warranty — reducing procurement risk for both planned and emergency replacement scenarios.

Support FAQ

Q1: Is the KL2101X1-BB1 SE6504 compatible with all DeltaV CHARMS I/O systems?
The KL2101X1-BB1 SE6504 is designed for use within Emerson DeltaV CHARMS I/O architecture, specifically with CHARM I/O Card (CIOC) carriers. Compatibility depends on the DeltaV system version and CIOC firmware. We recommend confirming your DeltaV controller firmware version and CIOC hardware revision before ordering. Our technical team can assist with compatibility verification upon request.

Q2: What pre-shipment testing is performed on each unit?
Every KL2101X1-BB1 SE6504 unit dispatched from TOPNLMS undergoes a pre-shipment inspection covering physical condition, connector integrity, and where applicable, functional verification. Units are packed in ESD-safe anti-static bags with protective foam inserts to prevent transit damage. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage CHARM module inventory for a large DeltaV installation?
For installations with 50 or more CHARM modules, industry best practice recommends maintaining a minimum buffer stock of 5–10% of installed quantity for each CHARM type in active use. For critical process loops — those controlling safety instrumented functions or high-value production streams — a dedicated hot-spare strategy with at least one module per loop type is advisable. TOPNLMS supports bulk procurement with volume pricing; contact us to discuss a tailored spare parts supply agreement.

Q4: What is the lead time for the KL2101X1-BB1 SE6504, and do you support emergency orders?
For in-stock units, standard dispatch is within 1–3 business days. For emergency shutdown situations, please contact us directly at [email protected] or +86 18359293191 to discuss expedited shipping options. We ship worldwide and can arrange express courier delivery to minimize plant downtime in critical situations.
