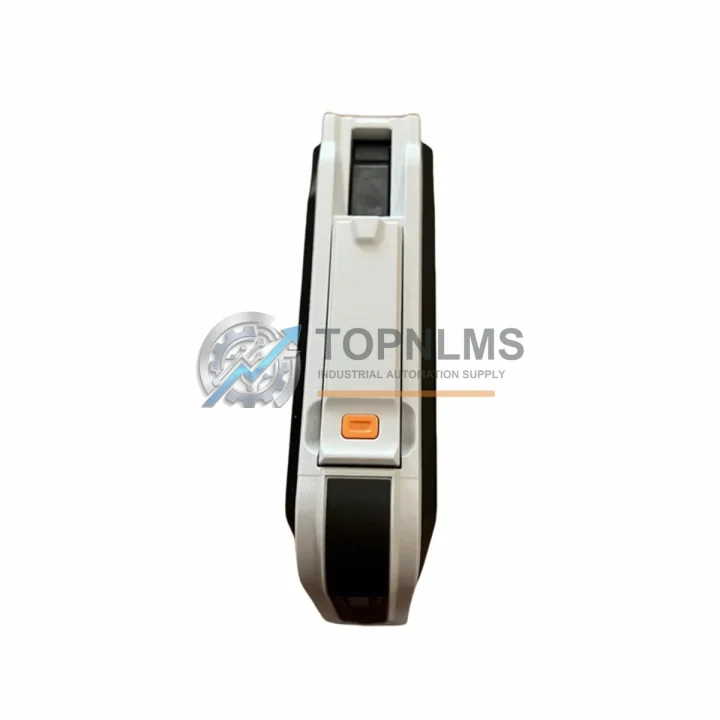

Emerson KL2101X1-BA1 12P4987X162 Ruggedized CHARM I/O Module

Product Overview

Emerson KL2101X1-BA1 12P4987X162 Ruggedized CHARM I/O Module: Industrial Resilience for Harsh Environments

The Emerson KL2101X1-BA1 12P4987X162 is a high-integrity CHARM I/O Module engineered for the DeltaV distributed control system platform. Designed to operate continuously in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the signal accuracy, channel isolation, and electromagnetic interference (EMI) resistance that mission-critical control architectures demand. Whether deployed in a redundant DeltaV controller cabinet or integrated into a safety-instrumented system (SIS) loop, the KL2101X1-BA1 12P4987X162 maintains stable I/O performance where conventional modules fail.

TOPNLMS maintains verified, tested inventory of this module, ready for immediate dispatch with full documentation and a 12-month quality warranty. Each unit undergoes pre-shipment functional verification to confirm channel integrity, communication handshake with DeltaV controllers, and compliance with original Emerson factory specifications.

Rugged Specifications Table

Comprehensive Protection Solutions

The KL2101X1-BA1 12P4987X162 does not operate in isolation — it is a precision component within a broader DeltaV control architecture that depends on the coordinated reliability of every connected device. In a typical DeltaV Electronic Marshalling cabinet, this CHARM I/O Module interfaces directly with the Emerson CIOC (CHARM I/O Card) carrier, which aggregates multiple CHARM channels and communicates upstream to DeltaV controllers such as the MD Plus Controller (MD+) or the M5+ Controller. Signal integrity at the field level is further protected by Emerson CHARM Termination Assemblies (CTAs), which provide the physical wiring interface between field instruments and the CHARM layer.

In safety-critical loops — such as emergency shutdown (ESD) systems or fire-and-gas (F&G) detection circuits — the KL2101X1-BA1 12P4987X162 is often deployed alongside Emerson DeltaV SIS Logic Solvers and SIS I/O modules, ensuring that the safety instrumented function (SIF) maintains its required Safety Integrity Level (SIL) even under abnormal process conditions. For power supply redundancy within the same cabinet, Emerson DeltaV Power Supplies (PS2) and associated Power Distribution Modules provide the stable 24 VDC rail that CHARM modules require for uninterrupted operation.

Communication continuity between the DeltaV system and field devices — including HART-enabled transmitters, positioners, and analyzers — is maintained through the CHARM layer’s native HART pass-through capability, eliminating the need for separate HART multiplexers or external communication gateways. Where Profibus DP or FOUNDATION Fieldbus segments are integrated into the same control architecture, Emerson Fieldbus Interface Modules (FIM) and Profibus Interface Modules (PIM) complement the CHARM I/O layer, providing a unified, diagnostics-rich control network. Relay output modules and DeltaV I/O terminal blocks round out the marshalling cabinet, ensuring that discrete control signals reach actuators, solenoid valves, and motor control centers with full traceability and loop documentation.

Application in Critical Infrastructure

In upstream oil and gas facilities — including offshore platforms, FPSO vessels, and onshore wellhead control panels — the KL2101X1-BA1 12P4987X162 is valued for its ability to maintain accurate analog and discrete I/O performance in environments characterized by salt-laden air, mechanical vibration from rotating equipment, and wide ambient temperature swings. Its electronic marshalling architecture dramatically reduces the time required to reconfigure I/O assignments during plant modifications or turnarounds, a critical advantage in facilities where production downtime carries significant financial penalties.

In power generation plants — whether coal-fired, gas turbine, or combined-cycle — DeltaV CHARM I/O modules manage the dense I/O requirements of boiler management systems (BMS), turbine control panels, and auxiliary systems. The module’s channel-level diagnostics enable maintenance teams to identify failing field instruments before they cause process upsets, supporting predictive maintenance programs aligned with IEC 61511 functional safety management requirements.

In water and wastewater treatment facilities, where high humidity, chemical vapors, and continuous 24/7 operation are standard conditions, the KL2101X1-BA1 12P4987X162 provides the long-term reliability that municipal operators require. Its compatibility with the full DeltaV Electronic Marshalling ecosystem means that spare modules can be hot-swapped without process interruption, minimizing the risk of service disruption to critical public infrastructure.

In metallurgical and mining operations — including smelters, concentrators, and mineral processing plants — where airborne particulates, high-frequency vibration from crushers and mills, and extreme thermal gradients challenge conventional control hardware, the ruggedized design philosophy of the DeltaV CHARM platform ensures that I/O accuracy and communication integrity are maintained across the full production cycle.
