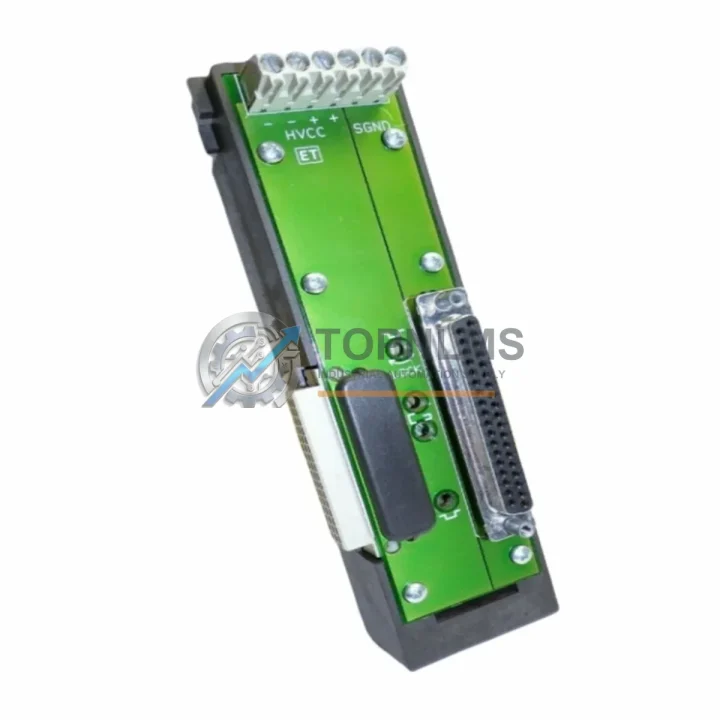

Emerson KJ4010X1-BG1 Ruggedized Bus Extender Module

Product Overview

Emerson KJ4010X1-BG1 Ruggedized Bus Extender Module: Industrial Resilience for Harsh Environments

The Emerson KJ4010X1-BG1 (alternate part number 12P0830X062) is a ruggedized DCS bus extender module engineered for the DeltaV S-Series distributed control system architecture. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and electrically noisy heavy manufacturing floors — this module delivers the backbone connectivity that mission-critical control systems depend on.

In continuous production environments where downtime is measured in tens of thousands of dollars per hour, the KJ4010X1-BG1 provides the stable, low-latency bus extension that keeps DeltaV controllers, I/O subsystems, and field devices communicating without interruption. Its robust design addresses the full spectrum of industrial hazards: electromagnetic interference from variable frequency drives and large motor starters, mechanical vibration from compressors and rotating machinery, and thermal cycling in outdoor or semi-outdoor enclosures.

Rugged Specifications Table

Comprehensive Protection Solutions

The KJ4010X1-BG1 does not operate in isolation — it is a critical link in a broader DeltaV S-Series control architecture. In a typical process plant control cabinet, this bus extender works in concert with the KJ2003X1-BA1 DeltaV S-Series Controller, which serves as the primary processing node, and the KJ3001X1-BA1 Power Supply Module, which delivers clean, regulated DC power to the entire backplane assembly. Reliable bus extension is only as good as the I/O it connects: the KJ1501X1-BF2 Analog Input Module and KJ1502X1-BB1 Analog Output Module depend on the KJ4010X1-BG1 to maintain deterministic scan cycles even under heavy electrical noise from nearby motor control centers.

In safety-instrumented system (SIS) architectures, the bus extender supports integration with DeltaV SIS Logic Solvers and associated SIS I/O modules, ensuring that safety loops remain isolated yet communicative within the same physical cabinet footprint. For digital field device integration, the module supports connectivity to FOUNDATION Fieldbus H1 interface cards and HART multiplexer modules, enabling asset management and predictive diagnostics across the entire field device network.

Communication integrity is further reinforced when paired with DeltaV Redundant Controller pairs and redundant power supply modules — a configuration commonly specified in oil and gas upstream facilities and power generation plants where single points of failure are unacceptable. Terminal modules and marshalling panels connected downstream of the KJ4010X1-BG1 benefit from its stable bus timing, reducing the risk of spurious trips or missed process alarms in high-stakes environments.

Application in Critical Infrastructure

The Emerson KJ4010X1-BG1 has established a strong track record across the most demanding sectors of critical infrastructure:

Oil & Gas Upstream and Midstream: On offshore platforms and onshore gas processing facilities, the KJ4010X1-BG1 extends DeltaV control buses across explosion-proof and pressurized control rooms. Its tolerance for wide temperature swings and high humidity makes it well-suited for tropical offshore environments where conventional electronics degrade rapidly. Operators rely on it to maintain continuous communication between wellhead controllers, separator control loops, and compressor management systems.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the bus extender supports the DeltaV DCS in managing boiler combustion control, turbine speed regulation, and auxiliary system monitoring. The module’s EMI resilience is particularly valued in generator halls where high-voltage switching creates significant electromagnetic disturbances.

Mining and Mineral Processing: Underground and surface mining operations subject control hardware to extreme vibration, dust ingress, and temperature extremes. The KJ4010X1-BG1, installed in sealed control cabinets, maintains reliable bus communication for conveyor control systems, crusher automation, and flotation cell management — environments where a communication fault can halt an entire production line.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities operate 24/7 with minimal staffing. The KJ4010X1-BG1 supports DeltaV-based SCADA and DCS architectures managing pump stations, chemical dosing systems, and filtration processes, where long mean-time-between-failure (MTBF) and easy spare-part availability are primary procurement criteria.

Metallurgy and Steel Production: In electric arc furnace (EAF) and continuous casting environments, the module withstands intense radiated heat and electromagnetic pulses generated by high-current switching. Its robust backplane bus design ensures that DeltaV controllers maintain scan integrity even during furnace tap events.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange a replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order number and a description of the fault. Replacement units are typically dispatched within 3–5 business days.

Q2: How is each KJ4010X1-BG1 unit tested before shipment?
Every unit undergoes a multi-stage inspection process prior to dispatch. This includes visual inspection for physical damage, power-on functional testing to verify backplane bus communication, and compatibility verification against DeltaV S-Series system parameters. Units sourced from OEM-certified channels are accompanied by original documentation where available. Refurbished units are fully reconditioned and tested to the same functional standard as new stock.

Q3: Is the KJ4010X1-BG1 compatible with all DeltaV S-Series configurations, and can it replace older revisions?
The KJ4010X1-BG1 is designed for the DeltaV S-Series backplane architecture and is backward-compatible with earlier S-Series hardware revisions in most configurations. The alternate part number 12P0830X062 refers to the same module under Emerson’s internal numbering system. Customers upgrading from earlier bus extender revisions should verify firmware compatibility with their DeltaV system version. TOPNLMS technical staff can assist with compatibility confirmation prior to purchase.

Q4: Can TOPNLMS guarantee long-term supply and support for this module?
Yes. TOPNLMS maintains dedicated inventory of Emerson DeltaV S-Series components, including the KJ4010X1-BG1, to support both planned maintenance schedules and emergency breakdown replacements. For facilities running aging DeltaV S-Series systems where OEM supply has become constrained, TOPNLMS provides a reliable alternative sourcing channel with consistent stock availability, competitive lead times, and full pre-shipment testing. Long-term supply agreements and priority stock reservations are available for high-volume or repeat customers.
