Emerson KJ4010X1-BF1 Replacement for DeltaV DCS Series

Product Overview

Emerson KJ4010X1-BF1 Replacement for DeltaV DCS Series: Seamless Migration & Smooth Transition

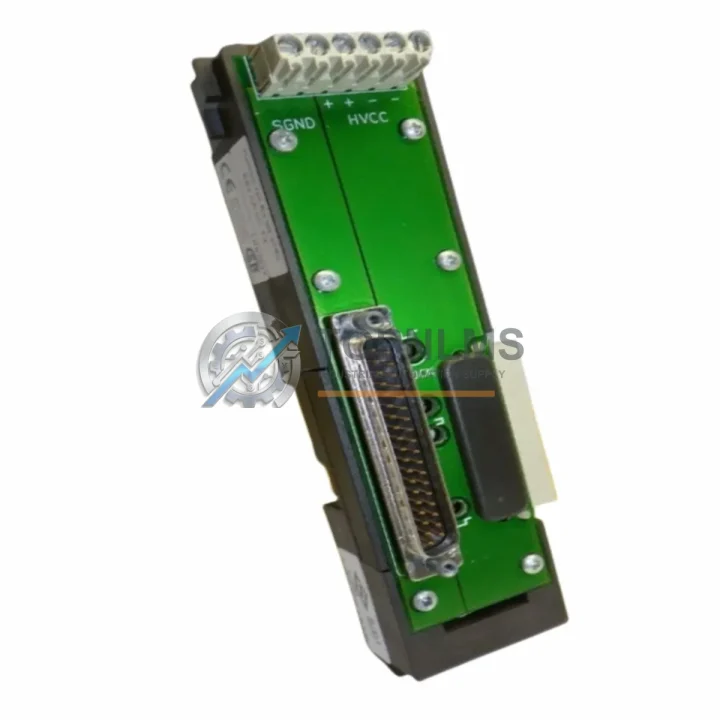

The Emerson KJ4010X1-BF1 (part number 12P0831X062) is a DeltaV DCS Extender Module designed to extend the communication backbone between DeltaV controllers and remote I/O subsystems. As legacy DeltaV installations age and original equipment reaches end-of-life, plant engineers and procurement teams increasingly require a reliable, drop-in replacement that preserves existing wiring infrastructure, communication protocols, and control logic — without forcing a full system overhaul.

TOPNLMS maintains verified stock of the KJ4010X1-BF1 to support urgent replacement cycles, scheduled turnarounds, and long-term spare parts programs. Every unit ships with a 12-month warranty, pre-shipment functional testing, and full documentation support.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from an aging DeltaV installation or replacing a failed extender module rarely involves a single component. In practice, the KJ4010X1-BF1 is deployed alongside a broader set of DeltaV subsystem components that must be verified or simultaneously upgraded to ensure system integrity.

During a typical DeltaV I/O subsystem migration, engineers commonly address the KJ3001X1-BA1 DeltaV S-series Controller as the upstream host for the extender chain. If the controller carrier or backplane shows wear, the KJ4001X1-BA1 DeltaV 2-Wide Carrier provides the correct mechanical and electrical interface for the KJ4010X1-BF1 without any cabinet rework. For plants running FOUNDATION Fieldbus H1 segments, the KJ4020X1-BA1 FOUNDATION Fieldbus H1 Card is frequently replaced in the same maintenance window, as both modules share the same carrier slot architecture and fieldbus segment wiring.

HART-enabled loops connected through the extender often feed into KJ4022X1-BA1 HART Multiplexer Modules, which should be inspected and replaced if communication diagnostics show intermittent HART pass-through errors. On the power distribution side, the KJ4030X1-BA1 DeltaV Power Supply Module supplies regulated DC to the carrier assembly; a degraded power module can cause false extender faults that mimic hardware failure, so it is standard practice to verify or replace it during the same outage.

For plants transitioning from older DeltaV MD controllers to the S-series platform, the KJ2003X1-BA1 DeltaV MD Controller is the typical upstream device being retired. The KJ4010X1-BF1 extender is fully compatible with the S-series replacement controller without requiring changes to existing I/O wiring or DeltaV Explorer module assignments. Signal conditioning between field instruments and the DeltaV I/O cards is often handled by MTL or P+F signal isolators mounted in the same control cabinet; these remain fully compatible and do not require replacement during the extender swap.

Where plants are also upgrading operator interface, the DeltaV Operate HMI workstation communicates over the DeltaV Application Station network and is unaffected by extender module changes at the I/O level. Finally, for commissioning and diagnostics, a DeltaV Engineering Workstation with AMS Device Manager is used to verify HART device communication through the new extender, confirm module health in DeltaV Diagnostics, and download updated module parameters — all without modifying the existing control strategy.

Retrofit Guidance FAQ

Q: Does replacing the KJ4010X1-BF1 require rewiring field cables?
A: No. The KJ4010X1-BF1 mounts directly into the existing DeltaV carrier slot. All field wiring terminates at the carrier terminal blocks, which remain undisturbed. The module swap is a tool-free, slot-pull-and-replace operation.

Q: Will existing DeltaV control strategies and module assignments need to be reloaded?
A: In most cases, no. DeltaV automatically re-associates the replacement module with the existing module tag upon power-up, provided the module type and slot position are unchanged. A module download from DeltaV Explorer may be required to confirm parameter synchronization.

Q: Is the KJ4010X1-BF1 compatible with both FOUNDATION Fieldbus and HART simultaneously?
A: The extender module itself is a backplane communication bridge; protocol support (FF H1, HART, Profibus) is determined by the I/O cards seated in the carrier. The KJ4010X1-BF1 is compatible with all standard DeltaV S-series I/O card types without restriction.

Q: How much physical space does the module require in the control cabinet?
A: The KJ4010X1-BF1 occupies a standard 2-wide DeltaV carrier slot. No additional DIN rail space, cable duct modification, or cabinet expansion is required for a like-for-like replacement.

Q: Can this module be used in a redundant extender configuration?
A: Yes. DeltaV supports redundant extender pairs using matched KJ4010X1-BF1 modules in adjacent carrier slots. Both primary and secondary modules should be replaced simultaneously to maintain redundancy integrity and avoid firmware revision mismatches.

Q: What is the recommended procedure for minimizing downtime during replacement?
A: Pre-stage the replacement module and verify firmware revision compatibility before the maintenance window. During the outage, remove the failed module, seat the replacement, and perform a DeltaV module download. Total swap time for an experienced technician is typically under 15 minutes per module.

Warranty Assurance

Every KJ4010X1-BF1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment functional inspection to verify backplane connector integrity, firmware revision, and communication readiness. Units that do not pass inspection are not shipped.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides replacement support with priority processing to minimize impact on plant operations. Our technical team is available to assist with compatibility verification, installation guidance, and post-installation communication diagnostics via email and phone.

For procurement teams managing spare parts programs, TOPNLMS offers quantity pricing, lead-time commitments, and documentation packages (test reports, country of origin certificates, and packing lists) to support site acceptance and audit requirements. Standard shipping from Xiamen is available via DHL, FedEx, and UPS with tracking provided at time of dispatch.

Contact our team to confirm stock availability, request a quotation, or discuss consignment and blanket order arrangements for ongoing DeltaV maintenance programs.
