Emerson KJ4001X1-CB1 Replacement for DeltaV Series

Product Overview

Emerson KJ4001X1-CB1 Replacement for DeltaV Series: Smooth Migration & Legacy System Upgrade

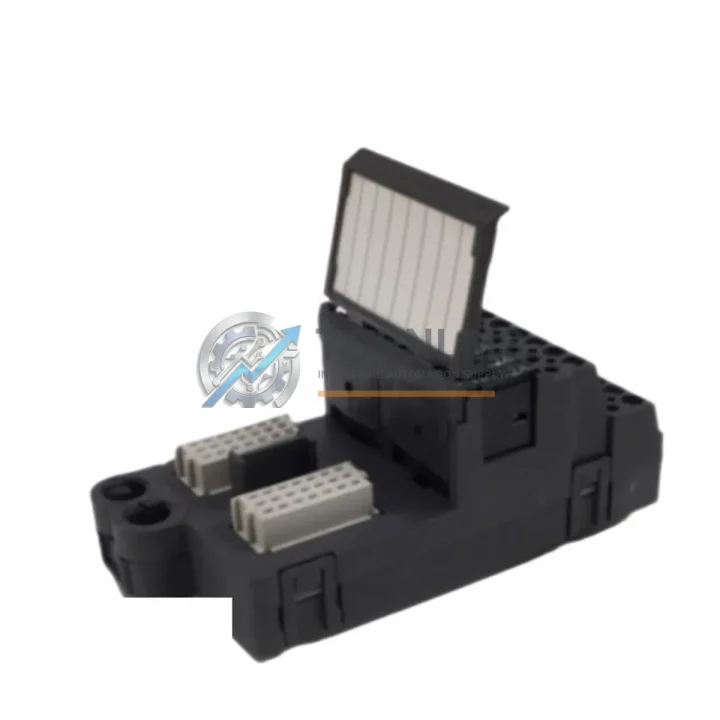

The Emerson KJ4001X1-CB1 is a DeltaV Series Field Termination Block (FTB) designed to interface field wiring with DeltaV I/O subsystem cards. As Emerson continues to evolve the DeltaV platform, many facilities running legacy DeltaV MD or DeltaV S-series controllers are encountering end-of-life notices on original FTB assemblies. This replacement solution is engineered to support a seamless, low-risk migration from discontinued or aging KJ4001X1-CB1 units to verified, functionally equivalent hardware — minimizing engineering rework, downtime, and procurement lead time.

Whether your plant is operating a DeltaV MD Plus Controller, a DeltaV M-series I/O carrier, or a legacy DeltaV Workstation node, the KJ4001X1-CB1 FTB serves as the critical junction between field instrument wiring and the DeltaV Electronic Marshalling or traditional I/O card infrastructure. Replacing this component without disrupting existing field wiring is a primary concern for instrumentation engineers — and this solution addresses that directly.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful KJ4001X1-CB1 field termination block replacement rarely occurs in isolation. In most DeltaV migration projects, the FTB swap is part of a broader I/O subsystem refresh. During the upgrade process, engineers commonly address adjacent components to ensure system-wide reliability.

On the I/O card side, the KJ4001X1-CB1 typically pairs with DeltaV analog input cards such as the KJ3002X1-BA1 (8-channel AI, 4–20 mA HART) or discrete input cards like the KJ3221X1-BA1. If the I/O card itself is approaching end-of-life, replacing both the FTB and the associated I/O card simultaneously reduces future maintenance windows. For analog output loops, the KJ3222X1-BA1 AO card is a common companion in the same I/O carrier assembly.

The I/O carrier or marshalling cabinet may also include a DeltaV I/O Carrier (KJ1501X1-BG2) that houses multiple FTBs and I/O cards. Inspecting the carrier for corrosion, connector wear, or mechanical damage during the FTB replacement is standard practice. In Electronic Marshalling (CHARM) environments, the KJ3243X1-BA1 CHARM I/O Card (CIOC) and individual CHARM modules may be involved in the migration path from traditional I/O to CHARMs-based architecture.

Power distribution within the DeltaV cabinet often relies on a DeltaV Power Supply (KJ1501X1-BG1) or a redundant power conditioner. Verifying power rail integrity before commissioning the replacement FTB prevents nuisance trips during startup. For sites migrating from older DeltaV S-series to MD-series controllers, the KJ2005X1-BA1 DeltaV MD Controller may be part of the upgrade scope, requiring updated I/O assignments in DeltaV Explorer.

Communication infrastructure upgrades may involve replacing legacy DeltaV Fieldbus H1 Interface Cards or updating PROFIBUS DP segment terminators. In hybrid architectures where the DeltaV system interfaces with a third-party PLC — such as a Siemens S7-300 or Allen-Bradley ControlLogix — signal isolators and terminal blocks in the junction box may also require attention to maintain loop integrity across the system boundary.

For programming and commissioning support, a DeltaV Operate workstation running DeltaV v13 or later is recommended to validate I/O channel assignments after the FTB swap. Handheld HART communicators are useful for verifying loop continuity on 4–20 mA channels without interrupting process control.

Retrofit Guidance FAQ

Q: Can I replace the KJ4001X1-CB1 without rewiring field cables?
A: Yes. The replacement unit maintains the identical screw-terminal layout and pin assignment as the original KJ4001X1-CB1. Field cables can be transferred terminal-by-terminal using the existing loop drawings, with no changes to wire labeling or cable routing required.

Q: Do I need to modify the DeltaV configuration after replacing the FTB?
A: No DeltaV database changes are required for a like-for-like FTB replacement. The I/O channel assignments, module tags, and HART device descriptors remain intact. A channel diagnostic check in DeltaV Diagnostics is recommended post-installation to confirm signal integrity.

Q: Is the replacement compatible with both HART and non-HART field devices?
A: Yes. The KJ4001X1-CB1 FTB is protocol-transparent at the termination level. HART signal pass-through depends on the associated I/O card (e.g., KJ3002X1-BA1 for HART AI). The FTB itself does not filter or condition HART signals.

Q: What is the physical installation space requirement?
A: The replacement unit fits the standard DeltaV I/O cabinet slot with the same DIN rail mounting footprint. No panel cutout modification, bracket adaptation, or cable extension is needed — it is a direct mechanical drop-in.

Q: Can this FTB be used in a redundant I/O configuration?
A: The KJ4001X1-CB1 is designed for use in standard (non-redundant) I/O carrier assemblies. For redundant I/O applications, consult the DeltaV I/O hardware catalog to confirm the appropriate FTB variant for your redundancy architecture.

Q: What communication protocols are supported?
A: The FTB supports hardwired analog (4–20 mA) and discrete (24 VDC) I/O. It is not a network-connected device and does not require protocol configuration. HART, PROFIBUS, or FOUNDATION Fieldbus connectivity is managed at the I/O card level, not the FTB.

Warranty Assurance

Every KJ4001X1-CB1 Field Termination Block shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional inspection including visual examination, connector integrity check, and terminal continuity verification to ensure it meets DeltaV system compatibility standards.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund — whichever the customer prefers — with no return shipping cost to the buyer. Our technical support team responds to warranty claims and commissioning queries within 1 business day.

We maintain bonded stock of critical DeltaV spare parts to support urgent plant maintenance scenarios. Express shipping options (DHL, FedEx, UPS) are available for next-flight-out requirements. All units are shipped with anti-static packaging, individual serial tracking, and a certificate of conformance upon request.

TOPNLMS serves industrial customers across petrochemical, power generation, pharmaceutical, pulp & paper, and water treatment sectors. Our procurement team can assist with multi-unit orders, blanket purchase agreements, and vendor qualification documentation for regulated industries.
