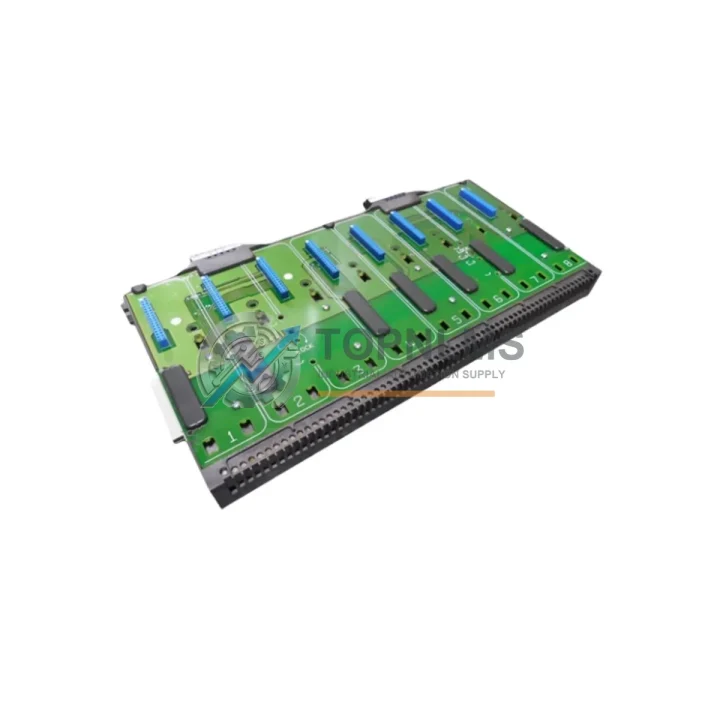

Emerson KJ4001X1-BE1 Ruggedized I/O Carrier Module

Product Overview

Emerson KJ4001X1-BE1 Ruggedized I/O Carrier Module: Industrial Resilience for Harsh Environments

The Emerson KJ4001X1-BE1 (alternate part number 12P0818X092) is a ruggedized I/O carrier module engineered for the DeltaV S-Series distributed control system platform. Designed to operate continuously in the most demanding industrial environments — including high-temperature process plants, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this carrier module delivers the structural and electrical integrity that mission-critical automation systems require.

In process industries where unplanned downtime translates directly into production loss and safety risk, the KJ4001X1-BE1 provides the mechanical backbone that keeps DeltaV S-Series I/O subsystems firmly anchored and electrically connected. Its robust backplane interface ensures low-resistance, high-integrity signal paths between field instruments and the DeltaV controller network, even under continuous mechanical stress or thermal cycling.

Rugged Specifications Table

Comprehensive Protection Solutions

The KJ4001X1-BE1 carrier module does not operate in isolation — it is the structural and electrical foundation upon which an entire DeltaV S-Series I/O subsystem is built. In a typical control cabinet deployment, this carrier interfaces directly with DeltaV S-Series analog input modules such as the KJ3002X1-BA1 for 4–20 mA HART field device connections, and with digital input/output modules like the KJ3221X1-BA1 for discrete field signal acquisition. These modules slot into the carrier’s backplane connectors, relying on the KJ4001X1-BE1’s mechanical rigidity to maintain contact integrity under vibration.

Power delivery to the I/O subsystem is managed through compatible DeltaV S-Series power supply modules, which feed regulated DC power through the carrier’s internal bus. In high-availability configurations, redundant power supply modules are paired with the carrier to eliminate single points of failure — a critical requirement in continuous process plants such as ethylene crackers or LNG terminals where a power interruption to the I/O tier can trigger emergency shutdowns.

On the controller side, the carrier communicates upstream to DeltaV MD-Plus or MD controllers via the DeltaV backplane network, enabling deterministic scan-cycle performance essential for regulatory control loops. In safety-instrumented system (SIS) architectures, the KJ4001X1-BE1 may be deployed alongside DeltaV SIS logic solvers and SIS I/O modules, where the carrier’s structural reliability directly supports functional safety integrity levels (SIL 2/SIL 3 compliance of the overall loop).

For facilities running Foundation Fieldbus H1 segments, the carrier supports DeltaV Fieldbus Interface Modules (FIM), enabling multi-drop field device networks with native NAMUR NE107 diagnostics. In HART-enabled loops, the carrier’s signal path supports HART multiplexers and asset management integration through Emerson’s AMS Device Manager, providing continuous field device health monitoring without interrupting the primary control signal.

Within the control cabinet, the KJ4001X1-BE1 is typically installed alongside DeltaV terminal blocks and marshalling panels, surge protection modules for field cable entries, and DIN-rail mounted relay modules for interposing between the DeltaV I/O and high-voltage field actuators. This complete ecosystem — carrier, I/O modules, power supply, surge protection, and marshalling — forms the hardened signal chain that keeps process variables accurately reported and control outputs reliably executed, even in the presence of ground loops, cable-induced EMI, or nearby variable frequency drives (VFDs) generating high-frequency switching noise.

Application in Critical Infrastructure

The Emerson KJ4001X1-BE1 has established a proven track record across the most demanding sectors of critical infrastructure. In upstream oil and gas operations — offshore platforms, FPSO vessels, and onshore wellhead facilities — the carrier module endures salt-laden humid air, constant mechanical vibration from rotating equipment, and wide ambient temperature swings between day and night cycles. Its robust backplane connectors resist micro-fretting corrosion that can degrade signal integrity in lesser-quality carriers over multi-year service intervals.

In petrochemical and refinery environments, the KJ4001X1-BE1 is deployed in control rooms and field junction boxes managing distillation column instrumentation, reactor temperature profiles, and compressor surge control loops. The carrier’s compatibility with DeltaV HART I/O modules enables continuous online diagnostics of transmitters and control valves — reducing the need for manual field checks in areas classified as hazardous locations (Zone 1 / Division 1).

In power generation facilities — coal-fired, gas turbine, and combined-cycle plants — the carrier supports boiler management systems (BMS) and turbine control panels where millisecond-level I/O scan reliability is non-negotiable. The DeltaV S-Series architecture’s deterministic scan cycle, anchored by the structural integrity of the KJ4001X1-BE1 carrier, ensures that flame detection signals, fuel valve commands, and steam pressure readings are processed without latency-induced control errors.

Water and wastewater treatment plants operating in high-humidity pump stations and chemical dosing facilities rely on the carrier’s moisture-resistant design to maintain I/O integrity across seasonal humidity extremes. In mining and metallurgy operations — ore processing plants, smelters, and rolling mills — the carrier withstands heavy dust ingress, high-frequency vibration from crushers and conveyors, and the intense electromagnetic interference generated by large DC drive systems and arc furnaces.

Across all these sectors, the KJ4001X1-BE1 delivers a consistent value proposition: it keeps the DeltaV S-Series I/O infrastructure operational, accurate, and maintainable — protecting both the capital investment in the DCS platform and the safety of the personnel and processes it controls.

Security & Quality FAQ

Q1: What warranty coverage is provided with the KJ4001X1-BE1?
All KJ4001X1-BE1 units supplied by TOPNLMS carry a 12-month warranty covering functional defects under normal operating conditions. Each unit undergoes pre-shipment functional testing on DeltaV-compatible test benches to verify backplane connectivity, power bus integrity, and module slot functionality before dispatch. Warranty claims are supported with direct technical assistance and replacement unit coordination.

Q2: How is the module tested before shipment, and what documentation is provided?
Every KJ4001X1-BE1 is subject to a multi-point inspection protocol including visual inspection for connector pin integrity, backplane bus continuity testing, and power rail verification. Units sourced as refurbished are additionally subjected to burn-in testing to screen for latent component failures. A test report and condition certificate are available upon request. Emerson OEM part numbers and revision markings are verified against the original manufacturer’s documentation.

Q3: Is the KJ4001X1-BE1 compatible with all DeltaV S-Series I/O modules and controllers?
Yes. The KJ4001X1-BE1 is designed as a universal S-Series carrier compatible with the full range of DeltaV S-Series I/O modules, including analog input/output, digital input/output, HART-enabled, and Foundation Fieldbus interface modules. It is compatible with DeltaV MD, MD-Plus, and SD-series controllers operating on the standard DeltaV backplane architecture. Customers are advised to confirm hardware revision compatibility with their existing DeltaV system version for optimal performance.

Q4: Can TOPNLMS support long-term supply and emergency replacement requirements?
Yes. TOPNLMS maintains stock of the KJ4001X1-BE1 and related DeltaV S-Series components to support both planned maintenance schedules and emergency breakdown replacement scenarios. For facilities managing aging DeltaV S-Series installations where OEM lead times are extended, TOPNLMS provides a reliable alternative supply channel with fast dispatch capability. Bulk procurement inquiries and long-term supply agreements are welcomed — contact our technical sales team at [email protected] or +86 18359293191 to discuss your requirements.
