Emerson KJ4001X1-BA3 Original Industrial Spare DeltaV Compatible

Product Overview

Emerson KJ4001X1-BA3 Original Industrial Spare DeltaV Compatible: System Stability and Industrial Spare Maintenance Value

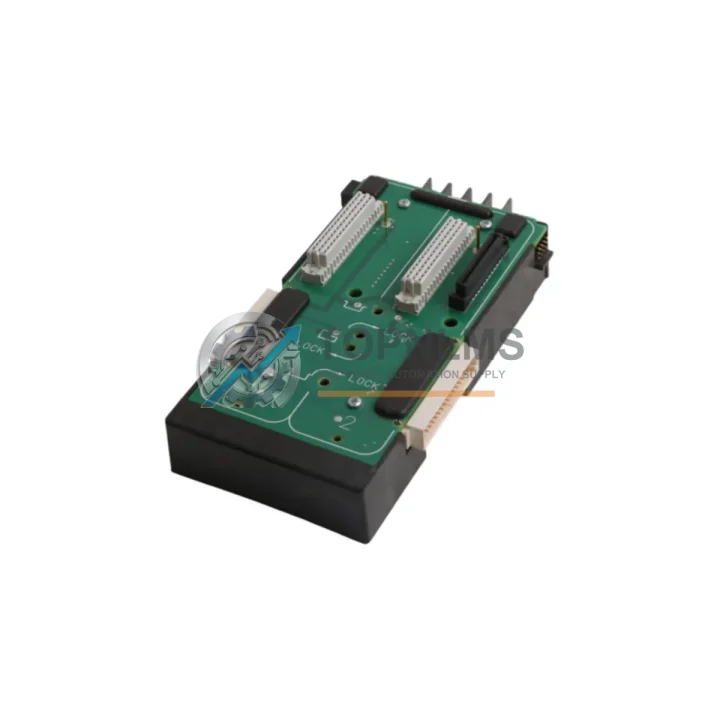

The Emerson KJ4001X1-BA3 Wide Carrier Base Module is a critical structural and electrical backbone component within the DeltaV Distributed Control System (DCS) architecture. Designed to house and interconnect I/O modules in DeltaV controller cabinets, this carrier base provides the physical mounting, backplane communication, and power distribution infrastructure that keeps process control systems running without interruption. For maintenance engineers managing aging DeltaV installations, securing a verified original KJ4001X1-BA3 spare is one of the highest-value actions in a proactive parts strategy.

In process industries — including oil and gas, chemical, pharmaceutical, power generation, and water treatment — DeltaV DCS platforms often remain in service for 15 to 25 years. Over that lifecycle, carrier base modules are subject to thermal cycling, vibration, connector wear, and backplane signal degradation. A failed or intermittent KJ4001X1-BA3 can take an entire I/O subsystem offline, triggering unplanned shutdowns that cost tens of thousands of dollars per hour. Stocking a verified original replacement eliminates the most dangerous single point of failure in the I/O expansion rack.

Critical Technical Specs Table

Preventive Maintenance Strategy

A scheduled inspection of the DeltaV I/O cabinet should treat the KJ4001X1-BA3 carrier base as part of a broader system health review. During any planned maintenance window, technicians should simultaneously inspect the KJ3001X1-BA1 Analog Input Module and KJ2201X1-BA1 Discrete Output Module seated in the carrier, as connector pin wear on the module-to-carrier interface is a leading cause of intermittent I/O faults. The KJ4002X1 Power Supply Module that feeds the carrier rail should be load-tested and its output voltage verified — a sagging 24 VDC supply is frequently misdiagnosed as a carrier base failure.

Backplane communication integrity depends equally on the KJ3221X1-BA1 HART Analog Input Module and the KJ3002X1-BA1 Analog Output Module maintaining clean signal paths through the carrier. During cabinet inspections, check all module locking tabs and seating clips on the carrier base, as loose modules generate intermittent process alarms that are difficult to trace without physical inspection. The KJ1501X1 DeltaV Controller Module upstream of the carrier should also be verified for firmware currency, since controller-carrier communication errors are sometimes firmware-related rather than hardware failures.

For cabinets operating in high-vibration or high-humidity environments, the terminal block assemblies and field wiring marshalling panels connected to the I/O modules in the carrier should be inspected for corrosion and torque compliance. Pairing the KJ4001X1-BA3 replacement with a fresh set of DeltaV I/O module terminal blocks (KJ3001X1-series field termination assemblies) ensures the entire signal chain is renewed simultaneously, eliminating latent wiring faults that would otherwise surface after the carrier swap. Additionally, the KJ4003X1 Redundant Power Supply Module and any associated DeltaV communication cables (CIOC/EIOC interface cables) should be inspected for insulation integrity and connector seating during the same maintenance event.

Strategic Replacement Solutions

The KJ4001X1-BA3 is a long-lifecycle component, but Emerson’s hardware revision cycles mean that older BA1 and BA2 suffix variants may no longer be available through standard distribution channels. The BA3 revision maintains full backward compatibility with all DeltaV S-Series and M-Series I/O modules, making it the correct drop-in replacement for BA1 and BA2 carrier bases without requiring any firmware changes, configuration updates, or recalibration of connected field instruments.

For plants running DeltaV systems installed prior to 2010, the KJ4001X1-BA3 is often the only currently manufactured carrier base that fits the original cabinet rail spacing and module footprint. Replacing an aging BA1 carrier with a BA3 does not require a DeltaV system upgrade, controller replacement, or changes to the DeltaV Explorer configuration database — the module simply seats into the existing rack and is recognized automatically by the controller during the next scan cycle. This plug-and-play compatibility dramatically reduces planned downtime from what could be a multi-day reconfiguration event to a sub-hour physical swap.

For maintenance planners managing multi-site DeltaV installations, purchasing KJ4001X1-BA3 units in quantities of two to four per site provides a statistically robust buffer against unplanned failures while avoiding the capital cost of over-stocking. Given typical lead times for original Emerson DeltaV hardware through standard channels (often 8–20 weeks), maintaining on-hand stock at TOPNLMS-sourced pricing represents a significant operational risk reduction with a measurable ROI against even a single avoided unplanned shutdown event.

Support FAQ

Q1: Is the KJ4001X1-BA3 compatible with all DeltaV I/O module types?
The KJ4001X1-BA3 Wide Carrier Base is compatible with the full range of DeltaV S-Series I/O modules, including analog input, analog output, discrete input, discrete output, and HART-enabled variants. It is not designed for use with DeltaV CHARM I/O hardware, which uses a dedicated CIOC carrier architecture. If you are unsure of compatibility with a specific module part number, contact us with your full system configuration and we will confirm before shipment.

Q2: What pre-shipment testing is performed on the KJ4001X1-BA3?
Every KJ4001X1-BA3 unit shipped from TOPNLMS undergoes full functional verification, including backplane continuity testing, power rail voltage verification, and module slot connector inspection. Units are shipped in anti-static packaging with individual test records available upon request. Our 12-month warranty covers all verified hardware defects from the date of shipment.

Q3: How should I plan my spare parts inventory for DeltaV carrier base modules?
For DeltaV installations with more than four I/O racks, industry best practice recommends maintaining at least one KJ4001X1-BA3 spare per eight carrier positions. For critical process units where unplanned downtime carries high financial or safety consequences, a one-for-one hot spare strategy is advisable. TOPNLMS can support blanket order arrangements and staged delivery schedules to align with your annual maintenance budget cycles.

Q4: Can I replace a KJ4001X1-BA1 or BA2 with the BA3 revision without reconfiguring DeltaV?
Yes. The BA3 revision is fully backward compatible with BA1 and BA2 variants. No changes to the DeltaV Explorer database, controller configuration, or field instrument calibration are required. The replacement is a direct physical swap — remove the old carrier, seat the new KJ4001X1-BA3, and the DeltaV controller will recognize the module automatically on the next scan. We recommend performing the swap during a planned maintenance window with the I/O subsystem in manual mode as a precaution.
