Emerson KJ3225X1-BA1 Replacement for DeltaV S-Series

Product Overview

Emerson KJ3225X1-BA1 Replacement for DeltaV S-Series: Smooth Migration from Legacy DCS to Modern HART AI Architecture

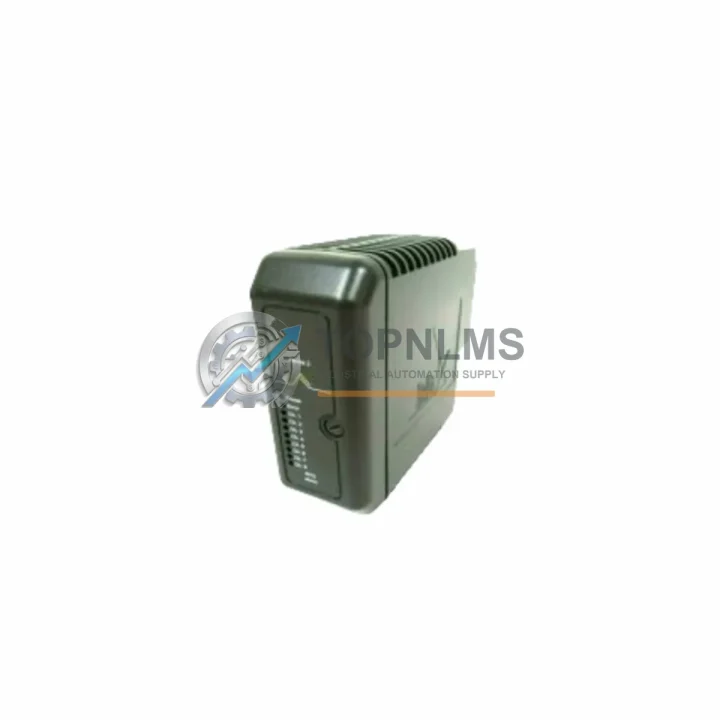

When your DeltaV distributed control system relies on aging or discontinued analog input modules, unplanned downtime becomes a critical risk. The Emerson KJ3225X1-BA1 (12P4174X032) is an 8-channel HART-enabled Analog Input Module designed for the DeltaV S-Series platform, offering a direct, drop-in replacement path for facilities operating legacy DeltaV hardware. Whether you are retiring an older KJ3221X1 series card, consolidating I/O from a first-generation DeltaV M-Series controller, or upgrading a control cabinet that has reached end-of-life support, this module provides the compatibility and reliability your process demands.

The KJ3225X1-BA1 supports 4–20 mA HART signals on all eight channels simultaneously, enabling full digital communication with field instruments such as smart transmitters, positioners, and flow meters without rewiring. Each channel is individually configurable via DeltaV Explorer, and the module integrates directly into the DeltaV S-Series carrier — the same physical footprint used by the KJ3222X1-BA1 discrete input card and the KJ3232X1-BA1 analog output module, meaning your existing carrier assembly and field termination wiring remain intact during the swap.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DeltaV migration rarely involves a single module swap. In practice, engineers replacing the KJ3225X1-BA1 are often simultaneously addressing adjacent components in the same control cabinet. The KJ3001X1-BA1 DeltaV S-Series Controller is the most common host for this AI card, and its firmware should be verified at version 13.3 or later to ensure full HART pass-through support. Alongside the controller, the KJ4001X1-BA1 DeltaV Power Supply Module provides the regulated 24 VDC backplane power that the KJ3225X1-BA1 draws from — if the power supply is original to a 2008–2012 installation, proactive replacement during the same maintenance window eliminates a second outage.

Field termination is handled through the KJ3225X1-BA1 compatible S-Series carrier assembly, which accepts the module directly without adapter hardware. If your marshalling cabinet uses a traditional screw-terminal junction approach, the Emerson DeltaV CHARM I/O Card (CIOC) offers a longer-term architecture path, though the KJ3225X1-BA1 remains the preferred like-for-like replacement for facilities not yet ready for a full CHARM migration.

For sites running mixed analog and discrete I/O in the same chassis, the KJ3222X1-BA1 8-Ch Discrete Input Module and KJ3242X1-BA1 8-Ch Discrete Output Module occupy adjacent slots and share the same carrier format. Replacing all three card types in a single planned outage — AI, DI, and DO — is the most cost-effective approach to cabinet modernization. Similarly, if your process includes modulating control valves with smart positioners, the KJ3232X1-BA1 Analog Output Module handles the 4–20 mA AO channels and is available from the same inventory batch, ensuring matched firmware revision across the I/O subsystem.

Communication integrity between the DeltaV controller and the workstation is maintained through the DeltaV Application Station and its associated Ethernet infrastructure. During commissioning of the replacement KJ3225X1-BA1, engineers typically use a DeltaV Diagnostics workstation connection to verify HART device descriptors and confirm channel-level signal integrity before returning the loop to automatic control. No additional programming cables are required — the module communicates entirely over the DeltaV internal bus.

Retrofit Guidance FAQ

Q: Can I replace the KJ3225X1-BA1 without rewiring field instruments?
A: Yes. The module uses the same carrier and field terminal block as the original S-Series AI card. All 4–20 mA field wiring connects to the carrier, not the module itself, so the swap is purely a card pull-and-insert operation with no field wiring changes.

Q: Do I need to update my DeltaV database after the replacement?
A: In most cases, DeltaV Explorer will auto-recognize the KJ3225X1-BA1 when the controller rescans the I/O subsystem. If the module was previously commissioned, the existing module template and channel assignments are retained. A download to the controller is required to activate the new hardware, which can be performed as a partial download without disrupting other running modules.

Q: Is HART communication enabled by default on all 8 channels?
A: HART is enabled per-channel in DeltaV Explorer. After replacement, verify that each channel’s HART enable flag is set to match your previous configuration. HART device descriptors (DDL files) for connected instruments should already be present in the DeltaV library if they were used with the previous card.

Q: What if my existing carrier is from an M-Series installation?
A: The KJ3225X1-BA1 is designed for the S-Series carrier. M-Series carriers use a different backplane connector and are not directly compatible. An S-Series carrier assembly must be installed first, which is a straightforward mechanical replacement that does not require cabinet structural modification in most standard DeltaV enclosures.

Q: How much physical space does the module require?
A: The KJ3225X1-BA1 occupies a single standard DeltaV S-Series slot. No additional slot space is required compared to the module it replaces, making it suitable for fully populated cabinets where space is constrained.

Q: Can this module be used in a redundant controller configuration?
A: Yes. The KJ3225X1-BA1 is compatible with DeltaV redundant controller pairs. I/O modules in a redundant system are shared between the primary and secondary controllers via the S-Series backplane, and no additional configuration is required beyond standard redundancy setup in DeltaV Explorer.

Warranty Assurance

Every KJ3225X1-BA1 12P4174X032 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on self-test, channel continuity check, and HART communication validation to confirm the module meets Emerson’s original performance specifications.

If a module exhibits any defect in materials or workmanship within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Our after-sales response target is within 24 hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse, with express international shipping available to minimize your process downtime.

For procurement teams requiring documentation, we provide a test report, packing list, and commercial invoice with each shipment. Bulk orders for plant-wide DeltaV cabinet modernization projects are supported with consolidated shipping and volume pricing. Contact our technical sales team to discuss project timelines, spare parts planning, and staged delivery schedules.

Stock availability is confirmed at time of order. We maintain buffer inventory of high-demand DeltaV S-Series I/O modules to support emergency replacement scenarios with same-day or next-day dispatch.
