EMERSON KJ3223X1-BA1-12P2871X012 Original Industrial Spare DeltaV S2: System Stability and Industrial Spare Parts Maintenance Value

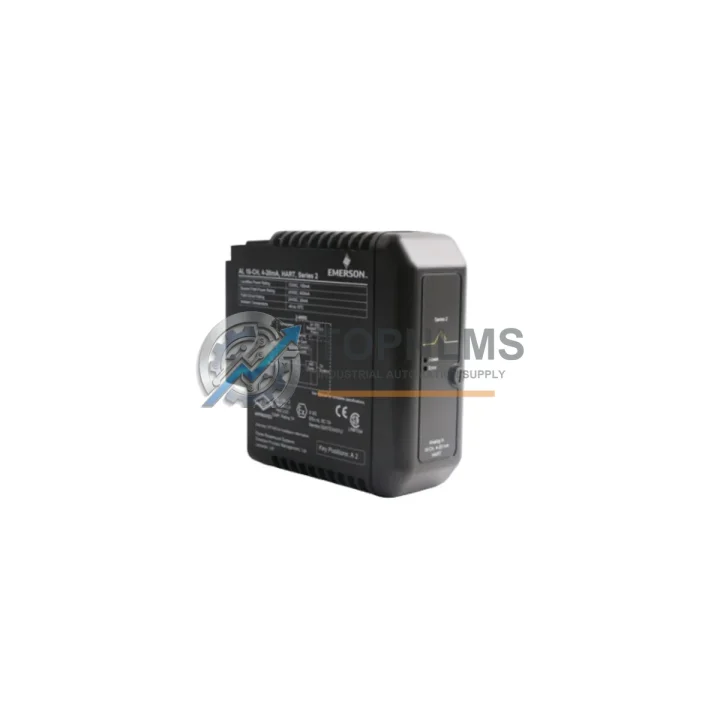

The EMERSON KJ3223X1-BA1-12P2871X012 is a genuine DeltaV Series 2 Analog Input Card designed for mission-critical distributed control system (DCS) environments. In process industries — including oil and gas, chemical, power generation, and advanced manufacturing — analog input modules are the sensory backbone of the control architecture. When a single card fails, the consequences extend far beyond a single loop: cascading alarms, unplanned shutdowns, and costly production losses can follow within minutes. Sourcing an original, tested replacement unit is not merely a procurement decision — it is a system stability strategy.

This card interfaces directly with field transmitters, thermocouples, RTDs, and 4–20 mA process signals, converting analog measurements into digital values that the DeltaV controller processes in real time. Its compatibility with the DeltaV Series 2 I/O subsystem ensures seamless integration without firmware reconfiguration or controller downtime, making it the preferred choice for maintenance engineers who need to restore operations quickly and confidently.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that replacing a failed KJ3223X1-BA1-12P2871X012 in isolation rarely addresses the root cause of system degradation. A DeltaV control cabinet is an integrated ecosystem, and the analog input card operates in close dependency with several adjacent components. During any scheduled shutdown or corrective maintenance event involving this module, a thorough inspection of the surrounding hardware is strongly recommended.

Begin with the DeltaV I/O carrier (KJ3001X1-BA1) — the mechanical and electrical interface between the card and the backplane. Worn or corroded carrier contacts are a common source of intermittent signal faults that are frequently misdiagnosed as card failures. Simultaneously, inspect the DeltaV Series 2 Power Supply module (KJ3221X1-BA1) that feeds the I/O bus; voltage ripple or marginal output can degrade analog measurement accuracy across all channels.

If the process loop includes HART-enabled field devices, verify the integrity of the HART multiplexer or HART modem connected to the AI card’s channels. A degraded HART communication path can cause false diagnostics and mask real field device faults. For loops involving thermocouples or RTDs, inspect the signal conditioning terminal blocks and compensation cables — these are often overlooked during card replacements but are a frequent source of measurement drift.

Within the same control cabinet, it is prudent to check the DeltaV controller module (MD or SD series) for firmware currency and diagnostic alerts. A controller running outdated firmware may not fully leverage the diagnostic capabilities of a newly installed Series 2 AI card. Additionally, review the DeltaV redundant power supply unit and its associated 24 VDC distribution fuse modules — a blown fuse on the field power rail can disable an entire group of analog input channels simultaneously.

For facilities managing aging DeltaV installations, consider auditing the DeltaV communication interface cards (CIOC or EIOC) that link the I/O subsystem to the controller network. These cards are high-value, long-lead-time items; maintaining at least one spare per cabinet significantly reduces mean time to repair (MTTR) during unplanned outages. Finally, if the plant operates a mix of DeltaV and third-party PLCs, inspect the serial or Modbus communication modules bridging those systems — signal integrity issues at the protocol boundary can propagate false data into the DeltaV historian and alarm management system.

Strategic Replacement Solutions

The KJ3223X1-BA1-12P2871X012 is a direct replacement for earlier DeltaV analog input modules used in legacy Series 1 and transitional installations. Its backward-compatible design allows maintenance teams to upgrade aging I/O infrastructure without modifying controller configurations, loop sheets, or marshalling cabinet wiring — a critical advantage in facilities where engineering change management is tightly controlled.

For plants operating DeltaV systems installed in the early 2000s, the Series 2 AI card offers improved diagnostic coverage, including open-wire detection, out-of-range alerts, and HART pass-through — features that reduce the frequency of manual loop checks and support condition-based maintenance programs. Transitioning from older KJ3221 or KJ3222 series cards to the KJ3223X1-BA1-12P2871X012 is a low-risk, high-value upgrade that extends the operational life of the existing DeltaV architecture by five to ten years without requiring a full system migration.

Procurement teams managing multi-site operations should consider establishing a centralized spare parts pool for this module. Given its role in process measurement — the foundation of every control loop — a stockout of this card during a critical maintenance window carries disproportionate operational risk. A recommended stocking level of two to four units per DeltaV cabinet, combined with a defined inspection-and-rotation cycle, ensures that aging cards are replaced proactively rather than reactively.

All units supplied by TOPNLMS are sourced from authorized channels, individually tested for electrical performance prior to shipment, and covered by a 12-month warranty. Expedited shipping options are available for urgent maintenance requirements.

Support FAQ

Q1: Is the KJ3223X1-BA1-12P2871X012 compatible with all DeltaV controller versions?
This card is designed for the DeltaV Series 2 I/O subsystem and is compatible with DeltaV MD, MD Plus, SD, and SD Plus controllers running DeltaV v10.3 and later. For installations running earlier firmware versions, a controller firmware update is recommended prior to installation to ensure full diagnostic functionality. Please consult your DeltaV system documentation or contact our technical team for version-specific compatibility confirmation.

Q2: How is the card tested before shipment, and what does the 12-month warranty cover?
Every unit undergoes functional electrical testing — including channel-by-channel signal verification and communication integrity checks — before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the specified operating range. Warranty claims are processed with priority turnaround to minimize your downtime.

Q3: Can this card be installed as a hot-swap replacement without shutting down the DeltaV controller?
Yes. The KJ3223X1-BA1-12P2871X012 supports hot-swap installation when used with a compatible DeltaV Series 2 I/O carrier. The DeltaV system will automatically detect the new card and download the configuration from the controller database, typically within 60–90 seconds. However, it is strongly recommended to verify loop integrity and perform a functional check of all connected field devices after installation before returning the loops to automatic control.

Q4: What is the recommended spare parts inventory strategy for this module?
For continuous process operations, we recommend maintaining a minimum of two spare units per DeltaV cabinet where this card is installed. Cards should be stored in anti-static packaging in a climate-controlled environment and rotated into service on a defined schedule (typically every three to five years) to prevent storage-related degradation. For multi-site operations, a centralized regional spare pool with documented allocation procedures provides the best balance between inventory cost and availability assurance.
