Emerson KJ3222X1-BA3 Ruggedized Analog Input Module for Harsh Environments

Product Overview

Emerson KJ3222X1-BA3 Ruggedized Analog Input Module for Harsh Environments

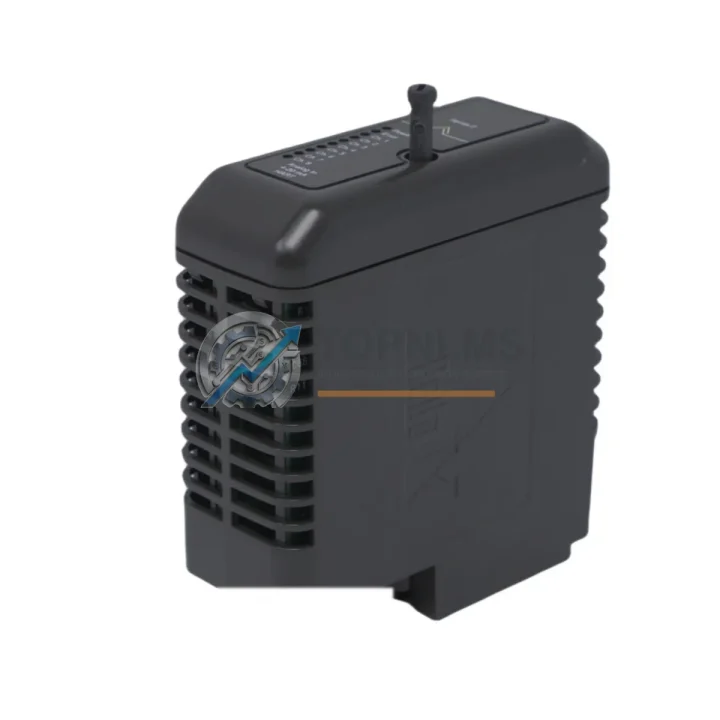

The Emerson KJ3222X1-BA3 is an 8-channel analog input module engineered for the DeltaV S-Series distributed control system platform. Designed to operate continuously in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and electrically noisy heavy manufacturing floors — this module delivers the signal integrity and uptime reliability that mission-critical automation demands. Whether deployed in a new greenfield installation or as a direct replacement in an existing DeltaV architecture, the KJ3222X1-BA3 maintains full backward compatibility and plug-and-play integration with the DeltaV S-Series controller backplane.

At TOPNLMS, every KJ3222X1-BA3 unit is sourced from verified supply channels, individually inspected, and function-tested prior to shipment. We maintain ready stock to support urgent spare-parts requirements, scheduled maintenance windows, and long-term procurement contracts for industrial operators worldwide.

Rugged Specifications Table

Comprehensive Protection Solutions

The KJ3222X1-BA3 is rarely deployed in isolation. In a fully integrated DeltaV S-Series control cabinet, it works in concert with a range of complementary modules and components to deliver system-wide resilience. The Emerson KJ2201X1-BA1 DeltaV S-Series Digital Input Module handles discrete field signals from limit switches and proximity sensors, while the KJ3001X1-BA1 Analog Output Module closes the control loop by driving control valves and positioners. For process safety applications, the Emerson KJ4001X1-BB1 SIS Logic Solver provides SIL 2-rated safety instrumented system functionality on the same backplane architecture, reducing cabinet footprint and simplifying validation.

Power integrity is foundational to analog signal accuracy. The Emerson KJ1501X1-BA1 DeltaV Power Supply Module delivers regulated, noise-filtered DC power to the I/O subsystem, protecting the KJ3222X1-BA3’s sensitive 16-bit A/D converters from voltage transients common in heavy industrial environments. In facilities with high electromagnetic interference — such as arc furnace plants or variable-frequency drive (VFD)-dense motor control centers — the addition of Emerson KJ0160X1-BA1 CHARM I/O Cards or dedicated signal conditioners upstream of the analog input channels further suppresses common-mode noise.

For HART-enabled field instruments, the KJ3222X1-BA3’s per-channel HART pass-through capability integrates seamlessly with Emerson Rosemount 3051 pressure transmitters, Rosemount 644 temperature transmitters, and Fisher FIELDVUE DVC6200 digital valve controllers, enabling asset health monitoring and remote diagnostics without additional multiplexers. Communication between the DeltaV controller and plant-level SCADA or historian systems is handled by the Emerson DeltaV OPC DA/UA Server and Modbus TCP communication modules, ensuring the analog data acquired by the KJ3222X1-BA3 flows reliably to every layer of the automation hierarchy.

Terminal block assemblies and marshalling panels — including Emerson KJ3222X1 series I/O terminal carriers — complete the wiring infrastructure, providing secure, vibration-resistant field terminations that maintain signal continuity even in high-vibration environments such as compressor stations and rotating machinery platforms.

Application in Critical Infrastructure

The KJ3222X1-BA3 has established a proven track record across the world’s most demanding process industries. In upstream oil and gas production facilities, it monitors wellhead pressure, flow, and temperature signals in environments subject to wide ambient temperature swings, salt-laden air, and continuous mechanical vibration from pumping equipment. Its galvanic channel isolation prevents ground loops that would otherwise corrupt analog readings in facilities where multiple earthing systems coexist.

In LNG liquefaction and regasification terminals, where cryogenic process temperatures and explosive-atmosphere zoning impose strict equipment selection criteria, the KJ3222X1-BA3 is installed within pressurized or purged control enclosures to maintain SIL 2 loop integrity for emergency shutdown (ESD) and fire-and-gas (F&G) detection systems. Its compatibility with the DeltaV SIS platform means a single engineering environment governs both basic process control and safety instrumented functions.

In coal-fired and combined-cycle power plants, the module acquires boiler drum level, turbine exhaust temperature, and generator cooling water flow signals — measurements where a single missed reading can trigger costly unplanned outages. The module’s 16-bit resolution and per-channel HART diagnostics allow maintenance teams to detect transmitter drift before it escalates to a process trip, supporting predictive maintenance strategies that reduce unplanned downtime.

Municipal water treatment and wastewater facilities rely on the KJ3222X1-BA3 to monitor dissolved oxygen, pH, turbidity, and chemical dosing flow rates across geographically distributed pump stations. Its wide humidity tolerance and robust EMC performance ensure reliable operation in wet, chemically aggressive environments where lesser modules fail prematurely.

In metallurgical and mining operations — including copper smelters, aluminum reduction cells, and underground mine ventilation systems — the module withstands the high-frequency electrical noise generated by large rectifier banks and conveyor drive systems, delivering clean analog data to the DeltaV controller even in the harshest electromagnetic environments on the plant floor.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the KJ3222X1-BA3?
Every KJ3222X1-BA3 unit sold by TOPNLMS is covered by a 12-month warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, we will repair or replace it at no additional cost. Our warranty applies to both new and certified-refurbished units and is backed by our in-house technical team.

Q2: How is each module tested before shipment?
All KJ3222X1-BA3 modules undergo a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, power-on functional test verifying all 8 analog input channels, HART communication verification, and firmware version confirmation. Units that do not pass every stage are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is the KJ3222X1-BA3 compatible with my existing DeltaV system version?
The KJ3222X1-BA3 is designed for the DeltaV S-Series I/O subsystem and is compatible with DeltaV system versions 9.x through 14.x and later. It is a direct plug-in replacement for earlier KJ3222 series modules on the same carrier. If you are upgrading from an older DeltaV M-Series system, please contact our technical team to confirm carrier and controller compatibility before ordering.

Q4: Can TOPNLMS support long-term or repeat supply requirements?
Yes. TOPNLMS maintains a dedicated inventory buffer for high-demand DeltaV S-Series modules, including the KJ3222X1-BA3, to support planned maintenance shutdowns, capital project builds, and emergency spare-parts programs. We offer blanket purchase order arrangements, priority allocation for repeat customers, and expedited shipping to over 50 countries. Contact our procurement team to discuss volume pricing and lead-time commitments tailored to your maintenance schedule.
