EMERSON KJ3222X1-BA1 Ruggedized DCS Input Module for Harsh Environments

Product Overview

EMERSON KJ3222X1-BA1 Ruggedized DCS Input Module for Harsh Environments

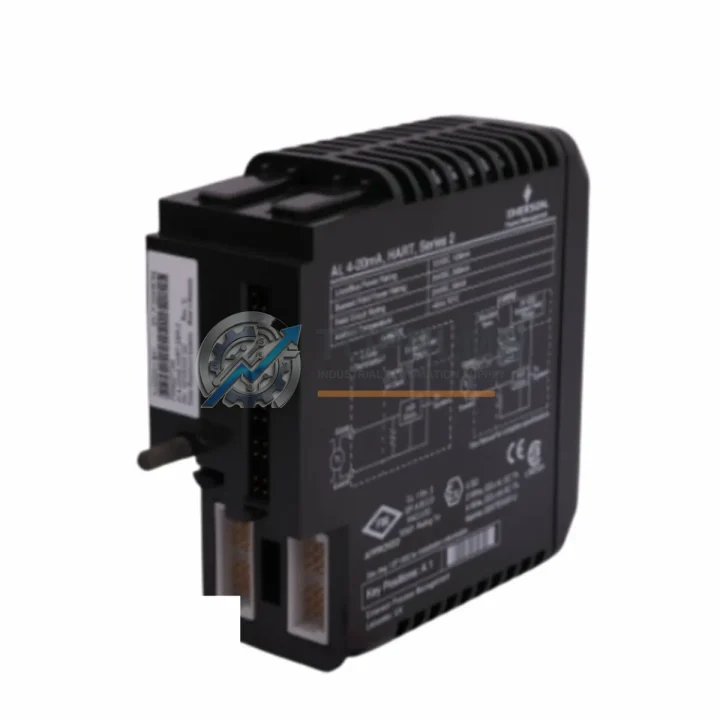

The EMERSON KJ3222X1-BA1 12P2532X122 CE4003S2B1 is a high-integrity DCS analog input module engineered for the EMERSON DeltaV distributed control system architecture. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, vibration-intensive heavy manufacturing floors, and zones with severe electromagnetic interference — this module delivers the signal accuracy and system stability that mission-critical operations demand. Whether deployed in a continuous production line or a safety-instrumented system, the KJ3222X1-BA1 is built to keep your process running without compromise.

Rugged Specifications Table

Comprehensive Protection Solutions

The KJ3222X1-BA1 does not operate in isolation — it is the sensing backbone of a broader DeltaV control architecture. In a typical DeltaV cabinet, this input module works in concert with the EMERSON KJ2201X1-BA1 DeltaV Controller, which processes the analog signals and executes the control strategy. Power integrity is maintained by the EMERSON KJ4001X1-BA1 DeltaV Power Supply, ensuring stable 24 VDC rail voltage even during grid fluctuations common in heavy industrial facilities.

For HART-enabled field instruments such as pressure transmitters, flow meters, and temperature sensors, the KJ3222X1-BA1 passes HART communication transparently to the DeltaV workstation, enabling remote diagnostics without process interruption. In installations where intrinsic safety is required — such as Zone 1 or Zone 2 hazardous areas — the module is paired with EMERSON MTL Zener barriers or galvanic isolators to protect both the field wiring and the module itself from fault currents.

On the output side, the EMERSON KJ3242X1-BA1 DeltaV Analog Output Module complements this input module by closing the control loop to final control elements such as control valves and variable frequency drives. For digital I/O expansion, the EMERSON KJ3221X1-BA1 DeltaV Digital Input Module and KJ3241X1-BA1 Digital Output Module are commonly installed on the same I/O carrier, sharing the same backplane bus and simplifying cabinet wiring.

Communication integrity across the DeltaV network is supported by the EMERSON KJ1501X1-BA2 DeltaV Ethernet Switch Module, which provides redundant network paths for controller-to-workstation communication. In safety-critical loops, the system may also incorporate EMERSON DeltaV SIS Safety Logic Solvers and SIS I/O modules that interface with the same field instruments monitored by the KJ3222X1-BA1, creating a layered protection architecture compliant with IEC 61511.

For terminal connectivity, EMERSON DeltaV I/O terminal blocks and marshalling panels provide the physical interface between field cables and the module’s carrier, ensuring clean, labeled, and maintainable wiring in high-density control cabinets. Together, these components form a complete, validated DeltaV I/O subsystem capable of sustaining continuous operation in the harshest process environments.

Application in Critical Infrastructure

The EMERSON KJ3222X1-BA1 is a proven workhorse across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities — including offshore platforms, gas compression stations, and pipeline SCADA nodes — this module monitors pressure, temperature, and flow signals from field transmitters in real time, enabling operators to detect process deviations before they escalate into safety events. Its optical isolation and EMC-hardened design make it resilient against the high-frequency electrical noise generated by variable frequency drives and large motor starters common in these environments.

In power generation plants, including coal-fired, gas turbine, and combined-cycle facilities, the KJ3222X1-BA1 is deployed in boiler control, turbine protection, and auxiliary systems where signal accuracy directly impacts plant efficiency and safety. Its HART pass-through capability allows maintenance teams to perform loop checks and calibration verification without removing the module from service, minimizing planned downtime.

In water and wastewater treatment plants, the module’s wide humidity tolerance and corrosion-resistant design allow it to operate reliably in wet, chemically aggressive environments. Mining and mineral processing operations benefit from its vibration tolerance, which allows stable signal acquisition even when installed near crushers, conveyors, and ball mills. In metallurgical and steel plants, where ambient temperatures near furnaces can be extreme, the module’s rated operating range and thermal management design ensure continuous signal integrity throughout the production cycle.

Across all these applications, the KJ3222X1-BA1 serves a dual role: as an active process monitoring component and as a long-term spare parts investment. Given EMERSON’s extended support lifecycle for the DeltaV S-Series platform, maintaining a certified spare of this module in the plant’s critical spare inventory is a recognized best practice for reducing mean time to repair (MTTR) during unplanned outages.

Security & Quality FAQ

Q1: What warranty coverage is provided with this module?
Every EMERSON KJ3222X1-BA1 12P2532X122 CE4003S2B1 shipped by TOPNLMS is backed by a 12-month quality warranty from the date of delivery. If the module fails under normal operating conditions within the warranty period, we will arrange a replacement or full refund. Our warranty covers functional defects identified during incoming inspection or field commissioning.

Q2: How is the module tested before shipment?
All modules undergo a multi-stage pre-shipment inspection process: visual inspection for physical damage, power-on functional verification, and where applicable, communication bus handshake testing. Modules are shipped in anti-static packaging with individual test records. We do not ship untested or uninspected units.

Q3: Is this module compatible with my existing DeltaV system version?
The KJ3222X1-BA1 is designed for the EMERSON DeltaV S-Series I/O subsystem and is compatible with DeltaV system versions 10.3 through 14.x and later. It uses the standard DeltaV S-Series carrier and is recognized natively by DeltaV Operate and DeltaV Diagnostics. If you are running an earlier system version or a non-standard configuration, please contact us at [email protected] before ordering to confirm compatibility.

Q4: Can you support long-term or repeat procurement for this module?
Yes. TOPNLMS maintains ongoing inventory of EMERSON DeltaV I/O modules, including the KJ3222X1-BA1 and related series components, to support plant maintenance programs, scheduled turnarounds, and emergency spare requirements. We can provide quotations for single units or bulk orders, and we support repeat purchase agreements for facilities with ongoing DeltaV maintenance needs. Contact us at [email protected] or +86 18359293191 to discuss your procurement schedule.
