Emerson KJ3222X1-BA1 12P2532X112 Original Industrial Spare DeltaV Compatible: System Stability & Industrial Spare Maintenance Value

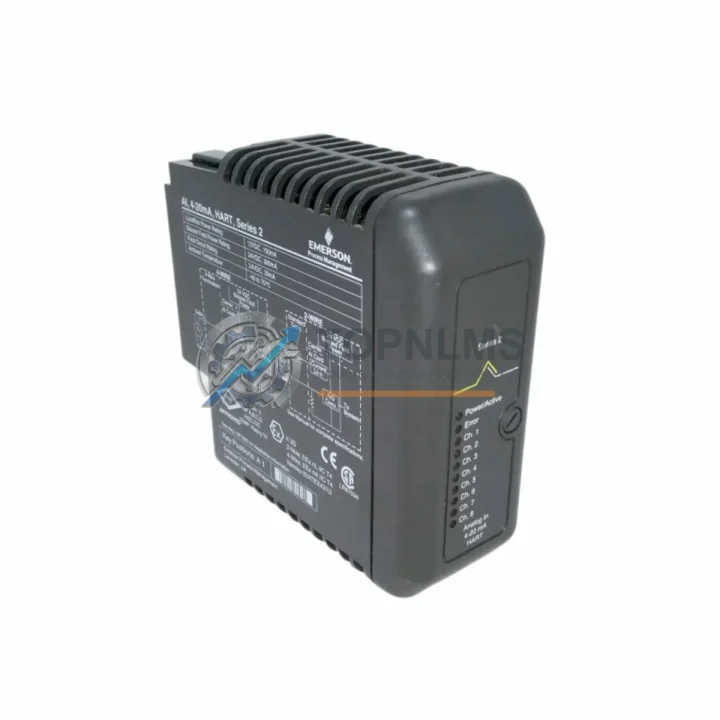

The Emerson KJ3222X1-BA1 (part number 12P2532X112) is an original HART-enabled Analog Input I/O module designed for the Emerson DeltaV distributed control system (DCS) platform. In process industries — including oil & gas, chemical, power generation, and pharmaceutical manufacturing — the DeltaV system is the backbone of continuous process control. When an analog input module fails or degrades, the consequences extend far beyond a single loop: entire process trains can trip, safety interlocks may activate, and unplanned downtime costs can escalate rapidly. Maintaining a verified, original spare of the KJ3222X1-BA1 in your on-site inventory is one of the most cost-effective risk mitigation strategies available to maintenance and reliability engineers.

This module supports up to 8 channels of 4–20 mA HART analog input, enabling simultaneous process variable acquisition and HART device communication without additional multiplexers. Its native integration with the DeltaV controller backplane ensures zero-configuration hot-swap replacement in most site configurations, dramatically reducing mean time to repair (MTTR) during unplanned outages. Each unit shipped from TOPNLMS has been inspected, function-tested, and is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Critical Technical Specs

Preventive Maintenance Strategy

A DeltaV control cabinet is an ecosystem of interdependent components. When scheduling a planned shutdown or responding to an unplanned trip, experienced maintenance teams know that replacing only the failed module is rarely sufficient — adjacent components that share the same backplane, power rail, or field wiring termination block are subject to the same thermal cycling, vibration, and electrical stress. During any inspection involving the KJ3222X1-BA1, it is best practice to simultaneously audit the following components.

The DeltaV I/O carrier and backplane assembly (such as the KJ3204X1-BA1 or KJ3001X1-BA1 controller carrier) should be inspected for bent connector pins, corrosion on the bus interface, and secure seating of all installed modules. A degraded backplane connector is a common root cause of intermittent channel faults that are misdiagnosed as module failures. Similarly, the DeltaV power supply module (e.g., KJ1501X1-BG2 or equivalent redundant PS unit) should be load-tested during the maintenance window — an aging power supply operating near its rated capacity will accelerate failure of downstream I/O modules.

Field wiring integrity is equally critical. The HART marshalling panel and terminal blocks connecting field transmitters to the KJ3222X1-BA1 should be inspected for loose terminations, moisture ingress, and insulation degradation. If the site uses signal isolators or HART barriers (such as MTL or P+F series) between the DCS and hazardous-area transmitters, these should be tested for loop resistance compliance and HART signal transparency. A marginal isolator can suppress HART communication without triggering a hard fault alarm, leading to silent data quality degradation.

For sites running redundant DeltaV configurations, the redundancy module (e.g., KJ2201X1-BA1 or equivalent) paired with this I/O module should be verified for active synchronization status. A redundancy module that has silently failed leaves the system operating in simplex mode — a risk that only becomes apparent when the primary module fails. During the same maintenance window, it is advisable to inspect DeltaV communication modules such as the CIOC (Controller I/O Card) or EIOC (Electronic Marshalling I/O Card) for firmware currency and communication health.

Finally, the field transmitters connected to the analog input channels — pressure transmitters, temperature transmitters, flow transmitters, and level transmitters — should be loop-calibrated and HART device descriptors verified. Pairing a freshly installed KJ3222X1-BA1 with uncalibrated or drifting transmitters will not restore measurement accuracy. A complete maintenance event should include calibration records for all 8 connected loops, ensuring the restored module delivers accurate process data from day one.

Strategic Replacement Solutions

The KJ3222X1-BA1 12P2532X112 is a mature DeltaV module that has been deployed in process plants worldwide since the early 2000s. Emerson’s DeltaV platform is designed for long lifecycle support, but original spare availability on the open market becomes increasingly constrained as production batches age. Sourcing a genuine, tested spare from TOPNLMS eliminates the risk of counterfeit modules — a growing concern in the industrial spare parts market — and ensures full compatibility with existing DeltaV system software versions without requiring controller reconfiguration or I/O assignment changes.

Unlike third-party compatible alternatives, an original KJ3222X1-BA1 retains full HART pass-through capability, native DeltaV diagnostic integration, and compliance with the original Emerson system qualification documentation. For plants operating under IEC 61511 functional safety requirements or FDA 21 CFR Part 11 validation frameworks, using original spare parts is often a regulatory requirement, not merely a preference. TOPNLMS provides a traceable inspection record and 12-month warranty with each shipment, supporting your site’s spare parts qualification and change management documentation.

For aging DeltaV installations where the original module series is approaching end-of-life, TOPNLMS recommends maintaining a minimum buffer stock of 2–3 units per critical control loop. This buffer supports both immediate corrective replacement and planned preventive swap-outs during scheduled turnarounds, without exposing the plant to lead-time risk from spot-market sourcing.

Support FAQ

Q1: Is this KJ3222X1-BA1 compatible with both DeltaV S-Series and M-Series controllers?
A: The KJ3222X1-BA1 is designed for the DeltaV I/O subsystem and is compatible with DeltaV S-Series and M-Series controller configurations using standard I/O carriers. Compatibility with specific DeltaV software versions should be verified against your site’s system configuration. TOPNLMS recommends confirming your DeltaV version before installation if your system is running a non-standard or heavily customized configuration.

Q2: What pre-shipment testing does TOPNLMS perform on this module?
A: Each KJ3222X1-BA1 unit undergoes visual inspection for physical damage, connector integrity verification, and functional power-on testing prior to shipment. Units are packaged in anti-static ESD-safe materials with protective foam inserts. A 12-month warranty is included, covering manufacturing defects and operational failures under normal industrial use conditions from the date of receipt.

Q3: How quickly can this module be installed as a field replacement?
A: In a standard DeltaV configuration, the KJ3222X1-BA1 supports hot-swap replacement without requiring a controller shutdown. The module is inserted into the I/O carrier slot, and the DeltaV system automatically recognizes and commissions it based on the existing I/O assignment. Full channel restoration typically occurs within minutes of physical installation, minimizing process downtime. Site-specific safety procedures and change management requirements should always be followed.

Q4: What is the recommended spare parts inventory strategy for this module?
A: For critical process control loops, a minimum of 2 units per installed module type is recommended as on-site buffer stock. For plants with 10 or more KJ3222X1-BA1 modules installed, a 10–15% buffer ratio is a common industry benchmark. Spare parts should be stored in a climate-controlled environment, inspected annually, and rotated into service on a first-in, first-out basis to prevent shelf-life degradation of electronic components.
