Emerson KJ3222X1-BA1 12P2532X092 DeltaV HART AI Upgrade

Product Overview

Emerson KJ3222X1-BA1 12P2532X092 DeltaV HART AI Upgrade: Seamless Transition from Legacy Analog Input Systems

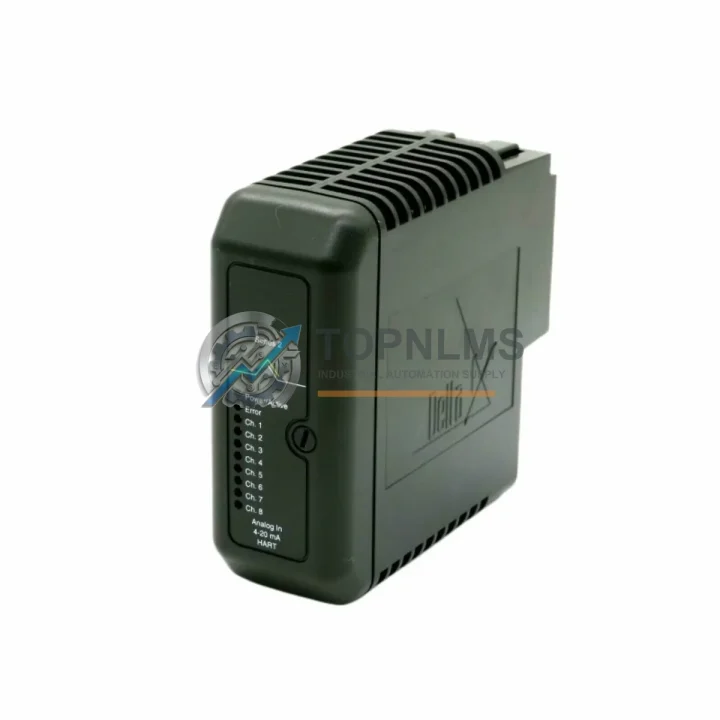

The Emerson KJ3222X1-BA1 12P2532X092 is a DeltaV Series HART-enabled Analog Input module designed for high-density process control environments. As legacy DeltaV systems age and original modules reach end-of-life, plant engineers and procurement teams face increasing pressure to source verified replacement units that maintain full compatibility with existing field wiring, marshalling cabinets, HART device libraries, and DeltaV controller configurations. This module addresses that need directly — offering a drop-in replacement path that minimizes engineering rework, reduces commissioning time, and protects the integrity of your existing control architecture.

Whether you are replacing a failed unit in a running plant, building a critical spare inventory, or executing a phased migration from an older DeltaV hardware generation, the KJ3222X1-BA1 12P2532X092 delivers the signal accuracy, HART pass-through capability, and DeltaV I/O bus compatibility required for uninterrupted process operations. This module supports 8-channel HART analog input, accepts 4–20 mA field signals, and integrates directly into the DeltaV S-series and M-series controller platforms without firmware modification or I/O mapping changes.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DeltaV analog input migration rarely involves a single module swap. In practice, plant teams upgrading from older DeltaV hardware generations or replacing failed I/O cards must also evaluate the surrounding system components to ensure end-to-end signal integrity and communication reliability.

When installing the KJ3222X1-BA1 12P2532X092 as a replacement, the associated DeltaV I/O carrier — such as the KJ3001X1-BA1 8-channel carrier — must be inspected for terminal wear and backplane connector condition. If the carrier shows signs of oxidation or mechanical damage from years of field service, replacing it alongside the AI module eliminates a common source of intermittent signal faults post-commissioning.

For plants running HART-enabled field instruments such as Rosemount 3051 pressure transmitters or Fisher FIELDVUE digital valve controllers, the HART pass-through capability of this module allows AMS Device Manager to maintain full device diagnostics without any changes to the HART multiplexer configuration or field wiring topology. This is particularly valuable in upgrade projects where the DeltaV HART Interface Module (CHIM) is already deployed at the controller level and must continue to serve multiple I/O cards simultaneously.

In control cabinets where space is constrained, engineers migrating from older DeltaV hardware may also need to evaluate the DeltaV Power Supply — typically the KJ4001X1-BA1 or equivalent redundant power supply module — to confirm that the existing bus load budget accommodates the replacement I/O card without derating. This is especially relevant in high-density cabinets where 16 or more I/O modules share a single power rail.

Communication integrity between the DeltaV controller and the workstation network is maintained through the DeltaV Application Station and the DeltaV Pro Plus workstation infrastructure. When performing a hot-swap replacement of the KJ3222X1-BA1 12P2532X092 in a running system, the DeltaV controller’s redundancy manager handles the I/O re-initialization automatically, provided the replacement module is recognized within the DeltaV Explorer I/O assignment database. No manual download to the controller is required in most revision-compatible swap scenarios.

For plants executing a broader migration from legacy DeltaV hardware to the DeltaV S-series platform, the KJ3222X1-BA1 12P2532X092 is fully compatible with the DeltaV Electronic Marshalling architecture when used with the CHARM I/O Card (CIOC) and associated CHARMs terminal blocks. This allows a phased migration strategy where traditional I/O cards and Electronic Marshalling coexist within the same DeltaV system, reducing the capital expenditure and operational risk of a full cutover.

Additional components commonly sourced alongside this module in migration projects include the DeltaV Analog Output module (KJ3242X1-BA1), the DeltaV Discrete Input module (KJ2201X1-BA1), the DeltaV Discrete Output module (KJ2211X1-BA1), and the DeltaV Serial Interface Module for legacy Modbus RTU device integration. Procurement teams building a comprehensive spare parts inventory for a DeltaV-based plant should consider stocking these modules alongside the KJ3222X1-BA1 12P2532X092 to minimize future downtime exposure.

Retrofit Guidance FAQ

Q: Do I need to rewire field terminals when replacing with KJ3222X1-BA1 12P2532X092?
A: No. The module uses the same DeltaV I/O carrier terminal block interface. Existing 4–20 mA field wiring connects to the carrier, not the module itself, so no rewiring is required at the marshalling cabinet or junction box level.

Q: Will my existing DeltaV control module programs require modification?
A: In the vast majority of revision-compatible replacements, no program changes are needed. The DeltaV controller recognizes the replacement module by its device descriptor and re-establishes I/O communication automatically. If the replacement involves a hardware revision change, a DeltaV Explorer re-download may be required, but no control module logic changes are necessary.

Q: Is HART communication maintained after the swap?
A: Yes. The KJ3222X1-BA1 12P2532X092 supports HART 5, 6, and 7 protocol pass-through. AMS Device Manager will re-establish communication with all HART field devices on the replaced module’s channels within minutes of the module coming online, without any reconfiguration of the HART network or device tag assignments.

Q: What is the physical installation procedure for a hot-swap replacement?
A: The DeltaV I/O subsystem supports hot-swap replacement without controller shutdown. Remove the failed module from the carrier, insert the replacement KJ3222X1-BA1 12P2532X092, and the DeltaV controller will detect the new module and restore I/O communication automatically. Confirm channel status in DeltaV Operate or DeltaV Diagnostics before returning the loop to automatic control.

Q: Does this module fit the same physical slot in my existing DeltaV cabinet?
A: Yes. The KJ3222X1-BA1 12P2532X092 uses the standard DeltaV I/O card form factor and mounts on the same KJ3001X1-BA1 or compatible 8-channel carrier already installed in your cabinet. No DIN rail modifications, bracket changes, or cabinet rework are required.

Q: What communications protocol does this module use internally?
A: The module communicates with the DeltaV controller via the proprietary DeltaV I/O bus over the backplane. Externally, it supports HART protocol on each of its 8 analog input channels. It does not require a separate Modbus, PROFIBUS, or FOUNDATION Fieldbus configuration.

Warranty Assurance

Every Emerson KJ3222X1-BA1 12P2532X092 shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point functional inspection including power-on verification, I/O bus communication check, and channel signal integrity testing. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is available to assist with technical verification, failure documentation, and replacement logistics. We maintain stock of the KJ3222X1-BA1 12P2532X092 and related DeltaV I/O modules to support rapid replacement dispatch, typically within 1–3 business days from Xiamen.

For procurement teams managing critical spare inventories, we offer quantity pricing and lead-time commitments on repeat orders. All units are shipped with original packaging where available, and include a test report upon request. Export documentation, commercial invoices, and packing lists are provided for international shipments to support customs clearance.
