Emerson KJ3221X1BA2 Original Industrial Spare DeltaV Compatible

Product Overview

Emerson KJ3221X1BA2 Original Industrial Spare DeltaV Compatible: System Stability and Industrial Spare Parts Maintenance Value

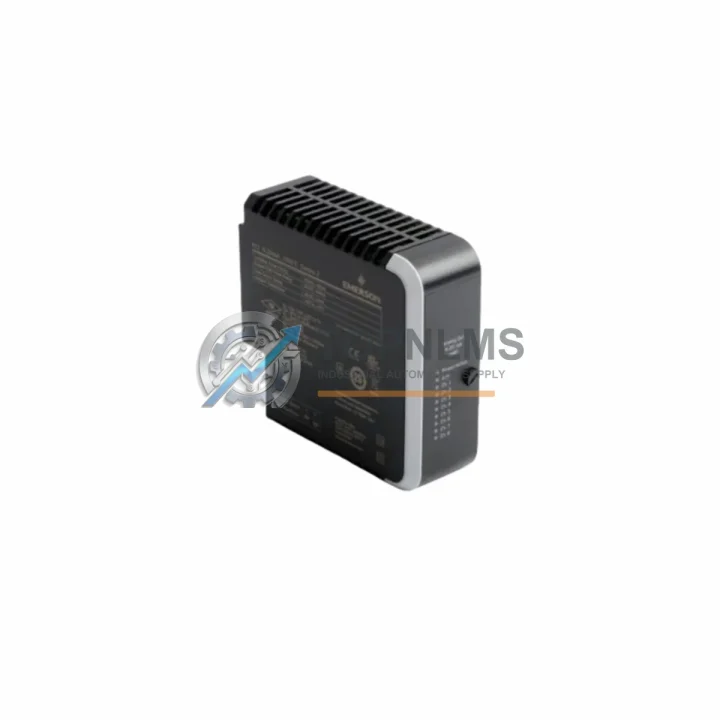

The Emerson KJ3221X1BA2 is an original analog input module designed for the DeltaV Series Distributed Control System (DCS). In process industries — including oil & gas, chemical, power generation, and pharmaceutical manufacturing — the reliability of every I/O module in the control cabinet directly determines plant uptime. The KJ3221X1BA2 provides stable, high-resolution analog signal acquisition, serving as a critical interface between field instruments and the DeltaV controller. When this module fails or degrades, the consequences range from inaccurate process readings to full loop shutdowns, making rapid, like-for-like replacement with a verified original spare the only acceptable maintenance strategy.

Sourcing an original KJ3221X1BA2 from a reliable industrial spare parts supplier eliminates the compatibility risks associated with counterfeit or refurbished alternatives. Each unit supplied by TOPNLMS undergoes pre-shipment functional testing, is backed by a 12-month warranty, and ships with full documentation to support your maintenance records and audit trail.

Critical Technical Specs Table

Preventive Maintenance Strategy

A scheduled maintenance inspection of a DeltaV DCS cabinet should never be limited to a single module. The KJ3221X1BA2 analog input module operates within an interconnected ecosystem of I/O hardware, power distribution, and communication infrastructure. When a maintenance team identifies degraded analog readings or a failed AI channel, the root cause may extend beyond the module itself.

During any planned shutdown or corrective maintenance event involving the KJ3221X1BA2, experienced maintenance engineers routinely inspect and, where necessary, replace the following associated components to prevent repeat failures and extend system life:

• DeltaV I/O Carrier (KJ3002X1-BA1 / KJ3002X1-BC1): The carrier board that seats the KJ3221X1BA2 is subject to connector wear and corrosion over years of operation. A damaged carrier can cause intermittent module faults even with a new AI module installed.
• DeltaV Controller Module (MD Plus / MD Controller): If multiple I/O modules are reporting faults simultaneously, the controller module itself should be evaluated. Keeping a spare MD Plus controller on the shelf is standard practice in high-availability DCS environments.
• DeltaV Power Supply Module (KJ4001X1-BA1): Unstable bus voltage is a leading cause of premature I/O module failure. The DeltaV power supply module should be tested for output ripple and voltage stability during every major inspection cycle.
• Analog Output Module (KJ3222X1BA2): In closed-loop control applications, the analog input and analog output modules work in tandem. If the AI module has failed, the corresponding AO module in the same control loop should be inspected for signal integrity.
• HART Multiplexer / Signal Conditioner: For HART-enabled field instruments connected to the KJ3221X1BA2, the HART multiplexer or signal isolator in the marshalling cabinet should be verified to ensure clean signal transmission.
• Field Wiring Terminal Blocks and Marshalling Panels: Loose or corroded terminal connections in the marshalling cabinet are a frequent source of analog signal noise. Terminal blocks should be inspected and torqued to specification during every AI module replacement.
• DeltaV Digital Input Module (KJ3201X1BA2): In mixed I/O cabinets, digital input modules sharing the same carrier or power bus should be functionally tested when an analog module fault is detected.
• Fuse Modules and Circuit Protection (MTL or Phoenix Contact): Fuse modules protecting the 24 VDC field instrument loop power should be checked and replaced as part of any AI module maintenance event to prevent recurrence.
• Communication Module / DeltaV CHARM I/O Card: In newer DeltaV installations using CHARM (Characterization Module) architecture, the associated CIOC (CHARM I/O Card) should be inspected alongside any analog I/O replacement.
• Redundant Controller Backplane: For redundant DeltaV controller configurations, the backplane connecting primary and secondary controllers should be inspected for physical damage and connector integrity during any cabinet-level maintenance.

Maintaining a curated spare parts inventory that covers these components — not just the KJ3221X1BA2 alone — is the foundation of a mature preventive maintenance program. Unplanned downtime in process industries typically costs far more than the combined value of a well-stocked spare parts cabinet.

Strategic Replacement Solutions

The KJ3221X1BA2 is a direct replacement for the earlier KJ3221X1BA1 revision, maintaining full backward compatibility with existing DeltaV I/O carriers and controller configurations. No firmware changes or system reconfiguration are required when substituting the BA2 revision for the BA1 in the field, making it the preferred upgrade path for sites still operating legacy DeltaV hardware.

For plants running aging DeltaV S-Series or M-Series systems, the availability of original spare modules like the KJ3221X1BA2 is essential to system longevity. Emerson’s DeltaV platform has an installed base spanning decades, and many facilities have made a deliberate decision to extend the operational life of their existing DCS rather than undertake a costly migration. In this context, securing a reliable supply of original I/O modules is a strategic procurement decision, not merely a reactive maintenance action.

TOPNLMS maintains stock of the KJ3221X1BA2 and related DeltaV I/O modules to support rapid dispatch. Standard lead time for in-stock units is 3–7 business days for international shipments, with express options available for critical plant shutdowns. All units are shipped with anti-static packaging, individual test reports, and a 12-month warranty certificate. This procurement model allows maintenance managers to reduce mean time to repair (MTTR) and avoid the extended lead times associated with ordering directly through OEM channels.
