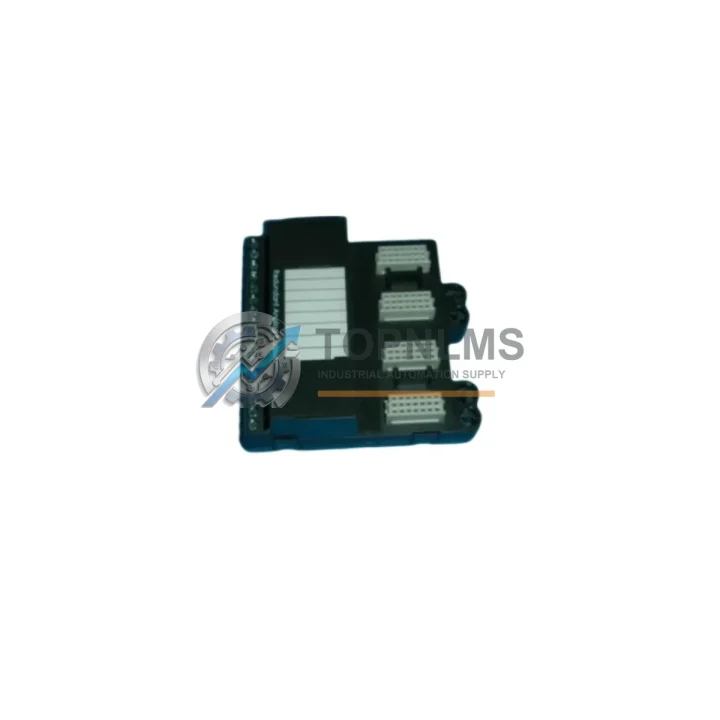

Emerson KJ3221X1-EA1 12P2534X022 Replacement for DeltaV

Product Overview

Emerson KJ3221X1-EA1 12P2534X022 Replacement for DeltaV: Seamless Transition & Legacy System Upgrade

The Emerson KJ3221X1-EA1 12P2534X022 is a DeltaV Series Field Termination Assembly (FTA) designed for distributed control system (DCS) applications in process automation, oil & gas, chemical, power generation, and advanced manufacturing environments. As Emerson continues to evolve the DeltaV platform, many facilities operating legacy DeltaV MD, DeltaV S-series, or early DeltaV M-series controllers are now facing end-of-life (EOL) notices on original FTA modules. The KJ3221X1-EA1 12P2534X022 serves as a direct replacement and upgrade path for those discontinued assemblies, enabling engineers to restore full system functionality without redesigning the control architecture.

This FTA interfaces directly with DeltaV I/O subsystem cards, providing the field-side terminal block connections for analog or discrete signals. When migrating from an older FTA variant — such as the KJ3221X1-BA1 or KJ3221X1-CA1 — the KJ3221X1-EA1 12P2534X022 maintains the same physical footprint and terminal layout, meaning existing field wiring can be reconnected without re-labeling or re-routing cables. This dramatically reduces the risk of wiring errors during a live system cutover and shortens the maintenance window required for the swap.

In a typical DeltaV upgrade scenario, the FTA is mounted on a standard DeltaV carrier or marshalling cabinet rail alongside the associated I/O card — for example, a KJ3002X1-BA1 8-channel AI card or a KJ3003X1-BA1 discrete input card. The KJ3221X1-EA1 12P2534X022 is fully compatible with these I/O subsystem cards and does not require firmware changes or re-parameterization of the DeltaV controller. Engineers can retain existing DeltaV Explorer configurations, module tags, and HART pass-through settings, making this one of the lowest-risk hardware replacements available for the DeltaV platform.

For facilities running a broader DeltaV system modernization, this FTA replacement is often performed in conjunction with upgrading the DeltaV MD Plus controller (KJ2003X1-BA1) or transitioning to the DeltaV S-series controller platform. In these cases, the KJ3221X1-EA1 12P2534X022 continues to function as the field termination layer, preserving the investment in existing marshalling infrastructure while the controller tier is upgraded. Power supply compatibility is maintained through the standard DeltaV 24 VDC bus, and no additional power conditioning is required for the FTA itself.

Communication protocol continuity is another key advantage. The DeltaV system uses a proprietary high-speed I/O bus between the controller and I/O cards, and the FTA sits downstream of this bus at the field termination layer. Replacing the KJ3221X1-EA1 12P2534X022 does not affect HART communication, Foundation Fieldbus segment integrity, or PROFIBUS DP node addressing — all of which are managed at the I/O card and controller level. This means HART-enabled field instruments, such as pressure transmitters or control valves, continue to communicate without reconfiguration after the FTA swap.

Physical installation is straightforward. The KJ3221X1-EA1 12P2534X022 mounts on the standard DeltaV FTA carrier rail (KJ3221X1-series compatible) and connects to the I/O card via the standard ribbon or direct-connect interface. Cabinet space requirements are identical to the predecessor model, so no modifications to the marshalling cabinet or DIN rail layout are needed. This is particularly important in brownfield retrofit projects where cabinet space is constrained and any physical modification would require additional engineering approval and documentation.

From a procurement and project planning perspective, TOPNLMS maintains verified stock of the KJ3221X1-EA1 12P2534X022 and can support both single-unit emergency replacements and bulk orders for planned turnaround or system-wide FTA standardization projects. Each unit undergoes pre-shipment functional verification, and all units are covered by a 12-month warranty from the date of shipment. Lead times are typically 3–7 business days for standard orders, with expedited options available for critical plant situations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DeltaV FTA migration rarely involves a single component. In most brownfield upgrade projects, the KJ3221X1-EA1 12P2534X022 is replaced as part of a broader I/O subsystem refresh. Engineers typically address the associated DeltaV I/O carrier (KJ3221X1-series carrier) at the same time to ensure the mechanical interface is in good condition. If the project scope includes controller modernization, the DeltaV MD Plus controller KJ2003X1-BA1 is the most common pairing, providing expanded memory and improved scan rates while retaining full backward compatibility with existing FTA wiring.

For facilities migrating from older discrete I/O architectures, the KJ3003X1-BA1 8-channel discrete input card and KJ3001X1-BA1 8-channel analog input card are frequently replaced alongside the FTA to eliminate the risk of cascading failures from aging hardware. In systems where HART communication is critical for asset management, upgrading to the KJ3002X1-BA1 HART-enabled AI card ensures that all HART device diagnostics remain accessible through DeltaV Asset Management Solutions (AMS) without additional configuration.

Power distribution within the marshalling cabinet is another area of attention during FTA replacement projects. The DeltaV power supply module (KJ3204X1-BA1) is often inspected and replaced preventively when the FTA is swapped, as both components share the same service interval in most maintenance programs. For projects involving communication network upgrades, the DeltaV CIOC (Controller I/O Card) and associated DeltaV redundant network interface modules may also be refreshed to bring the entire I/O subsystem to a current, supportable revision level.

In control cabinet environments where signal isolation is required — particularly for long cable runs or high-noise industrial environments — signal isolator modules compatible with the DeltaV terminal block layout are recommended as part of the upgrade bill of materials. Finally, for commissioning and diagnostic purposes, a DeltaV programming and diagnostic cable compatible with the workstation running DeltaV Operate or DeltaV Diagnostics is essential to verify I/O channel integrity after the FTA swap is complete.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing with KJ3221X1-EA1 12P2534X022?
A: Yes. The terminal block layout of the KJ3221X1-EA1 12P2534X022 is pin-compatible with predecessor revisions (BA1, CA1, DA1). Existing field cables can be reconnected to the same terminal positions without re-labeling, provided the wiring documentation is verified against the current revision’s terminal assignment drawing before energization.

Q: Is any DeltaV programming or configuration change required after the swap?
A: No. The FTA is a passive termination assembly and does not contain firmware or configurable parameters. DeltaV module tags, I/O channel assignments, and HART device configurations remain intact after the replacement. A channel integrity check via DeltaV Diagnostics is recommended as a post-installation verification step.

Q: What communication protocols are supported?
A: The KJ3221X1-EA1 12P2534X022 supports all signal types routed through the associated DeltaV I/O card, including 4–20 mA analog, discrete 24 VDC, and HART (when paired with a HART-enabled I/O card). The FTA itself is protocol-agnostic at the field termination layer.

Q: Will this FTA fit in my existing marshalling cabinet without modification?
A: Yes. The KJ3221X1-EA1 12P2534X022 uses the same physical dimensions and DIN rail mounting interface as all KJ3221X1-series FTAs. No cabinet modifications, additional DIN rail sections, or cable tray changes are required.

Q: How do I verify the FTA is functioning correctly after installation?
A: After installation, use DeltaV Diagnostics to perform a channel-by-channel I/O verification. Check for any channel fault alarms in DeltaV Operate and confirm HART communication is active on all HART-enabled channels. A loop check against field instruments is recommended before returning the loop to automatic control.

Q: What if my legacy system uses a different FTA revision that is no longer available?
A: The KJ3221X1-EA1 12P2534X022 is the current production revision and is backward compatible with all prior KJ3221X1-series revisions. If you are unsure about compatibility with a specific legacy configuration, contact TOPNLMS with your existing FTA part number and system documentation for a pre-sale compatibility review.

Warranty Assurance

Every KJ3221X1-EA1 12P2534X022 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify physical integrity, terminal block condition, and connector interface quality. Units that do not meet our inspection criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, depending on the customer’s preference and the nature of the defect. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. For critical plant situations requiring immediate replacement, expedited shipment options are available at no additional warranty cost.

All units are shipped with appropriate ESD-protective packaging and, where applicable, original manufacturer packaging. Shipment is from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available depending on order volume and urgency. Export documentation, including commercial invoice, packing list, and certificate of origin, is provided with every shipment to support customs clearance.

TOPNLMS maintains a dedicated after-sales support team available via email and phone for technical questions, installation guidance, and warranty processing. We are committed to supporting your plant’s uptime and providing the procurement assurance that industrial buyers require when sourcing critical control system components.
