Emerson KJ3221X1-BA1 12P2531X082 Upgrade for DeltaV DCS

Product Overview

Emerson KJ3221X1-BA1 12P2531X082 Upgrade for DeltaV DCS: Smooth Transition, Zero Compromise

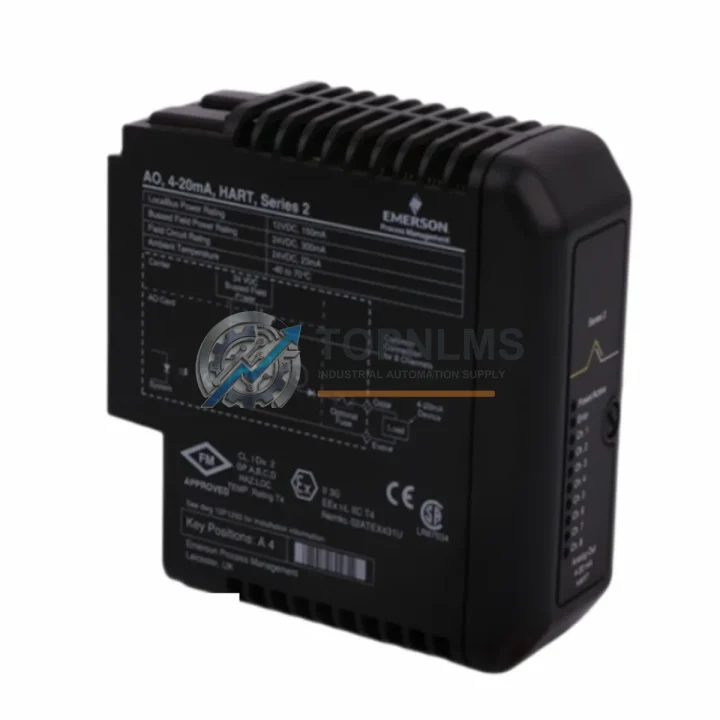

The Emerson KJ3221X1-BA1 12P2531X082 is a proven 8-channel Analog Output HART Module engineered for the Emerson DeltaV Distributed Control System (DCS). As legacy DeltaV installations age and original modules approach end-of-life, plant engineers and procurement teams face increasing pressure to source verified, drop-in replacement and upgrade solutions that preserve system integrity — without triggering a full-scale control system overhaul or extended production shutdown.

TOPNLMS specializes in sourcing, pre-shipment testing, and supplying hard-to-find DCS modules including the KJ3221X1-BA1 12P2531X082. Whether you are executing a controlled module-level swap, migrating from an earlier DeltaV hardware revision, or transitioning from a legacy Fisher-Rosemount or Provox DCS platform, this module enables a smooth, low-risk upgrade path with full compatibility across the DeltaV I/O architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions: Migration-Ready Components for DeltaV DCS

A successful DeltaV module upgrade rarely involves a single component in isolation. When replacing or upgrading the KJ3221X1-BA1 12P2531X082, field engineers typically evaluate a broader set of interdependent hardware during the same maintenance window to ensure the entire I/O subsystem performs reliably after the transition.

The KJ3221X1-BA1 12P2531X082 mounts directly onto a DeltaV I/O Carrier (KJ3001X1-BA1 or equivalent), which provides the physical bus connection and marshalling terminal interface. If the carrier shows signs of corrosion, bent connector pins, or intermittent contact — common in installations exceeding ten years — it should be replaced simultaneously to prevent repeat failures after the module upgrade. Alongside the carrier, the DeltaV I/O Subsystem Power Supply (KJ4001X1-BA1) warrants inspection: an aging or undersized power supply is a frequent root cause of unexplained AO module faults in legacy DeltaV installations.

For facilities running mixed analog and digital I/O architectures, the migration scope often extends to DeltaV Analog Input HART Modules (KJ3002X1-BA1) installed in adjacent carrier slots, particularly where process control loops share the same marshalling cabinet. Upgrading the AO module while leaving degraded AI modules in place can introduce asymmetric loop performance that complicates post-migration commissioning and loop tuning.

HART communication integrity is a critical checkpoint in any DeltaV upgrade. Where field devices communicate via HART over the 4–20 mA loop, a HART Multiplexer or HART Modem may be present in the signal path between the DeltaV I/O carrier and the field junction box. These devices must be verified for HART revision compatibility — particularly when upgrading from HART 5 to HART 7 — to ensure the replacement module communicates correctly with transmitters such as Rosemount 3051 pressure transmitters or Fisher FIELDVUE digital valve controllers.

In control cabinets where physical space is constrained, engineers should also assess the DeltaV Controller Module (MD or MQ series) and its associated DeltaV I/O Bus Extender to confirm the upgraded module is recognized within the existing node topology without requiring a DeltaV database rebuild. In most cases, the KJ3221X1-BA1 12P2531X082 is auto-detected by DeltaV Explorer upon insertion, eliminating the need for manual module commissioning and significantly reducing upgrade downtime.

For sites executing a broader DCS modernization — transitioning from a legacy Fisher-Rosemount RS3 or Provox DCS platform to DeltaV — the KJ3221X1-BA1 12P2531X082 is a standard component in the target DeltaV I/O architecture. In these migration projects, it is typically deployed alongside DeltaV Serial Interface Modules (KJ3232X1-BA1) for legacy serial device integration, and DeltaV Foundation Fieldbus H1 Interface Modules where fieldbus segments are being retained from the legacy system.

Signal conditioning and isolation are equally relevant in brownfield upgrades. Where existing field wiring introduces ground loops or signal noise, DIN-rail mounted signal isolators or loop-powered signal conditioners are inserted between the marshalling terminal block and the field device to protect the upgraded AO module from electrical interference — a standard requirement in petrochemical, power generation, and chemical processing environments.

TOPNLMS maintains stock of these complementary DeltaV components and can assist procurement teams in sourcing a complete bill of materials for a planned maintenance shutdown, reducing vendor count and simplifying logistics coordination across the upgrade project.

Retrofit Guidance FAQ

Q: Do I need to rewire the terminal block when upgrading to the KJ3221X1-BA1 12P2531X082?
A: No. The upgrade module uses the same DeltaV I/O carrier and marshalling terminal block as the original unit. Field wiring connected to the carrier does not need to be disturbed. Remove the legacy module from the carrier slot and insert the replacement — the carrier retains all wiring connections, eliminating rewiring risk and reducing upgrade time.

Q: Will DeltaV Explorer automatically recognize the upgraded module?
A: Yes. The KJ3221X1-BA1 12P2531X082 is auto-recognized by DeltaV Explorer upon insertion and appears in the I/O subsystem tree under its assigned node. No manual module type configuration is required, though channel-level parameter verification — including output range, HART tag assignment, and failsafe values — is recommended after installation.

Q: Is the module compatible with HART 7 field devices after the upgrade?
A: The KJ3221X1-BA1 12P2531X082 supports HART communication over the 4–20 mA output loop. Full HART 7 compatibility depends on the DeltaV system firmware version installed on your controller. Verify your DeltaV controller firmware revision against Emerson’s HART 7 compatibility matrix before connecting HART 7 field devices to the upgraded module.

Q: Can the module be swapped during live plant operation without a full shutdown?
A: Hot-swap capability depends on whether your DeltaV I/O subsystem is configured with redundant power and whether the affected control loops can tolerate a brief output interruption during the swap. In non-redundant configurations, associated output channels will transition to their configured failsafe state during the replacement. Coordinate with your DCS engineer and process safety team before performing a live upgrade.

Warranty Assurance

Every Emerson KJ3221X1-BA1 12P2531X082 supplied by TOPNLMS is backed by a 12-Month Warranty covering functional defects under normal operating conditions. Our pre-shipment testing protocol includes power-on verification, 8-channel output calibration check, and HART communication validation — ensuring the module performs to specification before it leaves our facility.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, with an average response time of 1 business day for warranty inquiries. We maintain buffer stock of high-demand DeltaV modules to support rapid replacement dispatch, minimizing the impact on your plant operations and upgrade schedule.

For time-critical plant shutdowns or emergency upgrade requirements, expedited shipping options are available to most global destinations. Our logistics team coordinates with freight forwarders experienced in industrial equipment export, ensuring proper documentation, customs compliance, and on-time delivery. Procurement teams can request a formal quotation, proforma invoice, or certificate of conformance by contacting our sales team directly. We support standard B2B procurement workflows including PO-based ordering, bank transfer, and LC payment terms for qualified buyers.
