EMERSON KJ3209X1-BA1 Replacement for DeltaV DO Series

Product Overview

EMERSON KJ3209X1-BA1 Replacement for DeltaV DO Series: Seamless Migration & Upgrade

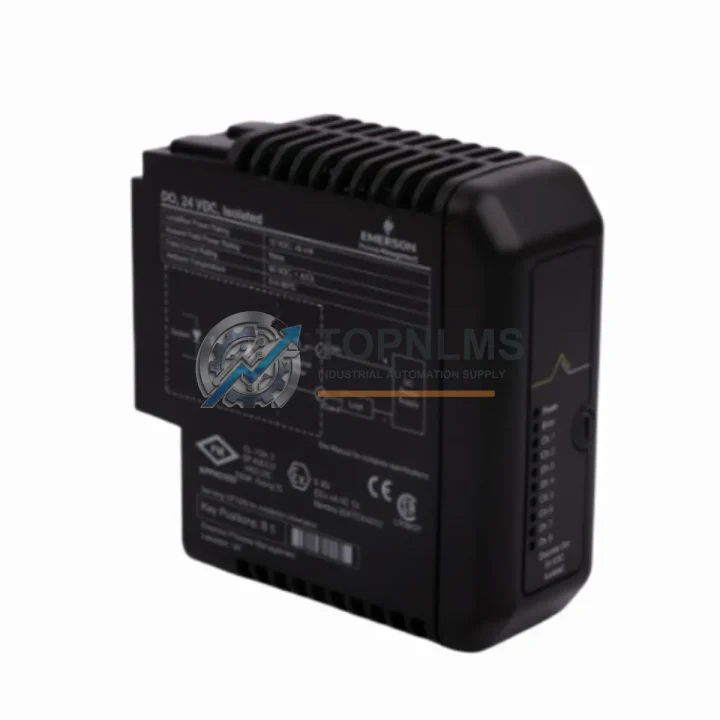

The EMERSON KJ3209X1-BA1 (also referenced as 12P3905X012 and VE4002S2T1B1) is an 8-channel, 24 VDC Digital Output module designed for the DeltaV distributed control system platform. As legacy DeltaV installations age and original spare inventory becomes scarce, plant engineers and procurement teams increasingly seek verified replacement units that preserve existing wiring infrastructure, I/O channel mapping, and controller logic without requiring a full system redesign. TOPNLMS supplies tested KJ3209X1-BA1 modules with a 12-month warranty, enabling facilities to extend the operational life of their DeltaV architecture while deferring costly full-system migrations.

Whether your site is running a DeltaV S-series controller with an MD or MD Plus node, or operating within a larger hybrid architecture that integrates legacy PROVOX or RS3 I/O marshalling panels, the KJ3209X1-BA1 slots directly into the standard DeltaV I/O carrier without modification. The module’s 24 VDC sourcing output configuration is compatible with the field wiring conventions used across the DeltaV M-series and S-series I/O subsystems, meaning existing cable schedules, terminal block assignments, and loop drawings remain valid after replacement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DeltaV DO module replacement rarely involves a single component in isolation. During a planned or emergency retrofit, field engineers typically address the broader I/O subsystem to ensure long-term reliability. When replacing the KJ3209X1-BA1, it is common to simultaneously audit adjacent modules on the same I/O carrier, including the KJ3001X1-BA1 DeltaV Digital Input module and the KJ3221X1-BA1 Analog Input module, both of which share the same carrier and backplane communication architecture. If the carrier itself shows signs of wear or connector fatigue, the KJ3204X1-BA1 I/O carrier assembly is the appropriate replacement unit to restore full mechanical and electrical integrity.

For sites migrating from older PROVOX or RS3 distributed I/O marshalling to a consolidated DeltaV architecture, the KJ3224X1-BA1 HART Analog Output module is frequently added alongside DO upgrades to support smart field device diagnostics over the same wiring infrastructure. Power distribution within the control cabinet is another critical consideration: the KJ3002X1-BA1 DeltaV Power Supply module and associated bus bars must be verified for adequate current capacity when expanding the I/O count or replacing multiple modules in a single maintenance window.

Communication continuity is equally important. DeltaV controllers such as the MD Plus Controller (KJ2003X1-BA1) communicate with I/O subsystems over the DeltaV proprietary backplane bus, and no protocol reconfiguration is required when swapping a like-for-like DO module. However, for sites that are simultaneously upgrading their supervisory layer or integrating with a SCADA system via OPC DA/UA, the DeltaV OPC Server configuration should be reviewed to confirm that tag addresses remain consistent after the hardware swap. If the plant also operates Modbus RTU or PROFIBUS DP field devices alongside the DeltaV I/O, signal isolators and protocol converters installed in the marshalling cabinet should be inspected to confirm they are not affected by the DO channel reassignment.

For facilities undertaking a broader control cabinet modernization, the KJ3209X1-BA1 replacement is often paired with an HMI refresh. DeltaV Operate workstations running on legacy Windows platforms may require a parallel software upgrade, but the I/O hardware change itself is transparent to the HMI layer, as DeltaV Explorer automatically detects and commissions the replacement module without manual tag remapping.

Retrofit Guidance FAQ

Q: Do I need to rewire the field terminals when replacing the KJ3209X1-BA1?
No. The KJ3209X1-BA1 is a direct drop-in replacement. The existing field wiring connected to the I/O carrier terminal blocks remains unchanged. Simply remove the faulty module, insert the replacement, and allow DeltaV Explorer to auto-commission the new hardware.

Q: Will my DeltaV controller recognize the replacement module automatically?
Yes. DeltaV uses automatic module recognition via the backplane bus. Once the replacement KJ3209X1-BA1 is seated in the carrier, the DeltaV MD or MD Plus controller will detect it and restore the associated I/O channel assignments without requiring a download or logic modification, provided the module type and channel configuration match the original.

Q: Is the communication protocol affected by the module swap?
No. The KJ3209X1-BA1 communicates exclusively over the DeltaV proprietary backplane bus. There is no Ethernet, PROFIBUS, or Modbus configuration required at the module level. All higher-level communication paths, including OPC server connections and DeltaV Operate displays, remain unaffected.

Q: Does the replacement module fit in the same physical slot?
Yes. The KJ3209X1-BA1 occupies a standard DeltaV I/O slot on the carrier. No mechanical modification to the cabinet, carrier, or DIN rail mounting is required. The module’s form factor is identical to the original, ensuring a clean fit within the existing control cabinet layout.

Q: What power supply configuration is required?
The KJ3209X1-BA1 draws power from the I/O carrier backplane, which is fed by the DeltaV Power Supply module. No separate field power wiring to the module itself is required. Field-side 24 VDC output power for the connected actuators is sourced through the carrier’s terminal block arrangement, consistent with the original installation.

Q: Can I replace the module while the system is running (hot-swap)?
DeltaV supports online module replacement for I/O modules under certain conditions. Consult your site’s DeltaV system documentation and safety procedures before performing a hot-swap. TOPNLMS recommends coordinating with your DCS engineer to confirm the specific controller firmware version supports online replacement for the KJ3209X1-BA1.

Q: What if I cannot confirm the exact revision of the original module?
The KJ3209X1-BA1 is cross-referenced under part numbers 12P3905X012 and VE4002S2T1B1. All three references correspond to the same hardware revision family. TOPNLMS verifies module compatibility prior to shipment and can provide documentation upon request.

Warranty Assurance

Every KJ3209X1-BA1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment functional inspection to verify output channel integrity, backplane connector condition, and firmware readability. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned module. Our after-sales response target is within 24 hours of claim submission. We maintain a standing inventory of DeltaV I/O modules to support rapid exchange without extended lead times.

For procurement teams managing critical infrastructure, TOPNLMS can provide a test report, product photos, and shipping documentation (including tracking number and commercial invoice) at the time of order confirmation. We ship from Xiamen, China, with DHL, FedEx, and UPS express options available for international destinations. Customs documentation is prepared in compliance with the destination country’s import requirements.

TOPNLMS is committed to supporting industrial facilities that depend on continuous process control. Our inventory of DeltaV spare parts is maintained specifically to serve plant engineers who cannot afford extended downtime waiting for OEM lead times.
