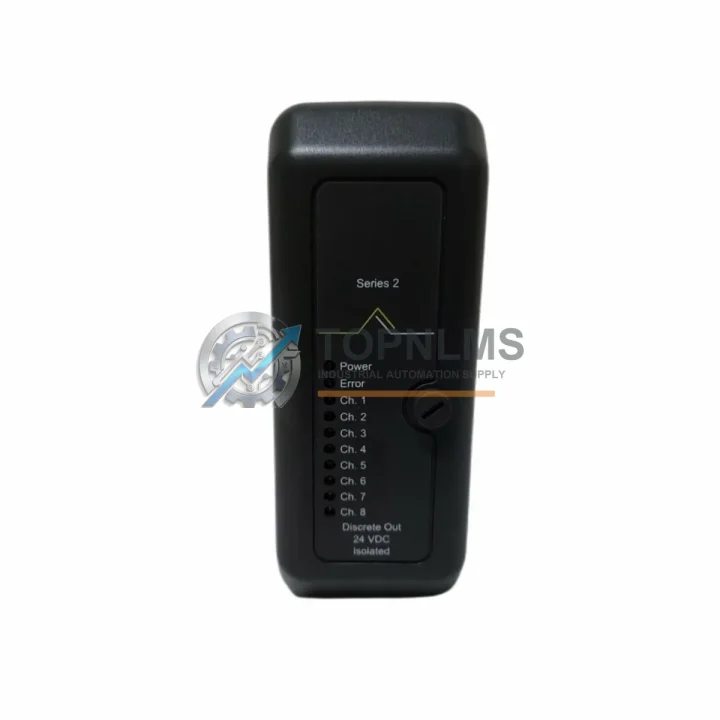

EMERSON KJ3208X1-BA1 Ruggedized Discrete Output Module

Product Overview

EMERSON KJ3208X1-BA1 Ruggedized Discrete Output Module: Industrial Resilience for Harsh Environments

The EMERSON KJ3208X1-BA1 (Part No. 12P3904X022) is a high-reliability discrete output module engineered for the DeltaV distributed control system (DCS) platform. Designed to operate continuously in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the deterministic, fault-tolerant output switching that mission-critical control loops demand. Whether deployed in a redundant DeltaV controller cabinet or integrated into a safety-instrumented system (SIS) architecture, the KJ3208X1-BA1 maintains signal integrity and output reliability where lesser components fail.

Rugged Specifications Table

Comprehensive Protection Solutions

The KJ3208X1-BA1 does not operate in isolation — it is a critical node within a broader EMERSON DeltaV control architecture. In a typical DeltaV cabinet, this discrete output module works in concert with the KJ3221X1-BA1 discrete input module, which reads field-side sensor states, and the KJ2201X1-HA1 analog input module, which handles 4–20 mA process variable signals from transmitters. Together, these I/O modules feed data to the DeltaV MD Plus controller, which executes the control strategy and issues commands back through the output modules.

For installations requiring functional safety compliance (IEC 61511 / IEC 61508), the KJ3208X1-BA1 is frequently paired with the DeltaV SIS logic solver and EMERSON SIS safety output modules to form a complete safety-instrumented system. In such architectures, the discrete output channels drive solenoid valves, motor starters, and emergency shutdown (ESD) relays — all of which depend on the module’s channel isolation and deterministic switching response to execute safe-state actions within the required response time.

Power integrity is equally critical. The DeltaV I/O subsystem is typically powered by EMERSON KJ4001X1-BA1 power supplies or equivalent 24 VDC DIN-rail power supplies with redundant feed capability. Upstream, EMERSON DeltaV redundant power conditioners protect against voltage transients and brownouts common in heavy industrial environments. Communication between the I/O subsystem and the control network relies on the DeltaV CIOC (Controller I/O Card) and standard FOUNDATION Fieldbus H1 or HART communication modules, ensuring that field device diagnostics are surfaced to the operator workstation in real time.

In control cabinets where space and thermal management are priorities, the KJ3208X1-BA1 is mounted on standard DeltaV I/O carrier assemblies alongside terminal blocks and marshalling panels that provide clean, labeled field wiring termination. Surge protection terminal modules — such as those from the Phoenix Contact TERMITRAB or EMERSON equivalent series — are commonly installed in series with the output channels to protect against lightning-induced transients on long cable runs to field actuators.

Application in Critical Infrastructure

The EMERSON KJ3208X1-BA1 is a proven performer across the most demanding sectors of critical infrastructure:

Oil & Gas: In upstream wellhead automation and midstream pipeline compression stations, this module drives ESD solenoids, blowdown valves, and compressor shutdown relays. Its channel isolation prevents a single field fault from cascading into a system-wide trip, and its compliance with IEC 61508 SIL requirements makes it suitable for Safety Integrity Level 2 (SIL 2) applications when integrated within a certified DeltaV SIS architecture.

Power Generation: Thermal and combined-cycle power plants rely on DeltaV DCS platforms for boiler management, turbine control, and balance-of-plant automation. The KJ3208X1-BA1 handles discrete output commands to motorized valves, breaker trip coils, and auxiliary equipment contactors — all in environments characterized by high electromagnetic interference from large rotating machinery and high-voltage switchgear.

Mining & Minerals Processing: In ore processing plants and underground mining operations, control systems face extreme dust ingress, mechanical vibration from crushers and conveyors, and wide ambient temperature swings. The KJ3208X1-BA1’s robust backplane connection and conformal-coated PCB construction ensure reliable operation even when the control room environment is less than ideal.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use DeltaV systems to automate pump sequencing, valve control, and chemical dosing. The module’s 24 VDC output channels are well-matched to the solenoid valves and motor control relays common in these applications, and its low power consumption reduces heat load in sealed NEMA 4X enclosures.

Metallurgy & Steel: In electric arc furnace (EAF) and continuous casting operations, the combination of intense electromagnetic fields, high ambient temperatures, and vibration creates one of the harshest environments for electronic control equipment. The KJ3208X1-BA1’s EMC compliance and thermal design margins make it a reliable choice for auxiliary control functions in these facilities.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, TOPNLMS will arrange a replacement or full refund after fault verification. Claims are initiated by contacting [email protected] with the order number and a description of the fault. Typical claim resolution time is 3–7 business days.

Q2: How is each KJ3208X1-BA1 unit tested before shipment?
Every unit undergoes a pre-shipment functional test that verifies output channel switching, backplane communication integrity, and isolation resistance. Refurbished units additionally receive a full power-on diagnostic cycle using DeltaV test fixtures. A test report is available upon request for quality-critical procurement processes.

Q3: Is the KJ3208X1-BA1 compatible with all DeltaV controller generations?
Yes. The KJ3208X1-BA1 is compatible with DeltaV MD, MD Plus, MQ, and S-series controllers, as well as DeltaV SIS logic solvers, provided the system firmware is at a supported revision level. TOPNLMS technical staff can advise on firmware compatibility for your specific DeltaV system version before purchase.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains a dedicated inventory of EMERSON DeltaV I/O modules, including the KJ3208X1-BA1 and related discrete and analog I/O cards. For MRO (maintenance, repair, and operations) customers requiring scheduled replenishment or emergency spare stock, we offer priority allocation and volume pricing. Contact us to discuss a supply agreement tailored to your plant’s maintenance cycle.
