Emerson KJ3204X1-BA1 Original Industrial Spare DeltaV Compatible: Securing System Stability in Critical Control Environments

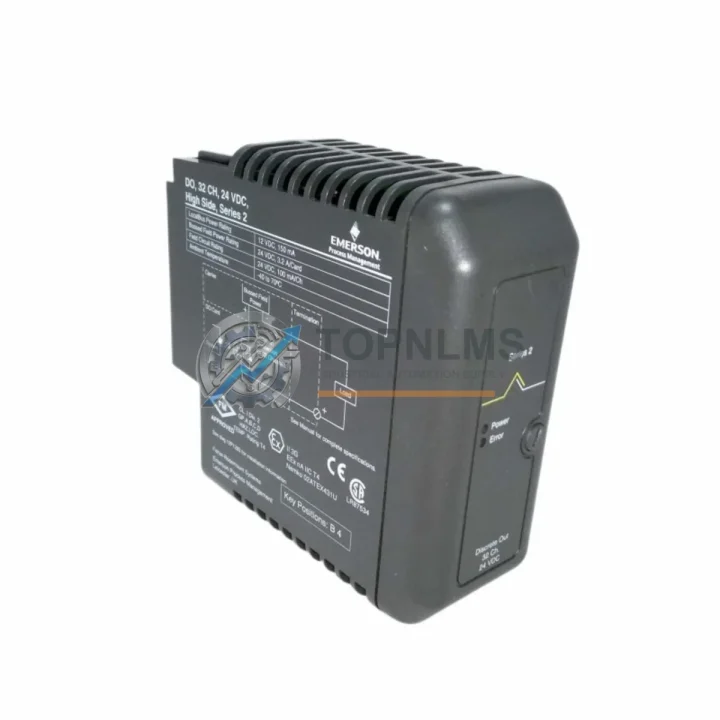

The Emerson KJ3204X1-BA1 (part number 12P3275X032) is an original discrete output module engineered for the Emerson DeltaV distributed control system (DCS). Designed to deliver reliable 24 VDC digital output signals to field devices — including solenoid valves, motor starters, and relay coils — this module is a cornerstone component in process automation cabinets across refining, chemical, power generation, and pharmaceutical industries. Sourcing a genuine, tested replacement unit is the single most effective action a maintenance team can take to eliminate unplanned downtime caused by I/O module degradation.

At TOPNLMS, every KJ3204X1-BA1 unit is individually inspected, functionally tested, and shipped with a 12-month warranty. Stock is maintained to support both emergency breakdown orders and planned preventive maintenance schedules, ensuring your procurement team can act decisively when a module failure is detected during a routine inspection or an unscheduled shutdown.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your DeltaV Control Cabinet

A discrete output module failure rarely occurs in isolation. In a DeltaV control cabinet, the KJ3204X1-BA1 operates within a tightly integrated I/O subsystem where the health of adjacent components directly affects overall system reliability. A disciplined preventive maintenance program should treat the KJ3204X1-BA1 as part of a broader inspection scope rather than a standalone replacement event.

During any scheduled shutdown or cabinet inspection involving this module, maintenance engineers should simultaneously verify the condition of the DeltaV I/O carrier (KJ3204X1-BA1 carrier card) and the DeltaV controller module — such as the KJ2003X1-BA1 MD Plus Controller — since backplane communication faults can mimic discrete output failures and lead to misdiagnosis. The KJ3221X1-BA1 power supply module feeding the I/O bus should also be load-tested; an aging or undersized power supply is a common root cause of intermittent output channel faults that are incorrectly attributed to the DO module itself.

Field wiring integrity is equally critical. Inspect the terminal blocks and marshalling panels connected to the KJ3204X1-BA1 output channels for signs of oxidation, loose terminations, or insulation degradation — particularly in high-humidity or high-vibration environments. If the plant uses signal isolators between the DeltaV output and field devices, verify that the isolator output voltage and current ratings remain within specification; a degraded isolator can cause nuisance trips that appear as module faults in the DeltaV diagnostics.

For plants running legacy DeltaV configurations, the KJ3001X1-BA1 analog input module and KJ3002X1-BA1 analog output module installed in the same cabinet should be included in the inspection cycle. These modules share the same I/O bus architecture and are subject to the same environmental stressors. Proactively stocking one spare unit of each module type — including the KJ3204X1-BA1 discrete output, the KJ3222X1-BA1 discrete input module, and the KJ3203X1-BA1 discrete input/output combination module — reduces mean time to repair (MTTR) from hours to minutes when a fault occurs during production.

Communication health should not be overlooked. If the DeltaV system uses FOUNDATION Fieldbus H1 interface modules or PROFIBUS DP interface cards in the same cabinet, include a communication diagnostic scan in the maintenance checklist. A degraded fieldbus segment can cause the controller to lose visibility of field device status, creating false alarms that complicate the isolation of a genuine discrete output fault. Keeping a spare DeltaV CHARM I/O module or CIOC controller on the shelf is advisable for plants that have migrated to the CHARM architecture.

Finally, review the DeltaV event log for any historical channel fault codes associated with the KJ3204X1-BA1 prior to replacement. Recurring faults on specific channels — particularly channels driving inductive loads such as solenoid valves — may indicate that flyback suppression diodes or surge protection devices on the field side have failed, and replacing the module without addressing the root cause will result in premature failure of the new unit.

Strategic Replacement Solutions: Minimizing Downtime, Preserving System Compatibility

The KJ3204X1-BA1 has been in active production use for over two decades, and many plants operating DeltaV systems installed in the early 2000s are now facing the challenge of sourcing replacement modules as original factory stock becomes increasingly scarce through standard distribution channels. TOPNLMS specializes in bridging this supply gap by maintaining verified inventory of original and new-surplus Emerson DeltaV I/O modules, enabling maintenance teams to execute like-for-like replacements without any software reconfiguration or system re-engineering.

A like-for-like replacement with a genuine KJ3204X1-BA1 is always the preferred strategy because it preserves the existing DeltaV module tag assignments, channel configurations, and alarm setpoints stored in the DeltaV database. There is no need to modify the control strategy, re-download the controller, or recalibrate field devices — the replacement module is recognized automatically by the DeltaV system upon insertion into the carrier, provided the firmware revision is compatible with the installed DeltaV version.

For plants considering a broader I/O modernization, the KJ3204X1-BA1 can coexist with newer DeltaV CHARM discrete output modules within the same DeltaV system, allowing a phased migration approach where aging traditional I/O modules are replaced with CHARM modules over successive maintenance windows without requiring a full system cutover. This strategy significantly reduces capital expenditure and project risk while progressively improving the maintainability and diagnostic capability of the control system.

TOPNLMS ships globally with full export documentation. Lead time for in-stock units is typically 3–7 business days to major industrial hubs. Emergency same-day dispatch is available for critical breakdown situations. All units are packed in anti-static ESD-safe packaging with individual test reports included in the shipment.
