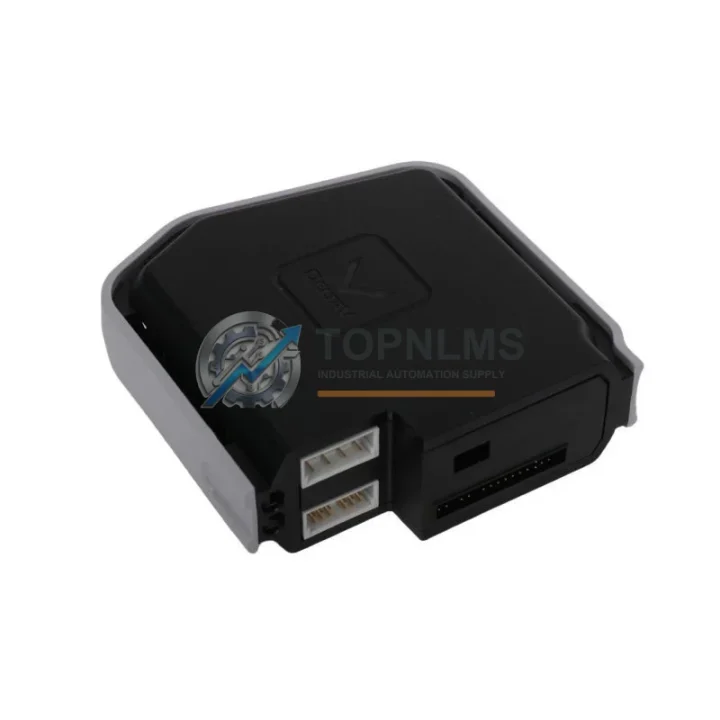

Emerson KJ3203X1-BK1 Original Industrial Spare DeltaV Compatible: System Stability & Maintenance Value

The Emerson KJ3203X1-BK1 is an original 8-channel isolated digital input module designed for the DeltaV distributed control system (DCS). In process industries — including oil & gas, chemical, power generation, and pharmaceuticals — the DeltaV platform is the backbone of continuous production. When a digital input module fails or degrades, the consequences extend far beyond a single I/O point: alarm management collapses, field device status becomes invisible, and operators lose the real-time data they depend on for safe, efficient plant operation. Maintaining a verified spare of the KJ3203X1-BK1 is not optional — it is a fundamental element of any credible maintenance strategy.

This module provides galvanically isolated signal acquisition across 8 discrete input channels, protecting the DeltaV controller from field-side voltage transients, ground loops, and electrical noise common in heavy industrial environments. Its direct compatibility with the DeltaV M-Series and S-Series controller platforms means replacement requires no firmware reconfiguration, no I/O mapping changes, and no extended commissioning — a critical advantage when every minute of downtime carries measurable production cost.

Critical Technical Specs

Preventive Maintenance Strategy

A DeltaV control system is an integrated ecosystem. When scheduling maintenance around the KJ3203X1-BK1, experienced maintenance engineers treat the module replacement as an opportunity to audit the entire I/O subsystem and associated field wiring. Isolating a single channel failure without inspecting adjacent components is a common cause of repeat failures and unplanned shutdowns within weeks of a repair.

During a planned outage involving the KJ3203X1-BK1, the following components should be inspected or replaced as part of a comprehensive maintenance cycle:

I/O Carrier and Backplane: The KJ3203X1-BK1 seats into a DeltaV I/O carrier (such as the KJ3201X1-BA1 or equivalent carrier assembly). Carrier contacts corrode over time in humid or chemically aggressive environments. If the module has failed due to intermittent contact, the carrier itself may need replacement — installing a new DI module into a degraded carrier will reproduce the fault.

Power Supply Module: DeltaV I/O subsystems are powered by dedicated power supply modules (e.g., KJ1501X1-BG2 or similar PS modules). A marginal power supply delivering low or noisy 24 VDC will cause erratic digital input behavior that mimics module failure. Verify output voltage and ripple before condemning the KJ3203X1-BK1.

Digital Output Modules: In interlock and safety circuits, digital inputs and digital output modules (such as the KJ3221X1-BK1 DO module) operate as paired components. A field device that is not responding to commands may have a failed DO module rather than a failed DI module — both should be tested during the same maintenance window.

Marshalling Cabinet Terminal Blocks and Wiring: Loose or corroded terminal connections on the marshalling side are a leading cause of spurious digital input signals. During KJ3203X1-BK1 replacement, inspect all field wiring terminations, tighten terminal screws to torque specification, and replace any discolored or brittle wire insulation. DIN-rail mounted terminal blocks and fuse terminal assemblies in the same cabinet should be checked simultaneously.

Communication and Controller Modules: If multiple I/O modules are reporting faults simultaneously, the issue may originate upstream at the DeltaV controller module (e.g., MD Plus Controller or MD Controller) or the I/O bus interface. Inspect controller module status LEDs and review DeltaV diagnostics for bus error counts before replacing individual I/O modules.

Signal Isolators and Barriers: In hazardous area installations, Zener barriers or galvanic isolators sit between field instruments and the DeltaV I/O. A failed isolator will present as a failed digital input channel. Verify isolator output signals with a multimeter before replacing the KJ3203X1-BK1 in Ex-zone applications.

Fuse Modules: Many DeltaV marshalling cabinets use modular fuse assemblies to protect individual field circuits. A blown fuse on a digital input circuit will appear as a de-energized input — always check fuse continuity as the first diagnostic step before pulling the I/O module.

Maintaining a stocked spare of the KJ3203X1-BK1 alongside one or two of the above components — particularly the I/O carrier, a power supply module, and a matched digital output module — gives maintenance teams the ability to resolve the majority of DeltaV I/O faults within a single shift, without waiting for emergency procurement.

Strategic Replacement Solutions

The KJ3203X1-BK1 has been in service in DeltaV installations commissioned from the late 1990s through the 2010s. Many of these systems remain in production with no near-term plans for migration to newer DeltaV hardware generations. Emerson’s DeltaV platform is designed for long-term backward compatibility, and the KJ3203X1-BK1 continues to be the correct replacement module for legacy M-Series I/O subsystems — there is no need to upgrade the controller or re-engineer the I/O architecture simply because a module has failed.

For plants managing aging DeltaV infrastructure, the strategic approach is to identify all installed KJ3203X1-BK1 modules across the facility, assess their service hours and environmental exposure, and establish a rolling replacement schedule that prioritizes modules in high-vibration, high-humidity, or chemically aggressive locations. Replacing modules proactively — before failure — eliminates the emergency procurement premium and the production loss associated with unplanned downtime.

TOPNLMS supplies the KJ3203X1-BK1 as an original, tested spare. Each unit undergoes functional verification prior to shipment. Our inventory is sourced from authorized channels and long-term surplus stock, ensuring authenticity and traceability. We support single-unit emergency orders and bulk procurement for maintenance inventory programs, with competitive lead times and consolidated shipping for multi-line orders.
