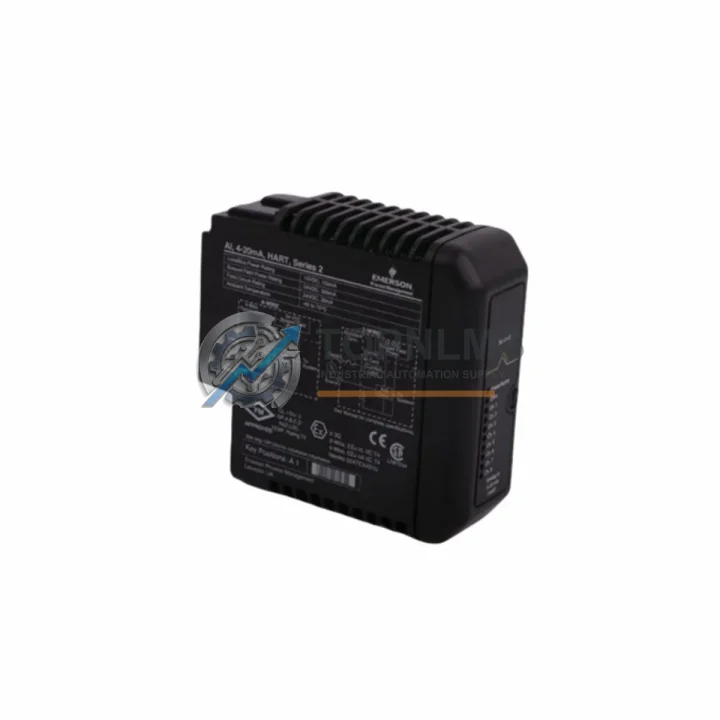

Emerson KJ3203X1-BA2 Ruggedized HART Analog Input Module

Product Overview

Emerson KJ3203X1-BA2 Ruggedized HART Analog Input Module: Industrial Resilience for Harsh Environments

The Emerson KJ3203X1-BA2 is an 8-channel HART-enabled analog input module engineered for the DeltaV S-Series distributed control system. Designed to operate continuously in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the signal integrity and uptime reliability that mission-critical operations demand.

Built on Emerson’s proven DeltaV architecture, the KJ3203X1-BA2 supports full HART communication on all eight channels simultaneously, enabling real-time diagnostics, device configuration, and predictive maintenance without interrupting the primary 4–20 mA process signal. This dual-layer communication capability is essential in facilities where unplanned shutdowns carry significant safety and financial consequences.

In environments where electromagnetic interference (EMI) from variable frequency drives, large motor starters, and high-voltage switchgear is a constant threat, the KJ3203X1-BA2’s shielded signal conditioning circuitry maintains measurement accuracy within specification. Its robust backplane connector and conformal-coated PCB provide additional protection against corrosive atmospheres and condensation — conditions routinely encountered in chemical processing, offshore platforms, and pulp-and-paper facilities.

Rugged Specifications Table

Comprehensive Protection Solutions

The KJ3203X1-BA2 does not operate in isolation — it is a cornerstone component within a broader DeltaV control architecture. In a typical S-Series control cabinet, it works alongside the KJ2201X1-BA1 DeltaV Controller, which orchestrates logic execution and communicates process data upstream to the DCS historian. Field instruments transmit 4–20 mA signals through the KJ3203X1-BA2 into the controller, where safety interlocks and regulatory control loops are executed in real time.

For analog output functions — closing the loop on control valves and positioners — the KJ3002X1-BA1 8-Channel Analog Output Module pairs directly with the KJ3203X1-BA2 on the same carrier, sharing backplane power and communication resources. On discrete I/O-intensive applications such as motor control centers and pump stations, the KJ1501X1-BA2 8-Channel Digital Input Module and KJ1502X1-BA2 8-Channel Digital Output Module complement the analog input module within the same chassis.

Where PROFIBUS DP or FOUNDATION Fieldbus H1 field networks are deployed, the KJ3221X1-BA1 FOUNDATION Fieldbus H1 Interface Module integrates seamlessly into the same S-Series carrier alongside the KJ3203X1-BA2, enabling a hybrid wired-fieldbus architecture without additional gateway hardware. For safety-instrumented systems operating under IEC 61511, the DeltaV SIS Logic Solver and associated SIS I/O modules can be co-located in the same control room enclosure, sharing the same engineering workstation and DeltaV configuration database.

Power integrity is maintained by Emerson KJ4001X1-BA1 Power Supplies, which provide redundant 24 VDC rail power to the S-Series carriers. Surge and transient protection at the field terminal level is handled by MTL or Pepperl+Fuchs Zener barriers and galvanic isolators, which are commonly specified alongside the KJ3203X1-BA2 in hazardous-area installations classified as Zone 1 or Zone 2 under IEC 60079. Terminal modules and marshalling panels complete the wiring infrastructure, ensuring clean, labeled, and maintainable field connections throughout the control cabinet.

Application in Critical Infrastructure

In upstream oil and gas production facilities, the KJ3203X1-BA2 monitors pressure transmitters, flow meters, and temperature sensors across wellhead manifolds and separator trains. Its HART diagnostic capability allows operators to detect sensor drift, loop failures, and valve stiction without dispatching field technicians to remote or hazardous locations — a critical advantage in offshore platforms and arctic production sites where personnel access is restricted.

In thermal and hydroelectric power generation, the module interfaces with turbine inlet temperature arrays, boiler drum level transmitters, and feedwater flow instrumentation. The ability to read HART device variables alongside the primary process variable enables condition-based maintenance programs that reduce forced outages and extend equipment service intervals.

Municipal and industrial water and wastewater treatment plants rely on the KJ3203X1-BA2 to monitor dissolved oxygen, pH, turbidity, and flow across multiple treatment stages. Its resistance to high-humidity environments and corrosive chemical atmospheres — common in chlorination and ozone treatment areas — makes it a preferred choice over general-purpose analog input cards.

In mining and mineral processing, where vibration from crushers, conveyors, and ball mills is constant, the module’s IEC 60068-2-6 vibration compliance ensures signal integrity is maintained without false readings or module resets. Metallurgical plants processing aluminum, copper, and steel rely on the KJ3203X1-BA2 in furnace temperature control loops, where measurement accuracy directly impacts product quality and energy efficiency.

Chemical and petrochemical facilities operating under ATEX or NEC hazardous area classifications deploy the KJ3203X1-BA2 in conjunction with certified intrinsic safety barriers, enabling safe measurement of process variables in flammable or explosive atmospheres without compromising the DeltaV system’s SIL 2 integrity rating.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, contact [email protected] with your order number and a description of the fault. We will arrange return shipping, conduct a failure analysis, and dispatch a replacement or issue a refund within an agreed timeframe.

Q2: How is each KJ3203X1-BA2 tested before shipment?
Every unit undergoes a multi-point pre-shipment inspection that includes visual examination for physical damage, backplane connector integrity check, power-on functional test, and HART communication verification across all eight channels. Units that do not pass all test criteria are quarantined and not dispatched. A test report is available upon request for customers with quality management system requirements.

Q3: Is the KJ3203X1-BA2 compatible with all DeltaV S-Series carriers and controllers?
Yes. The KJ3203X1-BA2 is compatible with all standard DeltaV S-Series 2-wide, 4-wide, and 8-wide carriers and is supported by DeltaV controller firmware versions 10.3 and above. It is not compatible with DeltaV M-Series or MD-Series hardware. If you are integrating this module into an existing DeltaV system, please provide your controller model and firmware version when inquiring, and our technical team will confirm compatibility.

Q4: Can you support long-term or repeat supply of the KJ3203X1-BA2 for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand DeltaV S-Series modules to support planned maintenance shutdowns, emergency spare requirements, and multi-year supply agreements. We can provide lead-time commitments, reserved stock arrangements, and consolidated shipments for customers managing large DeltaV installed bases. Contact us to discuss a supply framework tailored to your maintenance schedule.
