Emerson KJ3201X1-BK1 Ruggedized Digital Input Module: Industrial Resilience for Harsh Environments

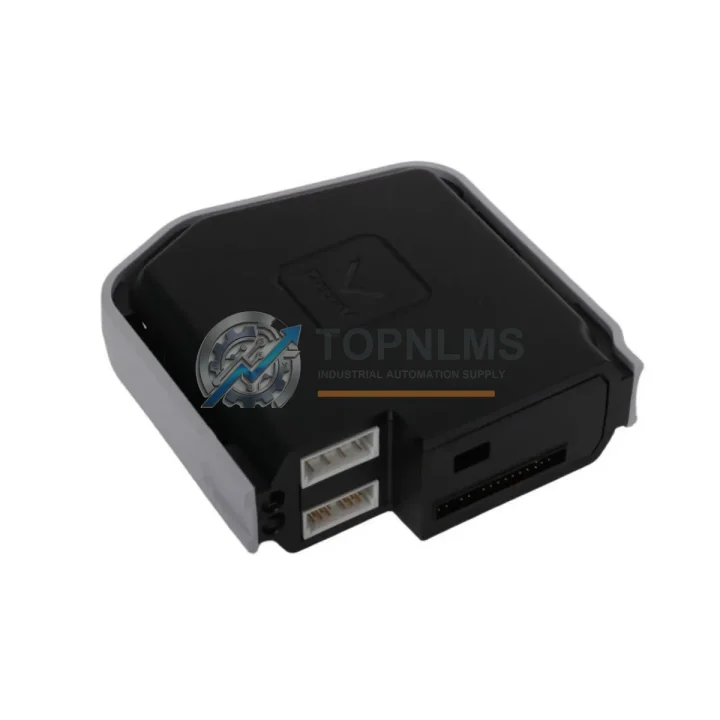

The Emerson KJ3201X1-BK1 (part number 12P4692X042, SKU: KJ3201X1-BK1 12P4692X042 SE4001S2T1B1) is an 8-channel digital input module engineered for the Emerson DeltaV Distributed Control System (DCS). Designed to operate reliably in the most demanding industrial environments — including high-temperature process plants, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers the signal integrity and system stability that mission-critical automation demands.

In continuous production environments where downtime is measured in tens of thousands of dollars per hour, the KJ3201X1-BK1 provides the deterministic digital input acquisition that DeltaV controllers depend on. Its robust hardware design ensures stable 24 VDC discrete signal reading even under electromagnetic interference (EMI) from variable frequency drives (VFDs), large motor starters, and high-current bus systems commonly found in petrochemical, power generation, and metallurgical facilities.

As a direct-fit replacement for aging DeltaV I/O infrastructure, the KJ3201X1-BK1 supports hot-swap capability within the DeltaV I/O subsystem, minimizing planned maintenance windows and eliminating the need for full system shutdowns during module replacement. This makes it an essential spare part for any facility running Emerson DeltaV Series controllers, including the MD, MD Plus, and S-series controller platforms.

Rugged Specifications Table

Comprehensive Protection Solutions

The KJ3201X1-BK1 does not operate in isolation — it is a critical node within a broader DeltaV control architecture. In a typical DeltaV control cabinet, this digital input module works in concert with the Emerson KJ3002X1-BA1 Digital Output Module to form a complete discrete I/O pair, enabling closed-loop control of field devices such as solenoid valves, motor contactors, and safety interlocks. Alongside the Emerson KJ3221X1-BA1 Analog Input Module, it provides the DeltaV controller with both discrete status signals and continuous process variable data from field transmitters.

For power distribution within the control cabinet, the Emerson KJ4001X1-BA1 DeltaV Power Supply Module provides the regulated 24 VDC rail that feeds the I/O subsystem, ensuring that voltage fluctuations from the facility power grid do not propagate into the I/O bus. In high-EMI environments — such as those near large VFDs or medium-voltage switchgear — the Emerson KJ1501X1-BA1 DeltaV Controller Carrier provides the structural and electrical isolation that keeps the backplane signal clean.

Safety-critical applications in oil and gas or chemical processing often pair the KJ3201X1-BK1 with Emerson DeltaV SIS Safety Logic Solver modules (such as the KJ3221X1-BA1 series in SIL-rated configurations) to create a layered protection architecture. Communication integrity across the DeltaV network is maintained by the Emerson KJ2005X1-BA1 DeltaV Ethernet I/O Interface, which bridges the I/O subsystem to the DeltaV control network without introducing latency that could compromise real-time control loops.

For terminal connectivity in the field junction box or marshalling cabinet, Emerson DeltaV CHARM I/O Cards and associated terminal blocks provide the physical interface between field wiring and the DeltaV I/O bus, complementing the KJ3201X1-BK1’s role in the main control room cabinet. In facilities where legacy Emerson PROVOX or RS3 systems are being migrated to DeltaV, the KJ3201X1-BK1 serves as a direct-fit I/O replacement that preserves existing field wiring investments while upgrading control system capability.

Application in Critical Infrastructure

The Emerson KJ3201X1-BK1 is deployed across the full spectrum of process industries where continuous, uninterrupted operation is non-negotiable.

In oil and gas upstream and midstream facilities — including wellhead control panels, gas compression stations, and pipeline SCADA nodes — the KJ3201X1-BK1 monitors discrete inputs from pressure switches, flow switches, emergency shutdown (ESD) valve position feedback, and fire and gas detector relay outputs. Its ability to maintain signal integrity in the presence of high-frequency EMI from variable speed compressor drives makes it a preferred choice for offshore platform control rooms and onshore gas processing plants.

In coal-fired and combined-cycle power generation plants, the module handles digital status inputs from turbine protection systems, boiler safety interlocks, and auxiliary equipment monitoring circuits. The deterministic scan rate of the DeltaV I/O subsystem ensures that trip signals are processed within the required response time for turbine protection applications.

In municipal and industrial water treatment facilities, the KJ3201X1-BK1 monitors pump run/fail status, valve open/closed confirmation, and level switch inputs across multiple treatment stages. Its wide operating temperature range accommodates both climate-controlled pump stations and outdoor-rated control enclosures in tropical or arid climates.

In metallurgical and steel production facilities, where ambient temperatures near furnaces and casting lines can challenge standard industrial electronics, the module’s thermal design margin provides the reliability buffer needed for 24/7 continuous casting operations. Mining operations similarly rely on the KJ3201X1-BK1 for conveyor belt status monitoring, crusher interlock feedback, and ventilation system control in underground and surface mining environments.

In pharmaceutical and fine chemical manufacturing, where regulatory compliance (FDA 21 CFR Part 11, GAMP 5) demands validated, traceable control system components, the KJ3201X1-BK1’s status as a genuine Emerson DeltaV component supports audit trail integrity and change management documentation requirements.
