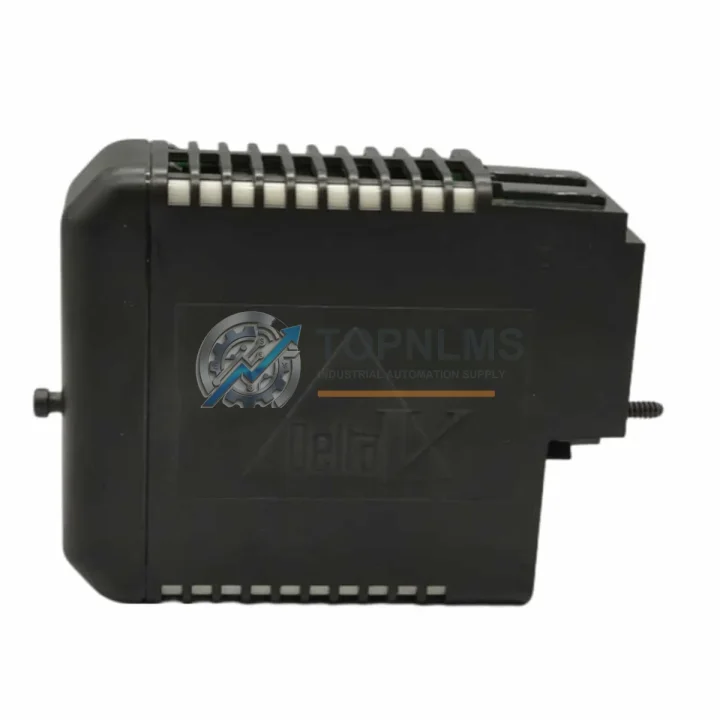

Emerson KJ3002X1-BG2 12P1731X082 Replacement for DeltaV

Product Overview

Emerson KJ3002X1-BG2 12P1731X082 Replacement for DeltaV: Seamless TC Input Migration

The Emerson KJ3002X1-BG2 12P1731X082 is a Thermocouple (TC) Input Module designed for the DeltaV distributed control system platform. As legacy DeltaV installations age and original spare inventories are depleted, plant engineers and procurement teams face increasing pressure to source verified replacement modules that maintain full compatibility with existing marshalling cabinets, field wiring, and DeltaV controller communication architecture. This product page is dedicated to supporting that migration and replacement process with accurate technical context, procurement assurance, and a 12-month warranty.

Whether your facility is running a DeltaV S-series or M-series controller chassis, the KJ3002X1-BG2 12P1731X082 slots directly into the existing I/O subsystem without requiring changes to the DeltaV configuration database, provided the module type and channel count match the original installation. The module communicates over the DeltaV I/O bus and is recognized by DeltaV Operate and DeltaV Explorer without firmware re-flashing in most standard replacement scenarios. This dramatically reduces commissioning time and minimizes process downtime during a hot-swap or planned maintenance window.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DeltaV TC input module replacement rarely involves a single component. In practice, plant engineers replacing the KJ3002X1-BG2 12P1731X082 are simultaneously reviewing the health of adjacent modules and subsystem components to avoid repeat outages. The following components are commonly evaluated or replaced as part of the same migration scope:

The KJ3001X1-BA1 DeltaV AI Analog Input Module is frequently replaced alongside TC input modules when a DeltaV I/O subsystem is being refurbished, as both share the same carrier and marshalling infrastructure. Similarly, the KJ3221X1-BA1 DeltaV DO Digital Output Module is often included in the same purchase order when a control cabinet is being upgraded to reduce future maintenance windows.

For facilities migrating from older DeltaV S-series to M-series architecture, the KJ2003X1-BA1 DeltaV Controller Card is a common co-replacement item, as the controller firmware version directly affects I/O module recognition and channel configuration. The KJ4001X1-BA1 DeltaV Power Supply Module is also routinely inspected during TC input replacements, since power quality on the I/O bus directly impacts thermocouple signal accuracy and cold junction compensation performance.

On the field wiring side, engineers replacing TC input modules often upgrade the associated DeltaV Marshalling Terminal Blocks (MTB) and signal isolators to eliminate ground loop interference that can corrupt thermocouple readings. Where HART-enabled field instruments are present in the same loop, the KJ3002X1-BG1 HART-enabled TC Input Module may be evaluated as an upgrade path over the standard BG2 revision.

For sites running DeltaV with Profibus DP or FOUNDATION Fieldbus segments, the KJ3243X1-BA1 DeltaV Fieldbus Interface Module and KJ3224X1-BA1 Profibus DP Interface Card are commonly reviewed during the same system audit, ensuring that the communication backbone supporting the TC input subsystem is equally current. Finally, where the DeltaV workstation or engineering station is being refreshed, the DeltaV USB Programming and Diagnostic Cable is a standard procurement item to support on-site module configuration and loop testing after installation.

Retrofit Guidance FAQ

Q: Can I replace the KJ3002X1-BG2 12P1731X082 without modifying my DeltaV configuration?
A: In most cases, yes. If the replacement module is the same type (TC Input, same channel count) and is installed in the same carrier slot, DeltaV will recognize it automatically upon power-up. No changes to the DeltaV configuration database or control module assignments are required for a like-for-like swap.

Q: Is the field wiring compatible — do I need to re-terminate any cables?
A: No re-termination is required. The KJ3002X1-BG2 12P1731X082 uses the standard DeltaV marshalling terminal block interface. Existing thermocouple extension cables and compensating cables connect to the same terminal positions as the outgoing module.

Q: Which thermocouple types does this module support?
A: The module supports standard IEC thermocouple types including J, K, T, E, R, S, and B. Cold junction compensation is performed internally. Channel-by-channel TC type configuration is managed through DeltaV Explorer.

Q: What DeltaV software versions are compatible?
A: The module is compatible with DeltaV v11 through v14 and later. For sites running DeltaV v10 or earlier, a firmware compatibility check is recommended before installation. Contact our technical team for version-specific guidance.

Q: How much physical space does the replacement require in the control cabinet?
A: The KJ3002X1-BG2 12P1731X082 occupies the same single-slot position on the DeltaV I/O carrier as the original module. No additional cabinet space, DIN rail modification, or enclosure re-engineering is required.

Q: Can this module be hot-swapped during live plant operation?
A: DeltaV supports I/O module hot-swap under certain conditions. The carrier must support hot-swap capability, and the DeltaV controller must be in the appropriate operating state. We recommend consulting your DeltaV system documentation and coordinating with your DCS engineer before performing a live swap on a critical process loop.

Q: What communication protocol does this module use?
A: The module communicates exclusively over the proprietary DeltaV I/O bus. It does not require Profibus, FOUNDATION Fieldbus, or Ethernet configuration. All communication is managed transparently by the DeltaV controller.

Warranty Assurance

Every KJ3002X1-BG2 12P1731X082 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment functional inspection to verify physical integrity, connector condition, and basic electrical continuity. Units that do not pass inspection are not shipped.

In the event of a confirmed module defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a credit, subject to return inspection. Our after-sales response target is within 24 business hours of a warranty claim submission. We maintain a standing inventory of DeltaV I/O modules to support rapid replacement dispatch, minimizing the impact of any warranty event on your plant operations.

For procurement teams requiring documentation, we can provide a packing list, commercial invoice, and certificate of conformance upon request. Expedited shipping options are available for urgent replacement requirements. All units are packaged in anti-static protective packaging suitable for international air freight.

For stock availability, lead time confirmation, or technical pre-sales questions, contact our team directly:

📧 [email protected] | 📞 +86 18359293191
